Home > Manufacturing & Processing Machinery > Casting & Forging > Cold Forging > Hydraulic Thread Rolling Machine Screw Manufacture Machine TB-3S

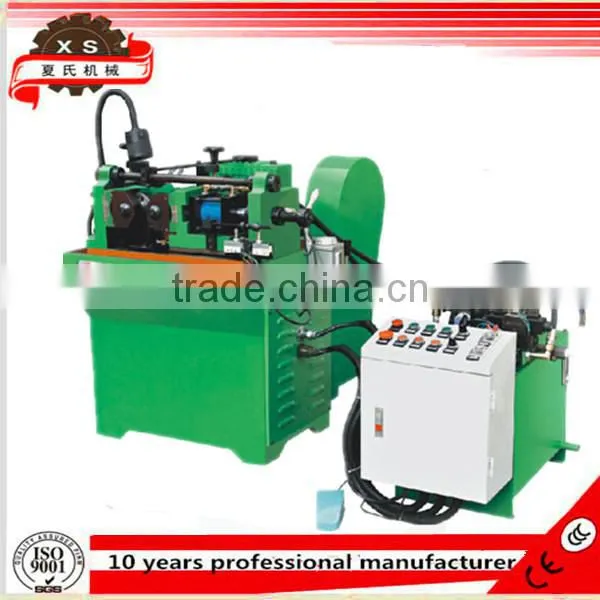

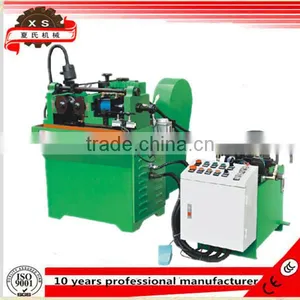

Hydraulic Thread Rolling Machine Screw Manufacture Machine TB-3S
US$ 500 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
bars,solid pipe,solid tube
Production Capacity:
100%
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Wire Rolling Machine Screw Rolling Machinery Thread RollerUS$ 100 - 1,000MOQ: 1 Set -
Anchor Bolts Manufacturing Machine Thread Rolling Machine TB-20US$ 100 - 1,000MOQ: 1 Set
-
High Efficiency Hydraulic Full Automatic Two Rollers Rolling MachineUS$ 1,000 - 50,000MOQ: 1 Set
-
Excellent Quality Two Rollers Thread Rolling Machine Price TB-30SUS$ 3,000 - 4,000MOQ: 1 Set
-
Professional Factory Small Gear Hobbing Machine Price Y3608US$ 1,000 - 10,000MOQ: 1 Set
Condition
New
Application
bars,solid pipe,solid tube
Production Capacity
100%
Place of Origin
Yunnan, China
Brand Name
XIASHI
Model Number
TB-3TGT
Voltage
380V
Power(W)
2205W
Dimension(L*W*H)
1330*1120*1050mm
Weight
540KG
Certification
ISO 9001-2008, CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
hydraulic thread rolling machine screw manufacture machine TB-3S
Advantages:
1.Fixed or rolling -through mode for your option.
2.Adopt hydraulic driving for slide plate, no defection for workpiece due to strong force of hydraulic driving.
3.Equipped with wear-resistence alloy worm gear so that the machine can work quietly.
4.It is easy to operate, save time and cost.
Technical Parameter of Tobest TB-3S
| Work piece diameter | φ2-φ14/mm | ||||||
| Range of pitch rolled | 0.4-2.0P | ||||||
| length of thread rolled | Fixed and rolling through for option | ||||||
| Spindle speed | 27rpm | ||||||
| Outside diameter of rolling die | φ100mm | ||||||
| Inside diameter of rolling die | φ50.5mm | ||||||
| Thickness of rolling die | 30mm | ||||||
| Min.center distance between die spindles | 100mm | ||||||
| Max.center distance between die spindles | 135mm | ||||||
| Machine motor | 3HP | ||||||
| Center distance from the lathe bed to rolling die | 85mm | ||||||
| Supply voltage | 380 | ||||||
| Weight(reference) | 540(KG) | ||||||
| package Dimension(L*W*H) | 1400*1500*1200 | ||||||
| Dimension(L*W*H) | 1330*1120*1050 | ||||||
| Bearing brand | NSK,UBC | ||||||
| Certification | ISO 9001-2008, CE | ||||||
| Application | bars,solid pipe,solid tube | ||||||
| Brand Name | Tobest | ||||||
| Color | green(or according to your need) | ||||||
| Warranty | 12 months |
Products display:
