Features
The gear shaping machine is used to make gear that diameter is below 500mm
Notification will not be made if the products' colour and parameter change,and product is based solel
on latest sales sample.
Y5150K Gear Shaping Machine is designed for cutting cylindrical disc-type spur gear, cluster gear,
internal gear, external gear, and gear segment.
Upon special request, the machine can be provided with optional attachments for cutting gear rack,
shaft gear, helical gear and little tapered gear.
The machine is featured in smooth running .low noise, versatile function, nice adaptability, easy set-u
and simple operation.
Thus being well-suited for mass batch production of rears adopted on automobile tractors.
The machine can also be used for small batch and job-lot gear production.
Specification
Max work piece dia. external gear mm 500
Max work piece dia. internal gear mm 600
Max module mm 8
Max stroke length of cutterspindle mm120
Max width of teeth mm 100
Distance from cutter center to worktable center mm 0-320
Dia. of work table face mm 380
Dia. of work table bore mm 80rpm
Rough:80, 108, 144,192, 240, 320, 386,515rpm
Precise:108, 165,
192, 292, 320 480,
515, 780
Circular feed (cutter dia. is
100mm)
mm 10.-0.56
Cutter spindle back-off at its
up-most position
0.4-0.5
Drive motor power Kw 15
Overall dimensions (L x W xH) mm 2120X1475X2275
Net Weight 5000kg
Gross Weight 6000kg

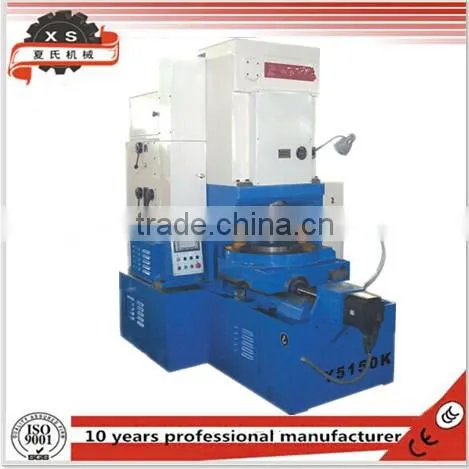

Picture for your reference
