Home > Manufacturing & Processing Machinery > Casting & Forging > Cold Forging > High Speed Automatic Rebar Thread Rolling Machine TB-20S
High Speed Automatic Rebar Thread Rolling Machine TB-20S
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Process Threads
Production Capacity:
400sets
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pipe Threading Machine Thread Rolling Machine Thread Making Machine TB-30SNegotiableMOQ: 1 Set -
Y3150K Gear Hobbing Machine for Worm GearNegotiableMOQ: 1 Set
-
TB-20 Thread Roller Thread Rolling Machine for Metal Steel IronUS$ 1,000 - 100,000MOQ: 1 Set
-
Roll Forming Machine Thread Forming Screws Threading MachineUS$ 100 - 10,000MOQ: 1 Set
-
Anchor Bolt Making Machine Concrete Iron Rod Machine TB-3TGTUS$ 500 - 50,000MOQ: 1 Set
Condition
New
Application
Process Threads
Production Capacity
400sets
Place of Origin
Guangxi, China
Model Number
TB-20S
Voltage
380V/220V
Power(W)
3HP
Dimension(L*W*H)
1000x1000x1200mm
Weight
700kg
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

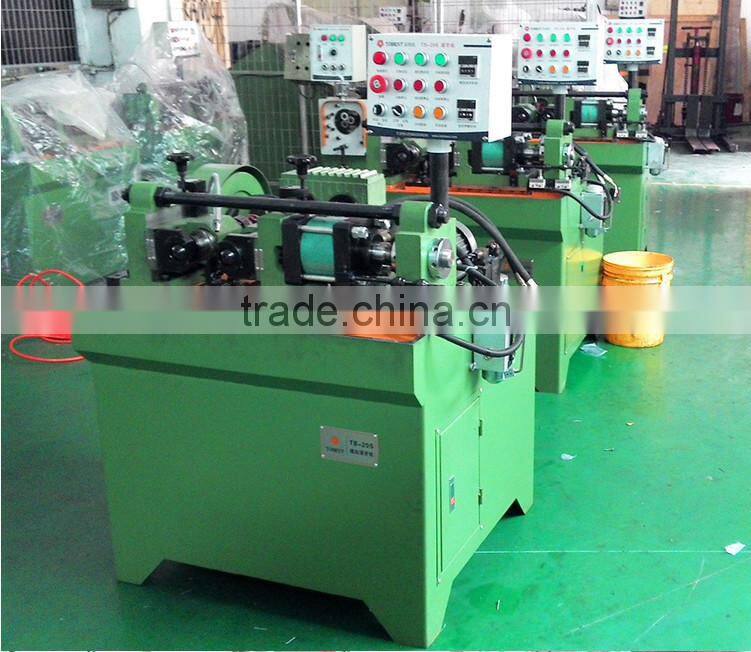

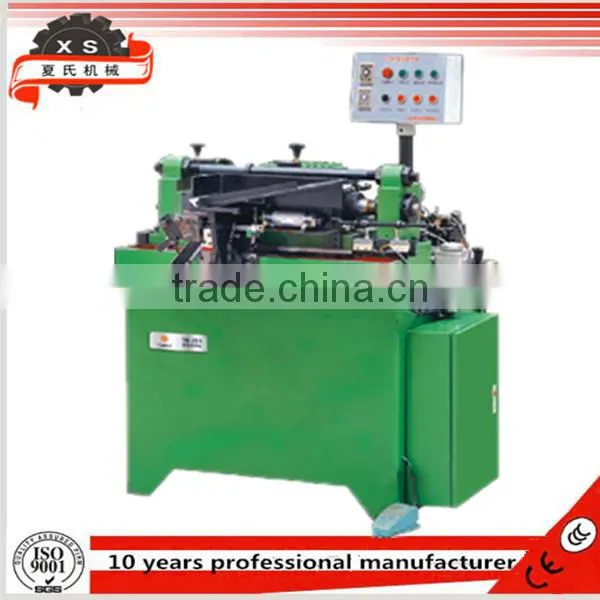

high speed automatic rebar thread rolling machine TB-20S
Product Description
Features:
2.Hydraulic driving for tool-forward slide plate, the positioning is accurate.
3.Suitable for the workpieces with small pitch and long length.
4.Adopt high-strength square-rail type design, and the rail is imposed with heat treatment and grinding to improve the stability.
| Work piece diameter | φ6-φ25/mm | |||||||
| Range of pitch rolled | 0.4-2.5P | |||||||
| length of thread rolled | Fixed and rolling-through for option | |||||||
| Spindle speed | 27rpm | |||||||
| Outside diameter of rolling die | φ100mm-φ118mm | |||||||
| Inside diameter of rolling die(keyway) | φ50.5mm | |||||||
| Thickness of rolling die | 50mm | |||||||
| Min.center distance between die spindles | 100mm | |||||||
| Max.center distance between die spindles | 135mm | |||||||
| Machine motor | 3HP | |||||||
| hydraulic motor | 2HP | |||||||
| Max.rolling pressure | 10T | |||||||
| Supply voltage | 380 | |||||||
| Weight(reference) | 700(KG) | |||||||
| package Dimension(L*W*H) | 1100*1100*1300 | |||||||
| Dimension(L*W*H) | 1000*1000*1200 | |||||||
| Bearing brand | NSK,UBC | |||||||
| Certification | ISO 9001-2008, CE | |||||||
| Application | bars,solid pipe,solid tube | |||||||
| Brand Name | Tobest | |||||||
| Color | green(or according to your need) | |||||||
| Warranty | 12 months | |||||||

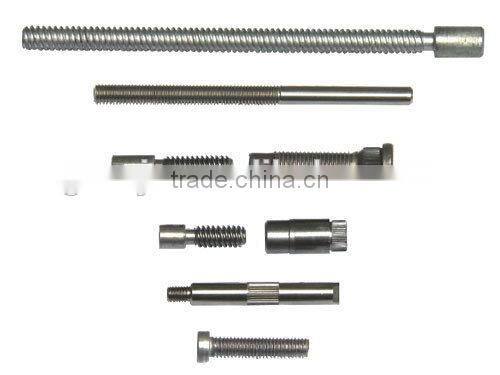

Detailed pictures for your reference
Our Services
Services
- Professional advice and rich experience help to choose machine.
- Customized service: Technical team design and produce the customized machine.
- Maunal book, tool cabinet are provided with machine.
- If necessary, technicist will be in charge of machine installation in your country.
- After-sale service: 1 year warranty, technical support, lifelong maintenance
Packaging & Shipping
We will pack the machine with standard export wooden case ,ensure the transport safety
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
A: warranty is one year, but we will offer lifetime service for machine.
