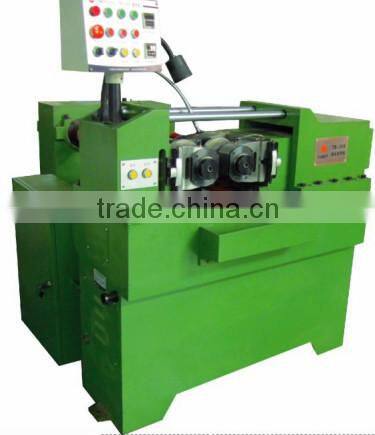

Help CenterPipe Threading Machine Thread Rolling Machine Thread Making Machine TB-30S
Related Products
-
Y3150K Gear Hobbing Machine for Worm GearNegotiableMOQ: 1 Set -
TB-20 Thread Roller Thread Rolling Machine for Metal Steel IronUS$ 1,000 - 100,000MOQ: 1 Set
-
Roll Forming Machine Thread Forming Screws Threading MachineUS$ 100 - 10,000MOQ: 1 Set
-
Anchor Bolt Making Machine Concrete Iron Rod Machine TB-3TGTUS$ 500 - 50,000MOQ: 1 Set
-
TB-40S Manufacture Rebar Thread Rolling Machine Threaded Rods Making MachineUS$ 800 - 1,000MOQ: 1 Set
Advantages
1.Spindle with double row needle roller bearings and cylindrical roller bearings combined to ensure the accuracy and stiffness requirements spindle
2. Transmission system using multi-polar spindle gear box, to achieve smooth transmission, shifting easily
3. Hydraulic system uses modular valves, small footprint, beautiful appearance, stable performance, ease of use and maintenance
4. Machine control system can easily choose manual, semi-automatic, automatic three ways to adjust working hours, using new digital dial code directly controlled roller system time and pause time
| Work piece diameter | φ4-φ50/mm | ||||||
| Range of pitch rolled | 1.0-3.5P | ||||||
| Max.length of thread rolled | Fixed and rolling-through for option | ||||||
| Spindle speed | 16/25/40/63rpm | ||||||
| Outside diameter of rolling die | φ115mm-φ175mm | ||||||
| Inside diameter of rolling die | φ54mm | ||||||
| Thickness of rolling die | 120mm | ||||||
| Min.Distance between die spindles | 110mm | ||||||
| Max.Distance between die spindles | 230mm | ||||||
| Output(pcs/min) | 4-20 pcs/min | ||||||
| Machine motor | 5.5HP(4042W) | ||||||
| Hydraulic motor | 2HP | ||||||
| Max. feed pressure | 12.5T |
Detailed pictures for your reference
Services
- Professional advice and rich experience help to choose machine.
- Customized service: Technical team design and produce the customized machine.
- Maunal book, tool cabinet are provided with machine.
- If necessary, technicist will be in charge of machine installation in your country.
- After-sale service: 1 year warranty, technical support, lifelong maintenance.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
