Home > Products > Boring machine > HCTX6511X2/13 double head CNC horizontal boring machine

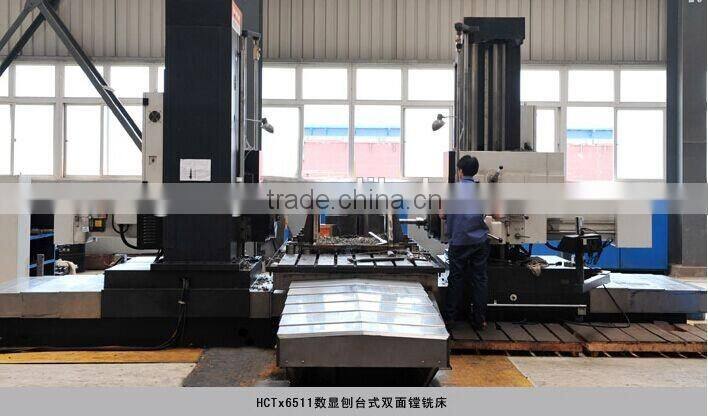

HCTX6511X2/13 double head CNC horizontal boring machine
- 300 Set / Sets per Month
- SHENZHEN
- T/T D/P D/A Credit Card
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Guangxi, China |
Brand Name: | xiashi | Model Number: | HCTX6511X2/13 | Weight: | 4400kg |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
HCTK6511x2/13
Worktable size(LxW): 4000x1400mm
Distance from spindle center to table: 345-1545mm
Overview
With planer workbench, this machine adopts double sided power column frame structure form.
It can achieve high feed processing and use herringbone guideway cover made especially
suitable for basic big pieces of large and medium sizes and weights, the drills of many parts
such as board pieces, disk parts, shell parts, mould and so on,processing of diffuser, hinge,
boring hole, and milling processing of plate and curved surfaces .
Main specifications
Model | HCTK6511X2/13 | HCTK6513X2-0960 |
Spindle diameter | 130 mm | 130 mm |
Work table size(L×W) | 4000×1400 mm | 6000×900 mm |
Work table length choice range | 6000, 8000, 10000 mm | 8000, 10000 mm |
Max. loading of worktable | 8000 Kg | 10000 Kg |
Distance from spindle center to table | 345-1545 mm | 360-1560 mm |
Travel of table (x) | 4000 mm | 6000 mm |
Headstock vertical travel (y) | 1200 mm | 1200 mm |
Spindle axial travel (z) | 550 mm | 550 mm |
Travel of column (w) | 900 mm | 900 mm |
Distance between two spindle | 1440-3240 mm | 1180-2980 mm |
Positioning accuracy (x,w,y,z) | 0.06/0.02/0.03/0.02 mm | 0.025/300 mm |
Repeat positioning accuracy (x,w,y,z) | 0.03/0.013/0.013/0.013 mm | 0.05/1000 mm |
Max. boring diameter | 240 mm | 240 mm |
Max. drilling diameter | 50 mm | 50 mm |
Feeding speed (x,y/z,w) | 5-2600, 5-2000 mm/min | 5-2600, 5-2000 mm/min |
Rapid speed (x,y,z,w) | 6/10/5/5 m/min | 6/10/5/5 m/min |
Inner hole taper of spindle | BT 50 | BT 50 |
Coaxality between two spindle | 0.05/1000 mm | 0.05/1000 mm |
Spindle speed range | 30-1000 rpm | 30-1000 rpm |
Max. output torque on spindle | 1600 N.m | 1600 N.m |
Main spindle motor | 18/23.5 Kw | 18/23.5 Kw |
Weight of machine | 44000 Kg | 48000 Kg |
Occupy area (L×W) | 8800×10000 mm | 7302x16138 mm |

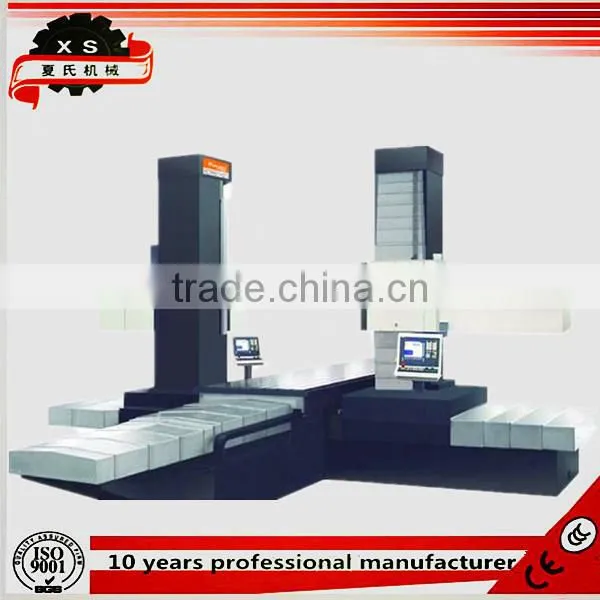

Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
