Home > Products > Boring machine > Vertical CNC Honing Machine Machinery Inner Circle 2MK2215X2

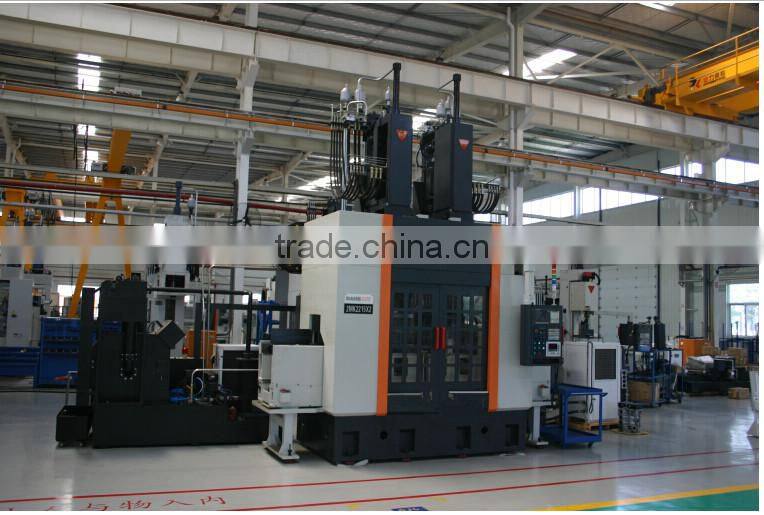

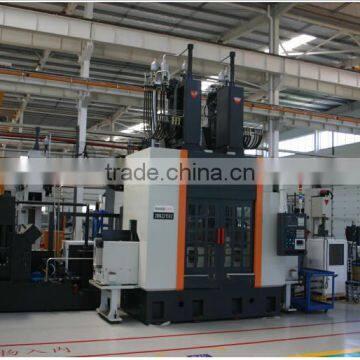

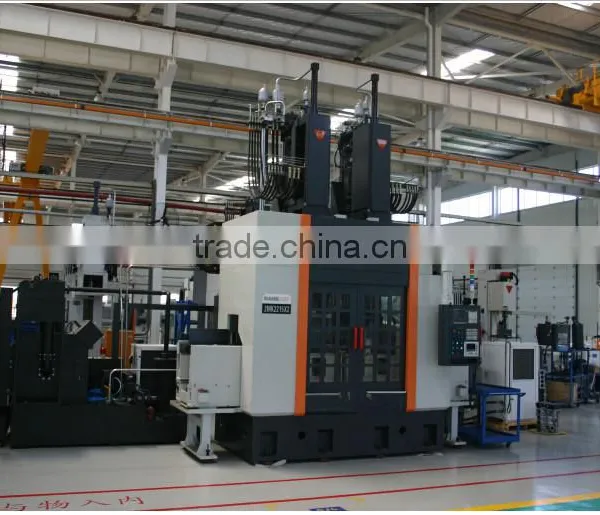

Vertical CNC Honing Machine Machinery Inner Circle 2MK2215X2
- ShenZhen
- T/T
You May Like
-
Vertical CNC Honing Machine for Inner Circle With 200mm Max Honing Depth
-
2MB2225X60 Vertical CNC Honing Machine Machinery Inner Circle Honing Machine
-
2MB2216X32 Vertical CNC Honing Machine Inner Circle
-
Universal Knee-Type Horizontal Milling Machine X6142
-
2MK2218x50YS Vertical CNC Honing Machine Machinery Inner Circle
-
Large Digital Display Horizontal Milling and Boring Machine XS-TXP611
Product Details
| Condition | New | Place of Origin | Yunnan, China | |
| Brand Name | XIASHI | Model Number | 2MK2215X2 | |
| CNC or Not | CNC | Power(W) | 5.5kw | |
| Certification | ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
This machine is suitable for processing a variety of engine cylinder hole, cylinder liner hole, hydraulic valve bore, piston ring hole and other precision through-hole and blind hole.
Features
1, With automatic on-line measurement functions.
2, With dual feed, platform textured honing or workpiece rough honing and fine honing can achieved in one honing head, improved honing efficiency.
3, Secondary filtering of the constant temperature cooling magnetism roller paper tape, ensure the honing quality. And the cutting heat can be timely cooled, improved honing precision of the workpiece.
4, Independent electrical control cabinet cooler (air conditioning), greatly improve the stability and reliability of the electricity, to adapt a long time running.
Specification:
Honing diameter range: 150mm
Spindle diameter:70mm
Max. Honing depth: 500mm
Distance from spindle to table: 1090-1890mm
Distance from spindle center to column: 500mm
Feeding speed range: 3-35m/min
Spindle speed range: 10-600r/min
Main motor power: 5.5kw
Hydraulic motor power: 2.5kw
System: KND CNC system
2.If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
