Home > Manufacturing & Processing Machinery > Machine Tools > Boring Machine > HPBC1620 Planer Type Milling & Boring Machining Center

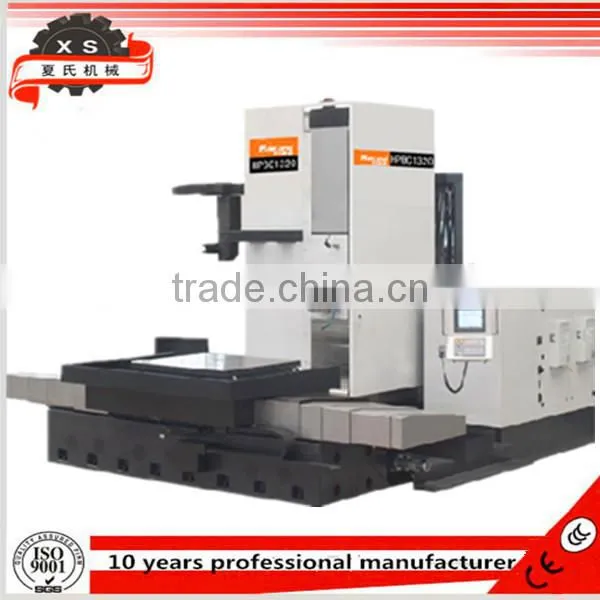

HPBC1620 Planer Type Milling & Boring Machining Center

Name: HPBC1620 Planer Type Milling & Boring Machining Center
Brand: xiashi
SKU: 140989402
Availability: InStock

Guangxi Xiashi Machinery Equipment Co., Ltd.

HPBC1620 Planer Type Milling & Boring Machining Center thumbnail-1

HPBC1620 Planer Type Milling & Boring Machining Center photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Place of Origin:

Guangxi, China

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Place of Origin Guangxi, China

Brand Name xiashi

Model Number HPBC1620

Dimension(L*W*H) 9100*8500*5900 mm

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Specification

1.110/130/160 spindle optional
2.CNC boring & milling machine.
3.High accuracy CNC rotary table.
4.High rigid

Technical parameter

Model	HPBC1325	HPBC1620	HPBC1625
Spindle diameter	130 mm	160 mm	160 mm
Worktable size(L×W)	1600×1400 mm	2200X2000 mm	2200X2000 mm
Max. loading of worktable	10000 Kg	20000 Kg	20000 Kg
Distance from spindle center to table top	0-2000 mm	0-2000 mm	0-2000 mm
Work table transverse travel (x)	2500 mm	4000 mm	4000 mm
Headstock vertical travel (y)	2500 mm	2000 mm	2500 mm
Spindle axial travel (z)	800 mm	1000 mm	1000 mm
Column longitudinal travel (w)	1600 mm	2000 mm	2000 mm
ATC capicaty	60	60	60
Feeding speed (x, y, w)	2-2600 mm/min	2-2600 mm/min	2-2600 mm/min
Feeding speed (z)	2-2000 mm/min	2-2000 mm/min	2-2000 mm/min
Feeding speed (B)	1-180 °/min	1-180 °/min	1-180 °/min
Rapid speed (x, y, w)	10000 mm/min	10000 mm/min	10000 mm/min
Rapid speed (z)	3000 mm/min	3000 mm/min	3000 mm/min
Rotary speed of table	4 rpm	4 rpm	4 rpm
Positioning accuracy (x, y, z, w)	0.020/0.018/0.014/0.018	0.024/0.024/0.014/0.018	0.024/0.024/0.014/0.018
Positioning accuracy (B)	±3"	±3"	±3"
Repeated positioning accuracy (x, y, z, w)	0.020/0.018/0.014/0.018	0.015/0.015/0.012/0.015	0.015/0.015/0.012/0.015
Overall dimensions(L×W×H)	7900×6700×5500 mm	9100×8500×5900 mm	9100×8500×6400 mm

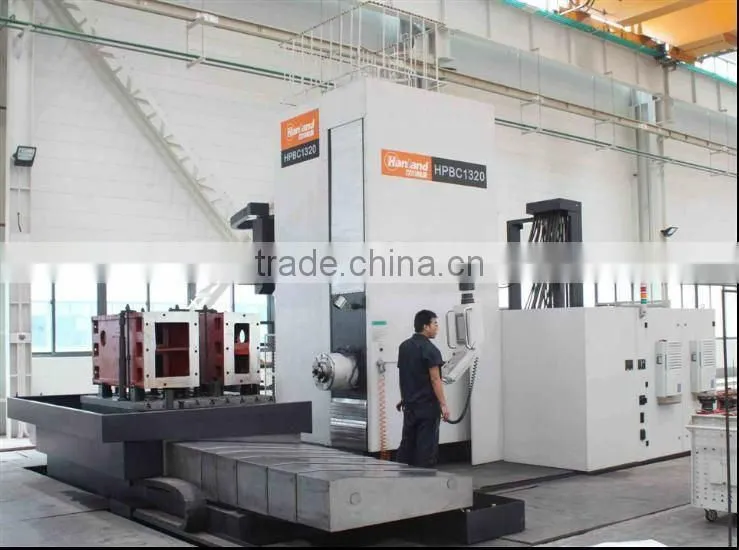

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
