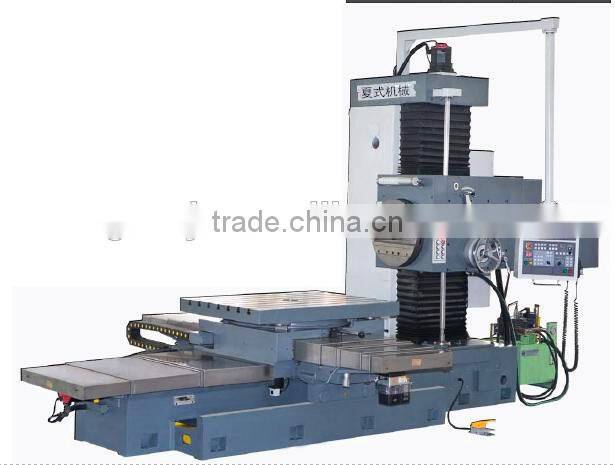

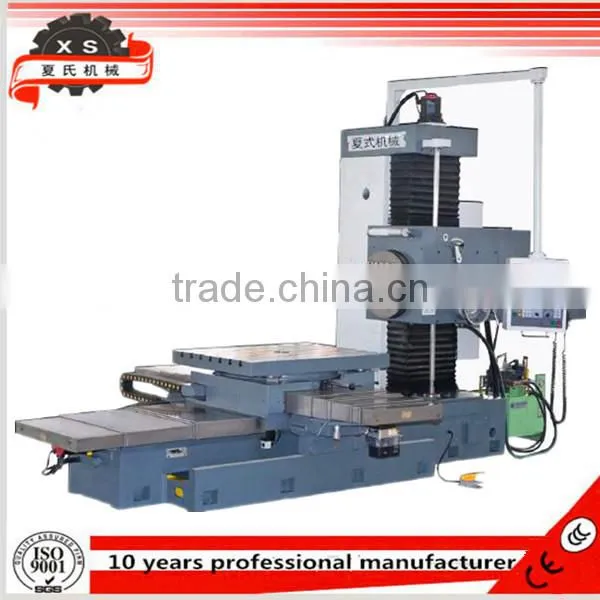

1.CNC horizontal boring milling machine
2.standard manual rotary table
3.servo control,auto machining
4.4-axis,3-axis linkage
Feature
1.The series machine uses a single column, side hung box layout form, and table adopt four-point positioning,structural forms of manual rotation (optional Hirth structure CNC turret
360 × 1 ° indexing)
2.X, Y, Z axis controlled by CNC system, achieving three-axis linkage. Telescopic of Boring shaft and rotating disk rotation are controlled servo motor, achieving automatic processing.
3. X, Y, Z axis controlled by CNC system can achieve three-axis linkage. Telescopic shaft boring and flat rotating disk rotation mining
4.Servo motor control, automatic processing.
5.X, Y, Z axis adopt rectangular sliding rails, PTFE plastic paste process, shock absorption, and high accuracy.
6.Headstock adopt heavy hammer balanced way. Spindle, flat rotating disk using AC servo motor control.
Technical parameters
Specifications |
Units |
TPK611C |
Spindle diameter |
mm |
Φ110 |
Longitudinal travel of table |
mm |
1350 |
Transverse travel of table |
mm |
1250 |
Headstock vertical travel |
mm |
900 |
Spindle axial travel |
mm |
550 |
Max. boring diameter |
mm |
Φ240 |
Max. drilling diameter |
mm |
Φ50 |
Max. allowable torque on spindle |
N.m |
1100 |
Table size |
mm |
1320×1010 |
Max. load of table |
kg |
2500 |
Distance from spindle nose to table surface |
mm |
5-905 |
Taper of spindle |
|
BT50 |
Max. machining diameter of facing head |
mm |
630 |
Feeding range |
mm/min |
0.2-330 |
Rapid feed speed |
mm/min |
5000 |
Spindle speed range |
rpm |
12-1100 |
Facing head speed range |
rpm |
4-130 |
Feed speed range |
mm/min |
0.5-1000 |
Spindle motor power |
kW |
11/15 |
Positioning accuracy |
mm |
0.02/500 |
Repeat positioning accuracy |
mm |
0.014/500 |
Overall dimension |
mm |
5375×2995×3035 |
Machine weight |
kg |
12300 |
