Help CenterWelding Machine for Tyre Protection Chain
Related Products
Specifications
welding machine for tyre protection chain1-Easy to operate
2-High efficiency

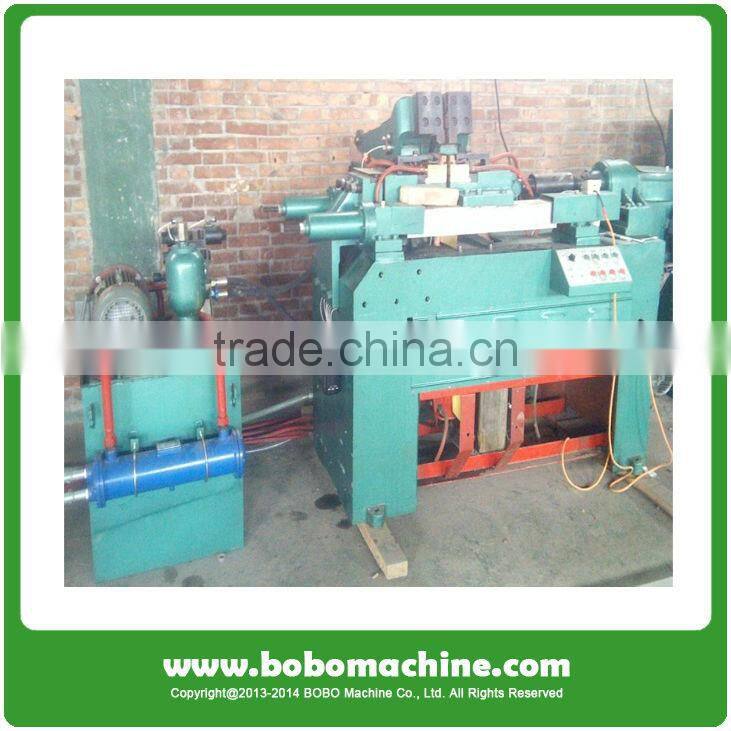

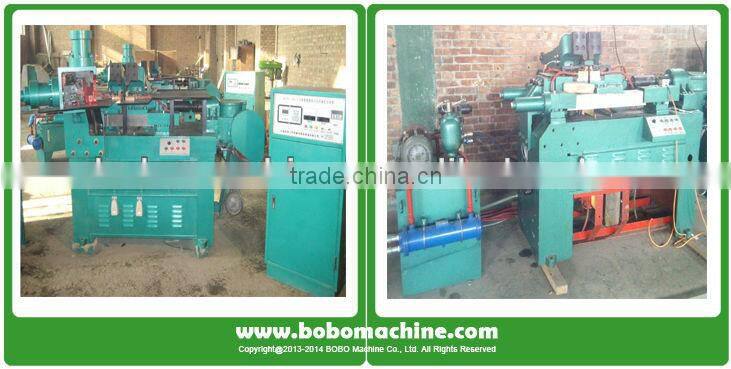

welding machine for tyre protection chain
The welding machine for tyre protection chain is specially used for protection chain welding, which is suitable for chain wire diameter range of 12-22mm with good quality and high efficiency.
Features of welding machine for tyre protection chain
- Automatic, stable and reliable
- Good performance
- Save enegy and improve welding quality
Technical data of welding machine for tyre protection chain
Specification |
Unit |
UNT-160-10KBY |
Suitable welding chain diameter |
mm |
φ12-φ22 |
Rated capacity |
KVA |
160 |
Primary voltage |
V/phase |
380/2 |
Power frequency |
HZ |
50 |
Rated duty cycle |
% |
20 |
Secondary voltage regulation range |
V |
4.05-8.10 |
Secondary voltage regulating series |
grade |
16 |
Secondary voltage regulating series of rated capacity |
grade |
15 |
Clamping force of jip |
N |
50000 |
Max upsetting force |
N |
65000 |
Rated welding productivity |
Rings/min |
5 |
Motor power of mechanical drive |
kw |
3 |
Hydraulic working pressure |
MPA |
6.3 |
Machine weight |
kg |
2700 |
Machine overall size (LxWxH) |
mm |
2650×1400×1700 |
Control cabinet overall size |
mm |
700×360×1300 |
