Automatic Chain Calibration Machine
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | BOBO | |
| Model Number | UNB-350 | Primary Voltage | 380V | |
| Rated Duty Cycle | 50% | Rated Capacity | 350KVA | |
| Dimensions | diamter 14-22mm | Usage | Chain forming | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Automatic chain calibration machine1-Easy to operate
2-Good quality

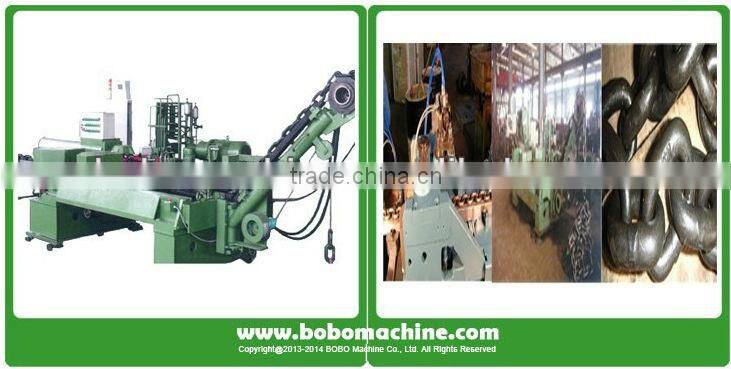

Automatic chain calibration machine
The chain calibration machine is used to weld the chain with secondary resistance electrify method, include the chain conveying, rotating, welding, forging, trimming, etc 19 actions in automatic work.
Chain calibration machine, chain link forging machine, chain forming machine, chain bending machine,Chain link calibrating machine, chain calibration machine, chain testing machine
Features of automatic chain calibration machine
- Good performace
- High efficiency
Technical data of automatic chain calibration machine
| Model | UNB-125C |
| Suitable wire diameter | 4-8mm |
| Chain pitch | 2.7 ~ 5.0 times of wire diameter |
| Productivity | 40-50 rings/min |
| Rated capacity | 125KVA, 50Hz |
| Open circuit voltage | 3.52~7.04 V (8 grade) |
| Motor capacity | 2.2KW, 1500rpm speed |
| Pneumatic pressure | 0.6MPa |
| Air consumption | 7L/cycle |
| Cooling water consumption | 18L/min, min. degree 15 centigrade |
| Machine dimension | 2200 x 1350 x 1900mm |
| Machine net weight | 2160KG |
