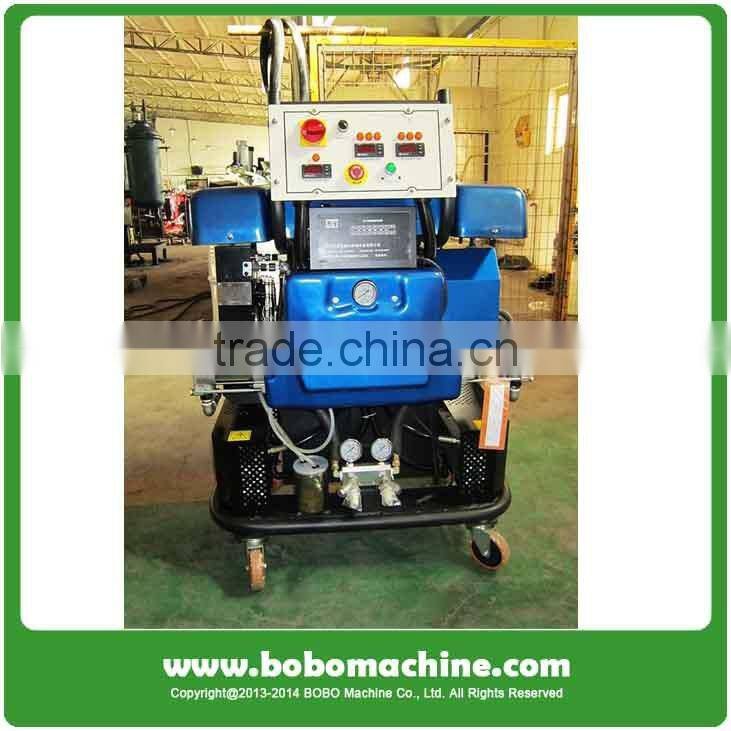

Polyurethane Spray Foam Painting Machine

Polyurethane Spray Foam Painting Machine photo-1
US$ 6,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, spray foam painting machine
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
spray foam painting machine will be delivered from Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, spray foam painting machine
Place of Origin Jiangsu, China
Brand Name BOBO
Model Number BDF-V
Voltage 380V, 3phase
Power(W) 9kw
Dimension(L*W*H) 1100x700x1400mm
Weight 350kg
Certification Other, spray foam painting machine
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



polyurethane spray foam painting machine



Product Description

polyurethane spray foam painting machine

polyurethane spray foam painting machine

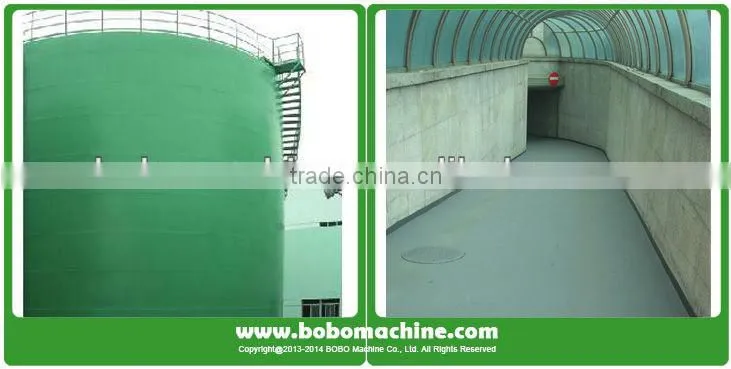

The polyurethane spray foam painting machine is used to spray polyurea on wall, tank, etc for air proof, abraion purpose.

polyurethane spray foam painting machine



Feature of spray foam painting machine

  • Hydraulic driven for smooth work
  • Pneumatic motor
  • High precision proportion pump
  • Main machine heating system



polyurethane spray foam painting machine

Main technical data of spray foam painting machine



ModelBDF-V

Max. flow capacity

2-8kg/min
Mixing ratio1:1, fixed ratio
Material viscosity range200-1000cps(operation temperature
Max. system pressure25Mpa
Single material output pressMax. 26Mpa
Hydraulic pressure8-12Mpa(for working)
Material heating capacity9000W*2
Hose heating capacity3200W
Max. hose length90m
Electric system38A*3+16A, 380V 3phase
Driven systemFull-hydraulic
Cleaning systemPneumatic cleaning
Dimension1100*700*1400mm
Weight350kg
Standard configuration

Main machine, one set

Feeding pump, two pieces

Spray gun, one piece

Gun connection hose 1.5m, one set

Heating hose 15m, one set



polyurethane spray foam painting machine



FAQ

polyurethane spray foam painting machine



1. Can spray foam machine be 220V, 60Hz?

  Re: We can customize the electric system according to your requirements.



2. If I buy the spray foam machine, do I need to buy any other parts?

  Re: We will provide all the necessary accessories going with the machine including spray gun heating hose, material pump etc., that means the machine is ready to work when you receivw it.



3. Can the heating hose length be extended?

  Re: Yes, the heating hose length can be extended to 60/90m for different machines, and we will provide one set standard heating hose going with the machine, which length is 15m.



4. Can you provide the raw material along with the machine?

  Re: We can supply the raw materials for fire proof, wall , roof insultion.



5. Whats the difference between polyurethane spray foam machine and polyurea spray foam machine?

  Re: The polyurethane spray foam machine is widely used for wall, roof, refrigerator, and box, pipe insulation purpose, and the polyurea spray foam machine is mainly used for wall, roof, refrigerator, tank body, pipeline protection coat for abrasive surface, waterproof, antiseptic purpose.



6. Whats the HS code of the spray foam machine.

  Re: The HS code of the machine is  8477800000.



Packaging & Shipping

polyurethane spray foam painting machine



Packaging:

Stable wooden package protects machine from strike and damage.

Wound plastic film keeps machine out of damp and corrosion.

Fumigation-free package helps the smooth customs clearance.

The big size machine will be fixed in container without package.



Shipping:

For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.

For FCL, we get the container and do container loading by our skillful workers carefully.

For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.



Our Services

polyurethane spray foam painting machine

1         Professional and patient consulting service to help you find the suitable solution.

2         Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.

3         Powerful control of the machine production schedule and quality, and keep you posted about details in time.

4         Free training and accommodation in our plant during machine inspection. Or  photos and video of the machine and package for your confirmation before shipment.

5         Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.

6         For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.

7         For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.



Company Information

polyurethane spray foam painting machine

BOBO MACHINE CO., LTD is the professional supplier for metal processing machinery in China. We supply the duct machine, pu foam machine, baling machine, leather machine, wheel production line and different kinds of metal processing machinery.



With many years successful industry experience, we have established long term cooperation with lots of customer from all over the world. Also we have sales network in Britain, Russia, USA, Mexico and Brazil to supply the machine and service in local market directly.Also we can work as your professional consulting advisor in China to sourcing the right machine and equipment as per your requirements, to offer you the complete solution and necessary after sale service.



 Professional and creditable, customer first, with these work faith, we successfully win the expanded market and favorable feedback from our customers, and we always look forward to be your reliable supplier and advisor in China, to have a long term cooperation for mutual benefit.
