pu Insulation Foam Spraying Machine
US$ 6,000 - 25,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Product Type | Other, foam spray machine | |
| Place of Origin | Jiangsu, China | Brand Name | BOBO | |
| Model Number | BDF-IV | Voltage | 380V | |
| Power(W) | 9.5kw | Dimension(L*W*H) | 800x700x1250mm | |
| Weight | 157kg | Certification | Other, ISO | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
pu insulation foam spraying machine1.hydraulic drive
2.pneumatic motor
3.high precision proportion pump
4.CE approval

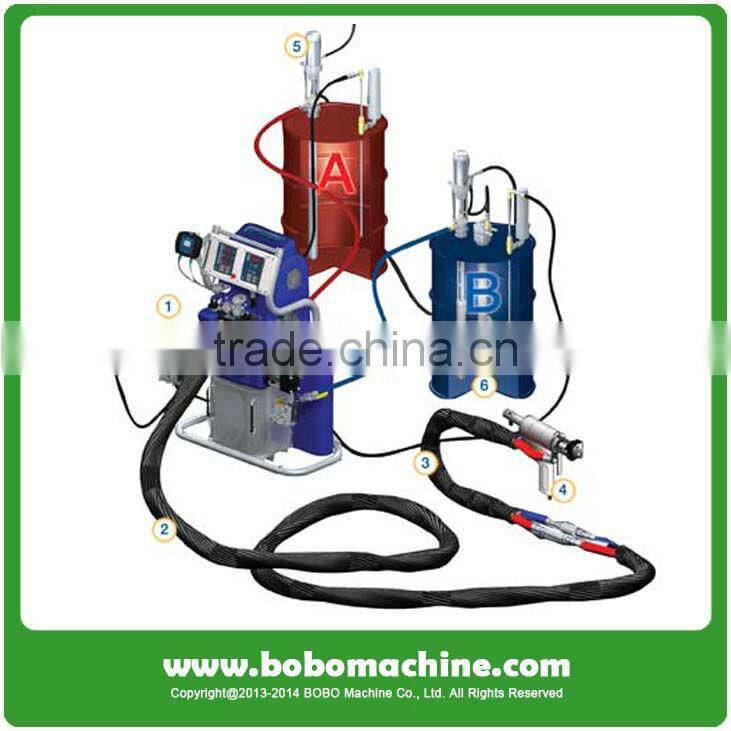

pu insulation foam spraying machine

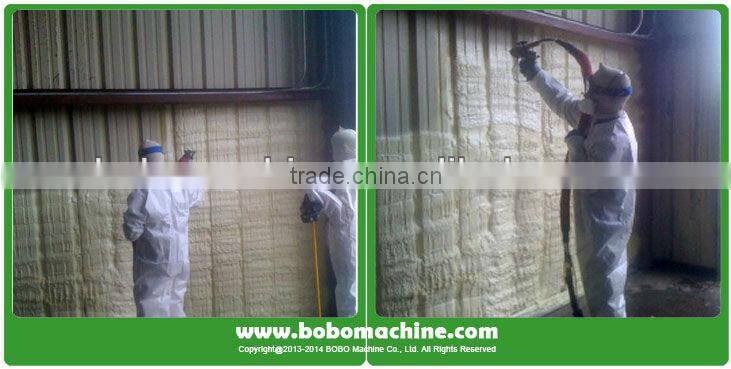

The pu insulation foam spraying machine is used for wall roof, refrigeratory, and box, pipe insulation purp[ose.
Feature of pu insulation foam spraying machine
- Hydraulic driven for smooth work
- Pneumatic motor with air compressor
- High precision proportion pump
- Main machine heating system
Main technical data of pu insulation foam spraying machine
| Max. flux capacity | 4-8kg/min |
| Max. material temperature | 80 centigrade |
| Mixing pressure | 5-10Mpa |
| Heating capacity | 9.5kw |
| Max. hose length | 90m |
| Drive method | Pneumatic with air compressor |
| Motor power | 380v, 50/60HZ, 3 phase |
| Demension | 800*700*1250mm |
| Weight | 157kg |
| Standard configuration | main machine, meterial pump, spaying gun, 15m long heating hose |
