Truck Bedliner Polyurea Coating and Spraying Machine

Truck Bedliner Polyurea Coating and Spraying Machine photo-1

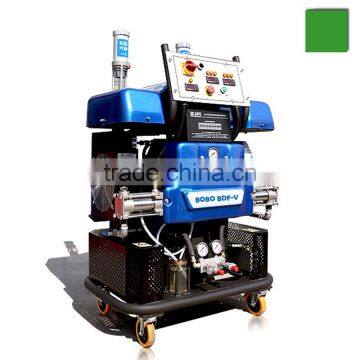

Truck Bedliner Polyurea Coating and Spraying Machine photo-2

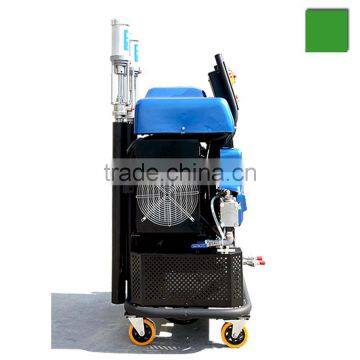

Truck Bedliner Polyurea Coating and Spraying Machine photo-3

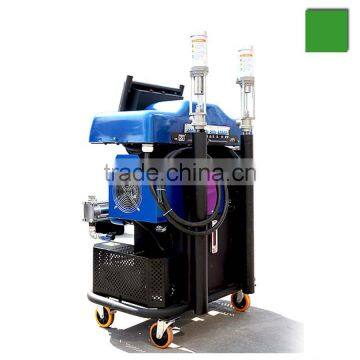

Truck Bedliner Polyurea Coating and Spraying Machine photo-4
Truck Bedliner Polyurea Coating and Spraying Machine photo-5
US$ 12,600 - 14,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, foam machine
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
polyurea coating and spraying machine will be delivered from Shanghai or Tianjin.
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, foam machine
Place of Origin Jiangsu, China
Brand Name BOBO
Model Number BDF-V
Voltage 380V, 3phase
Power(W) customized
Dimension(L*W*H) 1100x700x1400mm
Weight 350kg
Certification CE, Other, CE, ISO
Warranty 15 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Brief introduction

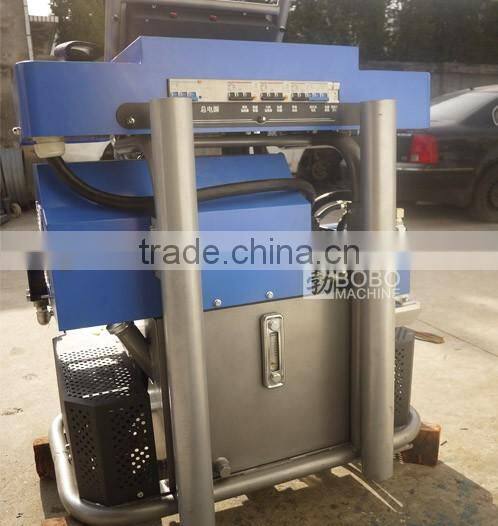

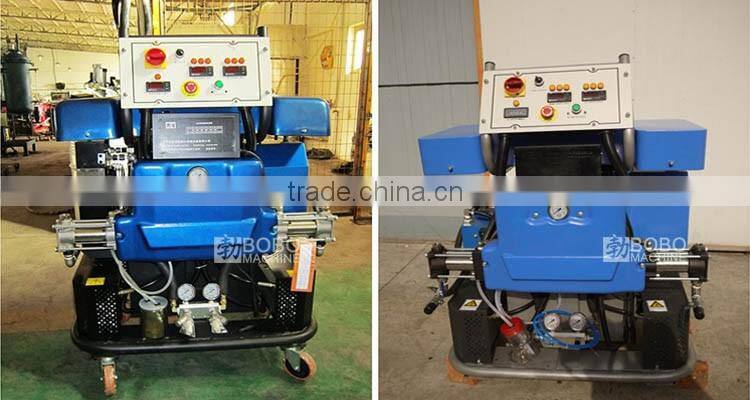

Polyure spray machine BDF-V is hydraulic driven machine which can spray both polyurethane foam and polyurea coating. It is with stable performance and strong capacity and power. It is widely used in building constructions and projects.

No
Desription
Item
1
Model
BDF-V
2
Max. flow capacity
2-8kg/min
3
Mixing ratio
1:1, fixed ratio
4
Material viscosity range
200-1000cps(operation temperature
5
Max. system pressure
25Mpa
6
Single material output press
Max. 26Mpa
7
Hydraulic pressure
8-12Mpa(for working)
8
Material heating capacity
9000W*2
9
Hose heating capacity
3200W
10
Max. hose length
90m
11
Electric system
38A*3+16A, 380V 3phase
12
Cleaning system
Pneumatic cleaning
13
Dimension
1100*700*1400mm
14
Weight
350kg
15
Standard configuration
Main machine, one set
Feeding pump, two pieces
Spray gun, one piece
Gun connection hose 1.5m, one piece
Heating hose 15m, one piece
Common spare parts, 1 set

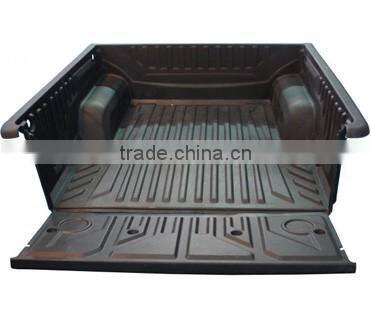

Application
Key parts

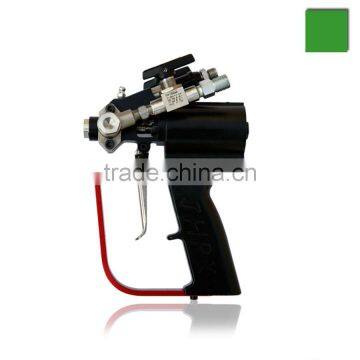

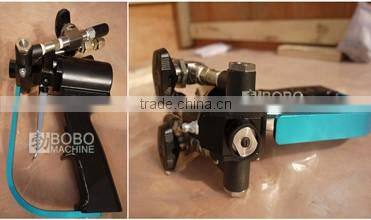

Spray gun

BDF-V polyurea spray machine is equipped with the latest generation gun PKIII, which is more durable and with better performance than the old generation.

Heating hose

The standard length of BDF-V is also 15 meters. And the hose is with more heaters inside, which can heat the material better and faster.

Feeding pump

With large capacity feeding pump than other models, which can feed the chemical faster.

Connecting hose

The connecting hose is used to connect the heating hose to spray gun, which is made from high pressure rubber hose.

Packing & Delivery

BDF-V can be delivered within 10 days after receiving deposit, if power needs to be customized, 15 days.

We make professional package with waterproofing protection inside. And the wood material is standard for sea shipping.

FAQ

 1. Can spray foam machine be 220V, 60Hz?

Re: We can customize the electric system according to your requirements.

2. If I buy the spray foam machine, do I need to buy any other parts?

Re: We will provide all the necessary accessories going with the machine including spray gun heating hose, material pump etc., that means the machine is ready to work when you receivw it.

3. Can the heating hose length be extended?

Re: Yes, the heating hose length can be extended to 60/90m for different machines, and we will provide one set standard heating hose going with the machine, which length is 15m.

4. Can you provide the raw material along with the machine?

Re: We can supply the raw materials for fire proof, wall , roof insultion.

5. What’s the difference between polyurethane spray foam machine and polyurea spray foam machine?

Re: The polyurethane spray foam machine is widely used for wall, roof, refrigerator, and box, pipe insulation purpose, and the polyurea spray foam machine is mainly used for wall, roof, refrigerator, tank body, pipeline protection coat for abrasive surface, waterproof, antiseptic purpose.

6. What’s the HS code of the spray foam machine.

Re: The HS code of the machine is 8477800000.
