Features:
The Universal Index Center has been designed to carry out all types of gear cutting.Precision dividing and spiral word
with greater precision and efficiency than ever TAHE Center face can be tilted from vertical,and inclinations can be read
off a scale to -10° from vertical,and inclinations can be read off a scale graduated in degrees.The center is built to highest engine-ering standards and is factory inspected and tested to assure complete satisfaction.The ratio of worm to grar is 1:40
OPTIONAL ACCESSORY:6" or 8" 3-jaw Chuck for BS-2 Unit:mm/in

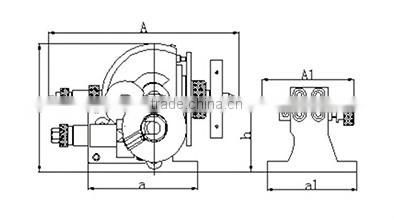

| Model | A | B | H | h | a | b | g | Taper of Center | N.W.(kg) | Item No. |
| BS-2 | 370 | 280 | 236 | 133 | 212 | 134 | 16 | MT4 | 73 | 521044 |
| 14.57 | 11.02 | 9.29 | 5.24 | 8.35 | 5.28 | 0.63 | B&S NO.10 |

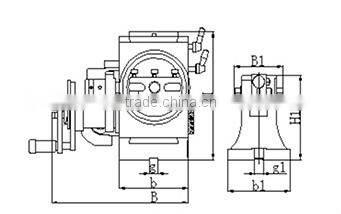

UNIVERSAL INDEX CENTER B & S NO.2(TAIL-STOCK) Unit:mm/in
| Model | A1 | B1 | H1 | h | a1 | b1 | g1 | Mueasurement m3 |
| BS-2 | 183 | 90 | 156 | 133 | 175 | 122 | 16 | Packed with the Dividing head |
| 7.2 | 3.54 | 6.14 | 5.24 | 6.89 | 4.8 | 0.63 |

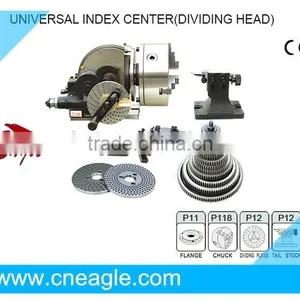

STANDARD ACCESSORIES
Dividing plate A,B,C.
Numbers of holes of dividing plate(worm gear reduction ratio 1:40) Unit:mm/in
| Numbers of hole |
Plate A | 15 | 16 | 17 | 18 | 19 | 20 |
| Plate B | 21 | 23 | 27 | 29 | 21 | 33 | |
| Plate C | 37 | 39 | 41 | 43 | 47 | 49 |
