SIMPLE HORIZONTAL/VERTICAL INDEXING SPACERS

SIMPLE HORIZONTAL/VERTICAL INDEXING SPACERS thumbnail-1
SIMPLE HORIZONTAL/VERTICAL INDEXING SPACERS photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
EAGLE
Contact Supplier Request Quote Chat Now
Eagle Industries, Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name EAGLE

Specifications

Solid Meehanite casting,specially designed for milling.drilling and boring.

SIMPLE HORIZONTAL/VERTICAL INDEXING SPACERS

Solid Meehanite casting,specially designed for milling.drilling and boring.
Hardened and ground 24 position master plate
Precision ground steel spindle
Heavy duty shoe type spindle brake ensuring maximum rigidity for milling cuts.
360°graduation ring.
The center through hole is big to be suitable for the large and long workpiede.
Used the key guide block,the center can be corrected both quickly and accurately.
Horizontal and vertical mounting postitings.



  Standard Accessories:
3-jaw chuck
Six masking plates (2,3,4,6,8, and 12 owition)

MODEL
No.		 Chuck Guide
Block		 Turret
Hole
Dia.
Outer
Dia		 Thru
Hole Dia.		 Inner
Jaw		 Outer
Jaw
cc-6 160
6.30		 40
1.57		 3-55
0.12-2.17		 55-145
2.17-5.71		 16
0.63		 50
1.97
cc-8 200
7.87		 65
2.56		 4-85
0.16-3.35		 65-200
2.56-7.87		 16
0.63		 63
2.48

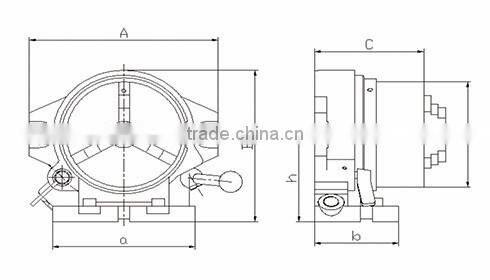

  A B C D a b h Gross
Weight
kgs/lbs		 Item No
260
10.23		 227.5
8.95		 152
5.98		 160
6.30		 196
7.71		 115
1.53		 130
5.12		 32
70		 521036
324
12.75		 273
10.74		 175
6.88		 200
7.87		 234
9.21		 156
6.14		 154
6.06		 52
114		 521038
