Universal Dividing Head
- 100 Set / Sets per Month
- Shanghai
- Factory sale high precision pneumatic pressure brake cnc milling machine 4th axis rotary table hydraulic indexing table rotary
- Semi-Universal Dividing Head F12100 F12125 F12160 F12200
- Heavy Semi-Universal Dividing Head F11200 F11260 F11300 F11400 F12500 F121000
- Universal Dividing Head F11100A F11125A F11160A F11200A
- Semi-Universal Dividing Head BS-0 BS-1
- UNIVERSAL INDEX CENTER(DIVIDING HEAD)
Product Details
Material: | Cast Iron | Model: | F11125A |
Product Description

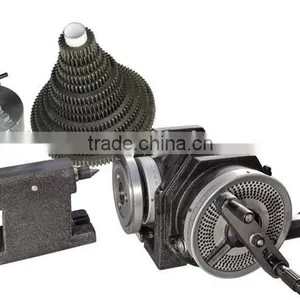

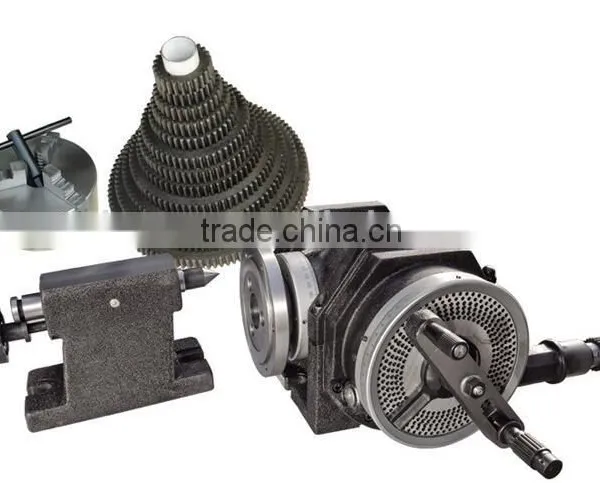

1,The universal dividing head. Type FW 1100 ,FW1125 , FW1160 is one of the most important attachment for milling machine. With the help of this dividing head,the workpiece held between centers,or on a chuck can be rotate to any angle as desired and the periphery of a workpiece can be divided into any divisions of equal parts. By means of all kinds of cutters, the dividing head can also help milling machine to perform the milling operation for flute, spirr gear ,spiral gear , spiral flute, Archimedean cam,helical flute and etc.
2,The dividing head is equipped with a face plate that can be mounted onto the spindle nose. The workpiece can be mounted on the face plate, thus, cutting can be carried out on 4-sides of a workpiece.
Model | FW100 | FW125 | FW160 | |
Center height | 100 | 125 | 160 | |
Swivel angle of spindle from it’s horizontal position | ≤95° | |||
Horizontal position (downward) | ≤5° | |||
Rotating angle of spindle for one complete revolution of dividing handle | 9° (540grad.,1’each) | |||
Min.readina of vernier | 10 ” | |||
Worm qear ratio | 1:40 | |||
Taper of spindle bore | MT3 | MT4 | ||
Width of locatinq kev.mm | 14 | 18 | ||
Diameter of short taper of spindlenose for mounting flange mm | Φ41.275 | Φ53.975 | Φ53.975 | |
1st plate | 24, 25, 28,30’ 34, 37, 38, 39, 41, 42,43 | |||
Hole numbers on index plate | 2nd plate | 46, 47, 49, 51, 53,54, 57, 58, 59, 62,66 | ||
Change Gear | Module | 1.5 | 2 | |
Teht Numbers | 2.5, 30,35,40,50, 55, 60,70,80,90,100 | |||
Individual indexing error of the spindle for one complete revolution of dividing handle | ±45" | |||
Cumulate error at anv 1/4 periphery of spindle | ±1 | |||
Max.bearing Kg | 100 | 130 | 130 | |
Net weiqht Kg | (63) 67 | (104) 110 | (120) 130 | |
Gross weiqht Kg | (75) 79 | (120) 126 | (139) 149 | |
Case dimensions mm | 616x465x265 | 635x530x310 | 710x535x342 |
