Universal dividing head, dividing head, uniersal indexing head:
No.2(Head-stock) Unit :mm/inches
Model |
A |
B |
H |
h |
a |
b |
g |
Taper of ceter |
Diameter of spindle hole |
|
LBS-2 |
370 14.56 |
280 11.02 |
236 9.29 |
133 5.24 |
212 8.35 |
134 5.27 |
16 0.63 |
B&S No.10 |
25.4 1 |
|
|
ACCURACY MAXIMUM VARIATION |
|
|||||||||
|
Center concentricity .0.006″ .015mm |
|
|||||||||
|
Inside taper concentricity of dividing spindle (1) Measured at spindle nose (1).0004″ .01mm (2) Measured at arbor(8″long) (2).0012″ .03mm |
|
|||||||||
|
Axial movment of dividing spindle .0004″ .01mm |
|
|||||||||
|
Alignment of dividing head and tailstock (1)Vertical plane (1).0008″ .02mm (2)Horizontal plane (1).0008″ .02mm |
|
|||||||||
|
Dividing Accuracy of Worm Drive Maximum Cumulative spacing error 1′30″ |
|
|||||||||
No.2 Tail-stock Unit:mm/inches
Model |
A1 |
B1 |
H1 |
h |
a1 |
b1 |
g1 |
LBS-2 |
183 7.20 |
87 3.42 |
156 6.14 |
133 5.24 |
175 6.89 |
122 4.80 |
16 0.63 |
Model |
Gross Weight |
Meas CFT |
Applicable Chuck |
||||
LBS-0 |
21 kgs 47 lbs |
0.8 |
4″ or 5″ |
||||
LBS-1 |
30 kgs 66 lbs |
1.3 |
5″ or 6″ |
||||
LBS-2 |
73 kgs 161 lbs |
3.5 |
6″ 7″ or 8″ |
||||

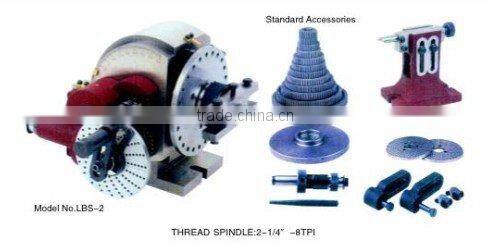

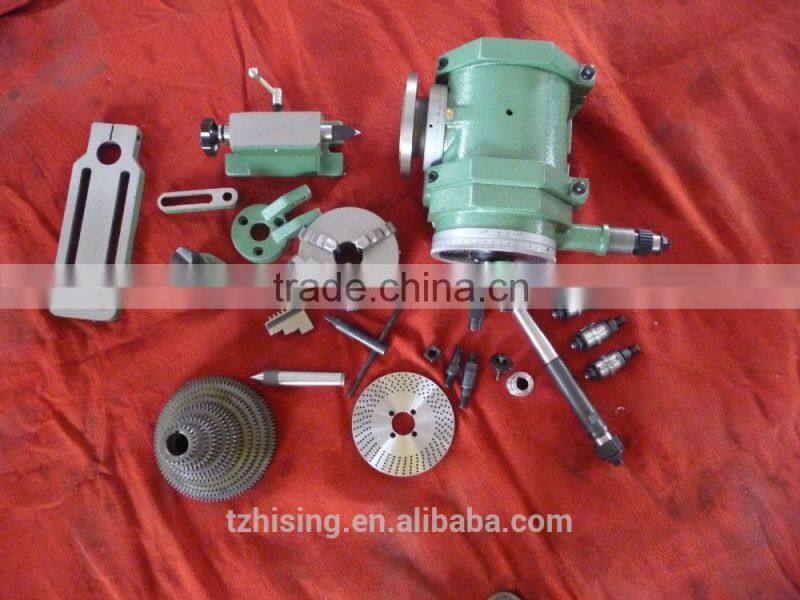

Photos of universal dividing head for display:

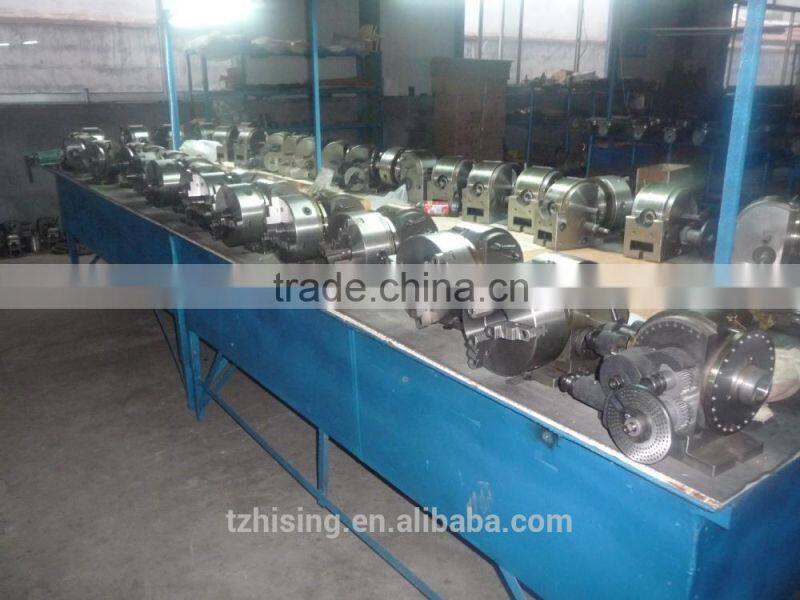

Photos of universal dividing head in workshop:
