Digital electronic outside micrometers
- 10000 Piece / Pieces per Month
- QINGDAO
- T/T L/C D/P D/A
You May Like
Product Details
| Brand Name | Eagle | Model Number | 0-25 25 75 125 150 175 200mm |
Product Description
Specifications
1.Protection level IP542.Display data is origin data of absolute measurement after changing battery

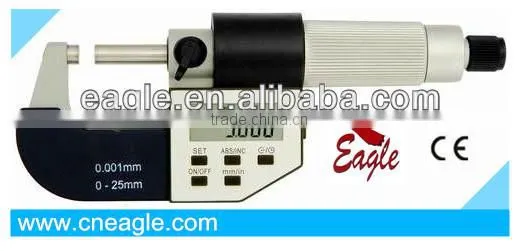

Digital electronic outside micrometers
Features
1.Protection level IP54
2.Display data is origin data of absolute measurement after changing battery
4.Chrome-plated or painted freme,Carbide measuring facesc
5.Cirterion DIN863/1,DIN40050/IEC529
6.Resolution:0.001mm(Metic);0.00005(Inch)
Power ON/OFF
Abs.and inc. conversion
Metric/Inch conversion
Data output
Origin data set
Battery: SR44
Auto power off
RS232 output port
Connecting cable(Optional): P1103 OR P1104
Specification
| Range | Accuracy | Grad. | Item No. | |
| Chrome-Plated frame | Painted frame | |||
| 0-1"/0-25mm | ±0.002mm | 0.001mm | 723101 | 723301 |
| 1-2"/25-50mm | ±0.002mm | 0.001mm | 723102 | 723302 |
| 2-3"/50-75mm | ±0.003mm | 0.001mm | 723103 | 723303 |
| 3-4"/75-100mm | ±0.003mm | 0.001mm | 723104 | 723304 |
| 4-5"/100-125mm | ±0.003mm | 0.001mm | 723105 | 723305 |
| 5-6"/125-150mm | ±0.003mm | 0.001mm | 723106 | 723306 |
| 6-7"/150-175mm | ±0.004mm | 0.001mm | 723107 | 723307 |
| 7-8"/175-200mm | ±0.004mm | 0.001mm | 723108 | 723308 |
Pictures for Reference
