Electronic Caliper Gauges for Inside Measurement

Specifications

1.Electronic inside caliper gauges are sulted for measuring bores,internal groove and other hard-to-reach inside dimension.

Electronic Caliper Gauges for inside Measurement



Features

1.Electronic inside caliper gauges are sulted for measuring bores,internal groove and other hard-to-reach inside dimension.
2.Dial rotates ±170° for use at versions angles
3.Digital display and analong display on LCD,automatic Switch over.
4.Display data is origin data of absolute.
5.Analog display range:±20 graduation.
6.Digital resolution:0.01mm(Metric);0.0005"(Inch)





Power ON/OFF
Abs.and inc. conversion
Metric/Inch conversion
Data output
Origin data set
Remenber data of Max. and Min. OR hold display data
Tolerance Set
Battery: CR2032
Auto power off
Power consumption:<50μA
RS232 output port
Connecting cable(Optional): P1103 OR P1104



Specifications and Sizes



Travel 10mm
Range	Accuracy	Resolution	Item No.
5-15mm	0.02mm	0.01mm	723310
10-20mm	0.02mm	0.01mm	723311
20-30mm	0.02mm	0.01mm	723312
30-40mm	0.02mm	0.01mm	723313
40-50mm	0.02mm	0.01mm	723314
Travel 20mm
Range	Accuracy	Resolution	Item No.
5-25mm	0.03mm	0.01mm	723340
10-30mm	0.03mm	0.01mm	723341
20-40mm	0.03mm	0.01mm	723342
30-50mm	0.03mm	0.01mm	723343
40-60mm	0.03mm	0.01mm	723344

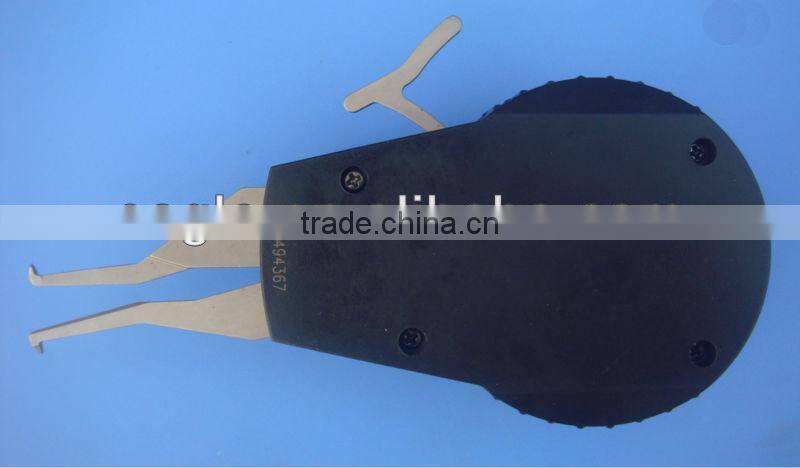

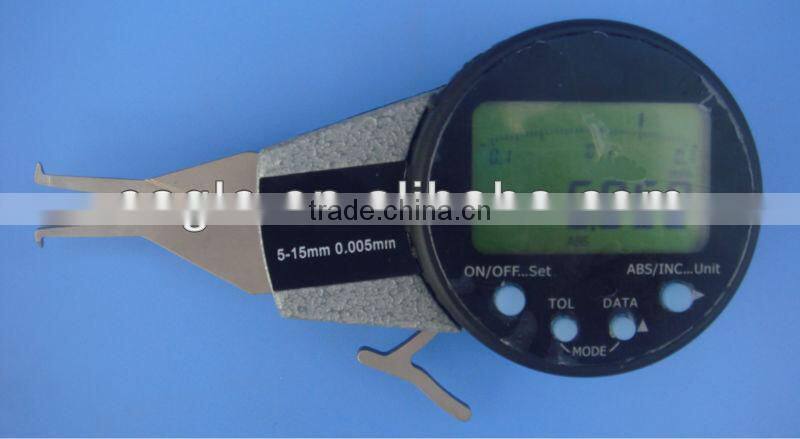

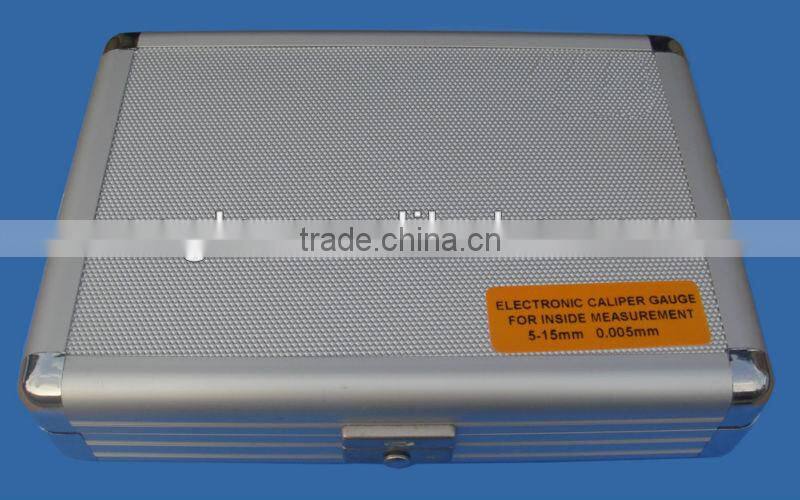

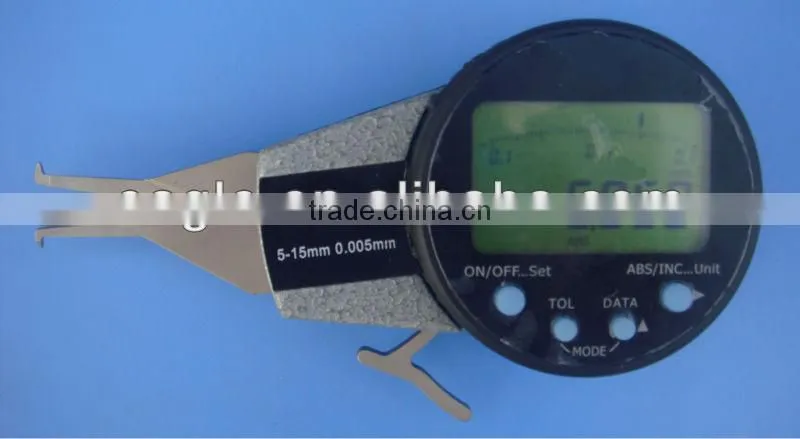

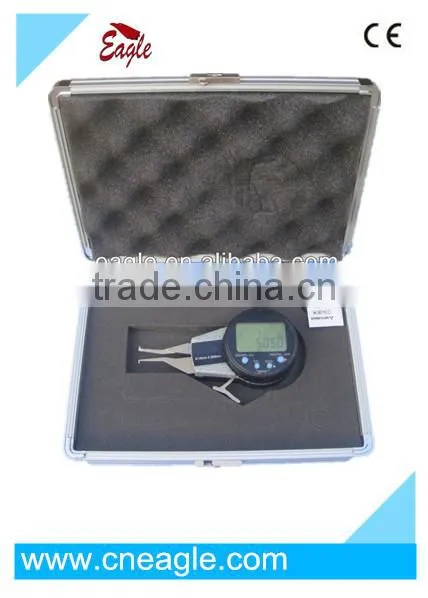

Pictures for Reference
