Electronic Outside Micrometers
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Eagle
Model Number:
25 50 75 100 125 150 175 200mm
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dial Caliper Gauge for Outside MesurementNegotiableMOQ: 10 Sets -
Three Point Internal Micrometers SetNegotiableMOQ: 1 Set
-
Micormeters Micrometer With Interchangeable AnvilsNegotiableMOQ: 1 Set
-
Electronic Caliper Gauges for Inside MeasurementNegotiableMOQ: 10 Sets
-
Stainless Steel Precision Hair EdgesNegotiableMOQ: 10 Pieces
Brand Name
Eagle
Model Number
25 50 75 100 125 150 175 200mm
Specifications
1.Protection level IP542.Display data is origin data of absolute measurement after changing battery
Electronic outside mircrometers
Features
1.Protection level IP54
2.Display data is origin data of absolute measurement after changing battery
4.Chrome-plated or painted freme,Carbide measuring facesc
5.Cirterion DIN863/1,DIN40050/IEC529
6.Resolution:0.001mm(Metic);0.00005(Inch)
Power ON/OFF
Abs.and inc. conversion
Metric/Inch conversion
Data output
Origin data set
Battery: SR44
Auto power off
Power consumption:<35μA
RS232 output port
Connecting cable(Optional): P1102

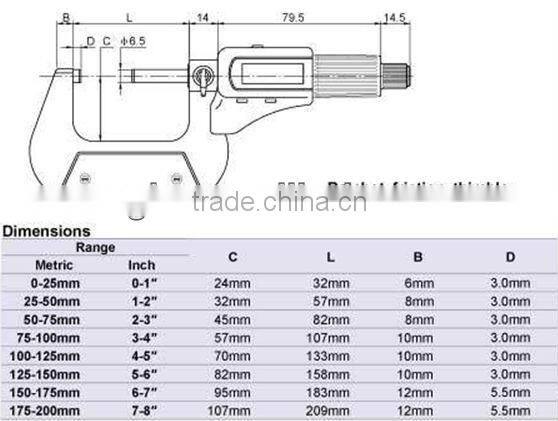

Specification and Sizes
| Range | Accuracy | Grad. | Item No. | |
| Chrome-Plated frame | Painted frame | |||
| 0-25mm | ±0.004mm | 0.001mm | 723320 | 723330 |
| 25-50mm | ±0.004mm | 0.001mm | 723321 | 723331 |
| 50-75mm | ±0.005mm | 0.001mm | 723322 | 723332 |
| 75-100mm | ±0.005mm | 0.001mm | 723323 | 723333 |
| 100-125mm | ±0.006mm | 0.001mm | 723324 | 723334 |
| 125-150mm | ±0.006mm | 0.001mm | 723325 | 723335 |
| 150-175mm | ±0.007mm | 0.001mm | 723326 | 723336 |
| 175-200mm | ±0.007mm | 0.001mm | 723327 | 723337 |
Pictures for Reference
