Brand Name eagle
Model Number 10mm

Specifications

1.Electronic outside caliper gauges are sulted for measuring grooves and other hard-to-reach outside dimension.

Dial Caliper Gauge for outside Mesurement



Features

1.Electronic outside caliper gauges are sulted for measuring grooves and other hard-to-reach outside dimension.
2.Dial rotates ±170° for use at versions angles
3.Digital display and analong display on LCD,automatic Switch over.
4.Display data is origin data of absolute.
5.Analog display range:±20 graduation.
6.Digital resolution:0.01mm(Metric);0.0005"(Inch)


Power ON/OFF
Abs.and inc. conversion
Metric/Inch conversion
Data output
Origin data set
Remenber data of Max. and Min. OR hold display data
Tolerance Set
Battery: CR2032
Auto power off
Power consumption:<50μA
RS232 output port
Connecting cable(Optional): P1103 OR P1104

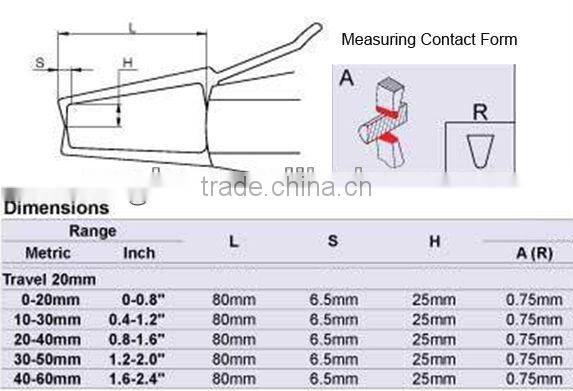

Specifications and Sizes

Travel 20mm
Range Accuracy Resolution Item No.
0-20mm 0.03mm 0.01mm 723315
10-30mm 0.03mm 0.01mm 723316
20-40mm 0.03mm 0.01mm 723317
30-50mm 0.03mm 0.01mm 723318
40-60mm 0.03mm 0.01mm 723319

Dial Caliper Gauge for outside Mesurement

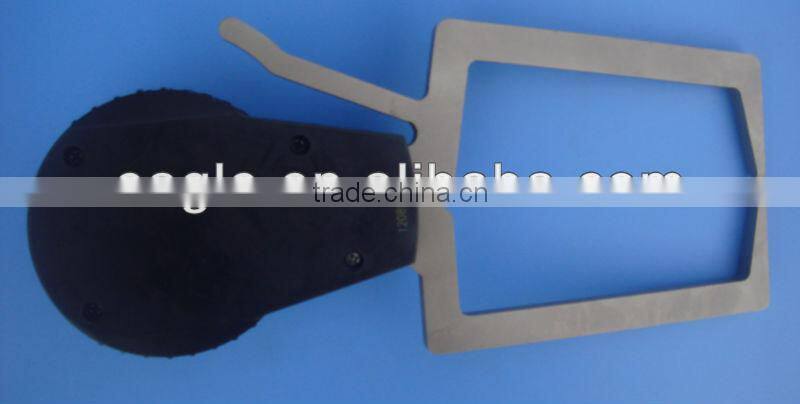

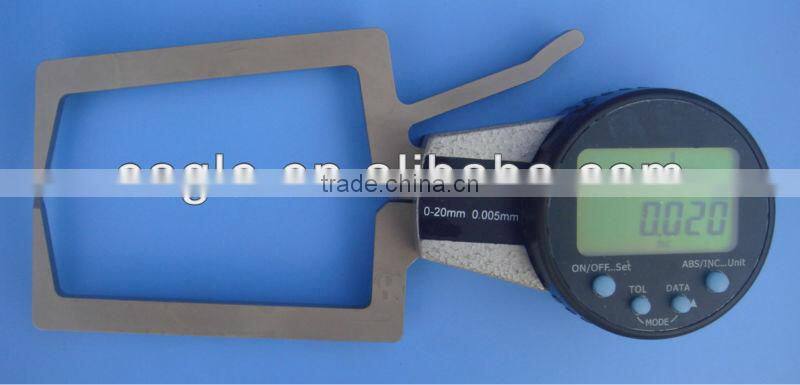

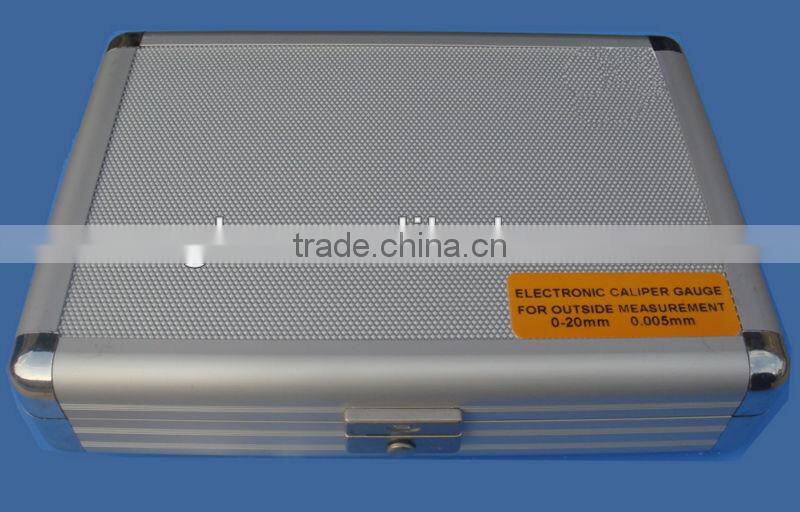

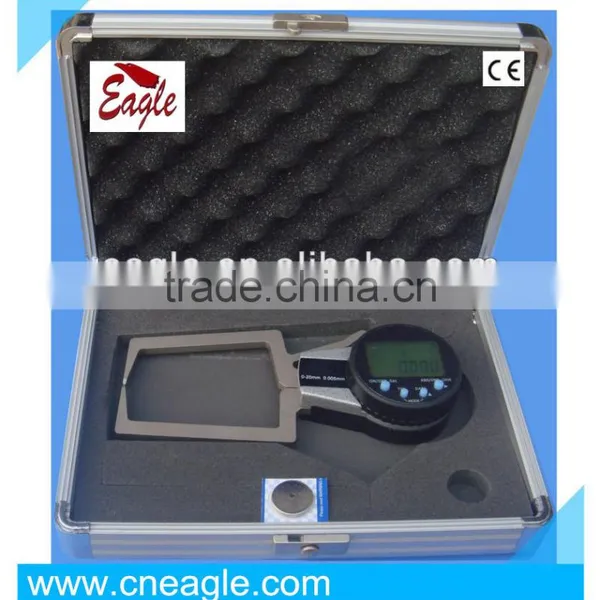

Pictures for Reference

Dial Caliper Gauge for outside MesurementDial Caliper Gauge for outside MesurementDial Caliper Gauge for outside Mesurement
