BT DRILL CHUCK ARBORS

BT DRILL CHUCK ARBORS thumbnail-1
BT DRILL CHUCK ARBORS photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Eagle
Model Number:
BT DRILL CHUCK ARBORS
Contact Supplier Request Quote Chat Now
Eagle Industries, Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Eagle
Model Number BT DRILL CHUCK ARBORS

Specifications

Made from carburized alloy steel, work surface hardness to HRC58~62.

BT DRILL CHUCK ARBORS

Features:


1.Made from carburized alloy steel, work surface hardness to HRC58~62.


2.Taper accurary≤ AT3, ensure well contact with spindle cone for high speed

   running to protect the spindle.



3.Concentrictity and runout ≤0.005mm in high rpm.

BT DRILL CHUCK ARBORS

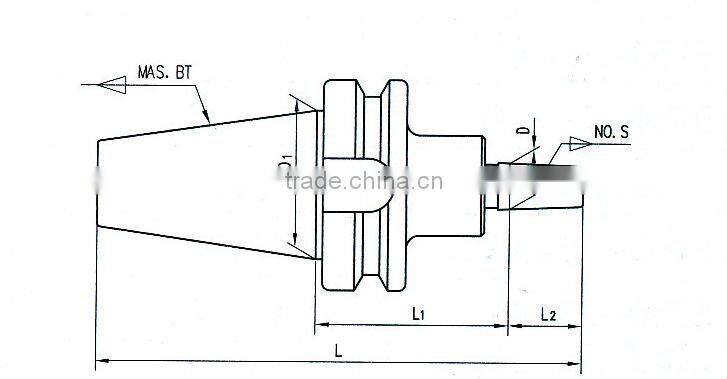

Item NO. BT-NO.S-L1 L2 L D D1 Drawbar thread Wt(kg)
56190301 BT30-J1-45 16.669 110 9.754 31.75 M12 0.60
56190302 BT30-J2-45 22.225 115.6 14.199 31.75 M12 0.70
56190303 BT30-J3-45 30.956 124.4 20.599 31.75 M12 0.80
56190304 BT30-J4-45 42.069 135.4 28.55 31.75 M12 0.85
56190305 BT30-J5-45 47.625 141 35.89 31.75 M12 0.90
56190306 BT30-J6-45 25.4 118.8 17.17 31.75 M12 0.75
56190307 BT30-J33-45 25.4 118.8 15.85 31.75 M12 0.75
56190308 BT30-B10-45 14.5 107.9 10.094 31.75 M12 0.60
56190309 BT30-B12-45 18.5 111.9 12.065 31.75 M12 0.60
56190310 BT30-B16-45 24 117.4 15.733 31.75 M12 0.70
56190311 BT30-B18-45 32 125.4 17.78 31.75 M12 0.82
56190312 BT40-J1-45 16.669 127.1 9.754 44.45 M16 1.15
56190313 BT40-J2-45 22.225 132.6 14.199 44.45 M16 1.25
56190314 BT40-J2S-45 19.05 129.4 13.94 44.45 M16 1.20
56190315 BT40-J3-45 30.956 141.4 20.599 44.45 M16 1.45
56190316 BT40-J4-45 42.069 152.5 28.55 44.45 M16 1.55
56190317 BT40-J5-45 47.625 158 35.89 44.45 M16 1.60
56190318 BT40-J6-45 25.4 135.8 17.17 44.45 M16 1.30
56190319 BT40-J33-45 25.4 135.8 15.85 44.45 M16 1.30
56190320 BT40-B10-45 14.5 124.9 10.094 44.45 M16 1.40
56190321 BT40-B10-120 14.5 199.9 10.094 44.45 M16 1.76
56190322 BT40-B12-45 18.5 128.9 12.065 44.45 M16 1.34
56190323 BT40-B16-32 24 121.4 15.733 44.45 M16 1.40
56190324 BT40-B16-45 24 134.4 15.733 44.45 M16 1.45
56190325 BT40-B16-75 24 164.4 15.733 44.45 M16 1.55
56190326 BT40-B16-90 24 179.4 15.733 44.45 M16 1.40
56190327 BT40-B18-45 32 142.4 17.78 44.45 M16 1.70
56190328 BT40-B18-75 32 172.4 17.78 44.45 M16 1.76
56190329 BT50-J1-45 16.669 163.5 9.754 69.85 M24 3.60
56190330 BT50-J2-45 22.225 169 14.199 69.85 M24 3.95
56190331 BT50-J2S-45 19.05 165.9 13.94 69.85 M24 3.90
56190332 BT50-J3-45 30.956 177.8 20.599 69.85 M24 3.70
56190333 BT50-J4-45 42.069 188.9 28.55 69.85 M24 3.75
56190334 BT50-J5-45 47.625 194.4 35.89 69.85 M24 3.80
56190335 BT50-J6-45 25.4 172.2 17.17 69.85 M24 4.00
56190336 BT50-J33-45 25.4 172.2 15.85 69.85 M24 4.00
56190337 BT50-B10-45 14.5 161.3 10.094 69.85 M24 3.60
56190338 BT50-B12-45 18.5 165.3 12.065 69.85 M24 3.60
56190339 BT50-B16-75 24 200.8 15.733 69.85 M24 3.74
56190340 BT50-B16-90 24 215.8 15.733 69.85 M24 3.78
56190341 BT50-B18-45 32 178.8 17.78 69.85 M24 3.70





According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm
