DIN END MILL ADAPTERS

DIN END MILL ADAPTERS thumbnail-1
DIN END MILL ADAPTERS photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Eagle
Model Number:
DIN END MILL ADAPTERS
Contact Supplier Request Quote Chat Now
Eagle Industries, Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Eagle
Model Number DIN END MILL ADAPTERS

Specifications

Made from carburized alloy steel, work surface hardness to HRC58~62.

DIN--END MILL ADAPTERS

Features:


1.Made from carburized alloy steel, work surface hardness to HRC58~62.


2.Taper accurary≤ AT3, ensure well contact with spindle cone for high speed

   running to protect the spindle.



3.Concentrictity and runout ≤0.005mm in high rpm.

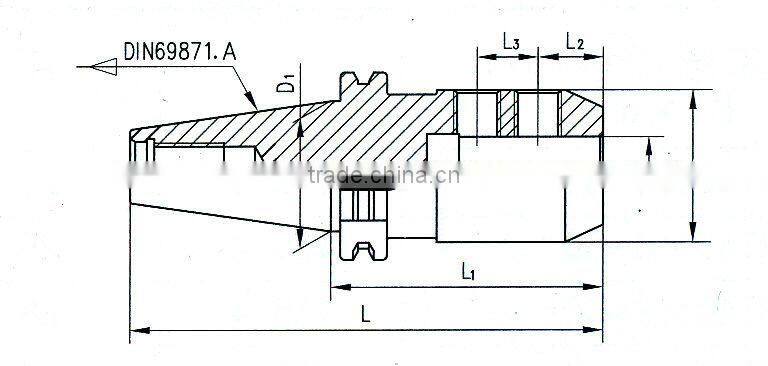

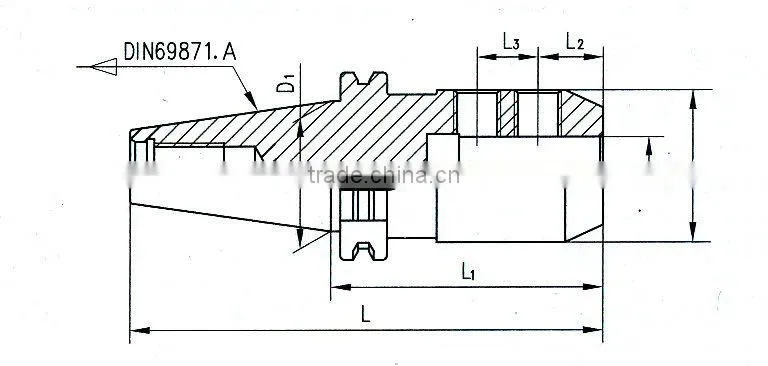

 DIN END MILL ADAPTERS





Item NO. Order No.DIN69871.A×d-L1 L D D1 L2 L3 Wt(kg)
56190601 DIN69871.A30×6-50 97.8 25 31.75 18

 0.58
56190602 DIN69871.A30×8-50 97.8 28 31.75 18 0.64
56190603 DIN69871.A30×10-50 97.8 35 31.75 20 0.72
56190604 DIN69871.A30×12-50 97.8 42 31.75 22.5 0.80
56190605 DIN69871.A30×16-63 110.8 48 31.75 24 0.96
56190606 DIN69871.A40×6-50 118.4 25 44.45 18

 0.92
56190607 DIN69871.A40×8-50 118.4 28 44.45 18 0.96
56190608 DIN69871.A40×10-50 118.4 35 44.45 20 2.00
56190609 DIN69871.A40×12-50 118.4 42 44.45 22.5 1.12
56190610 DIN69871.A40×14-50 118.4 44 44.45 22.5 1.12
56190611 DIN69871.A40×16-63 131.4 48 44.45 24 1.20
56190612 DIN69871.A40×18-63 131.4 50 44.45 24 1.20
56190613 DIN69871.A40×20-63 131.4 52 44.45 25 1.32
56190614 DIN69871.A40×25-100 168.4 65 44.45 24 25 2.04
56190615 DIN69871.A40×32-100 168.4 75 44.45 24 28 2.24
56190616 DIN69871.A40×40-120 188.4 90 44.45 30 32 2.40
56190617 DIN69871.A50×6-63 164.75 25 69.85 18

 3.30
56190618 DIN69871.A50×8-63 164.75 28 69.85 18 3.40
56190619 DIN69871.A50×10-63 164.75 35 69.85 20 3.42
56190620 DIN69871.A50×12-63 164.75 42 69.85 22.5 3.42
56190621 DIN69871.A50×14-63 164.75 44 69.85 22.5 3.44
56190622 DIN69871.A50×16-63 164.75 48 69.85 24 3.46
56190623 DIN69871.A50×18-63 164.75 50 69.85 24 3.48
56190624 DIN69871.A50×20-63 164.75 52 69.85 25 4.24
56190625 DIN69871.A50×25-80 181.75 65 69.85 24 25 4.40
56190626 DIN69871.A50×32-100 201.75 72 69.85 24 28 4.52
56190627 DIN69871.A50×40-120 221.75 90 69.85 30 32 4.72







 1.When order please indicate the hilt the concrete form. If needs in the center cold and the flange water leakage hilt , please mark AD/B



2. According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm
