DIN DRILL CHUCK ARBORS

DIN DRILL CHUCK ARBORS thumbnail-1
DIN DRILL CHUCK ARBORS photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Eagle
Model Number:
DIN DRILL CHUCK ARBORS
Contact Supplier Request Quote Chat Now
Eagle Industries, Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Eagle
Model Number DIN DRILL CHUCK ARBORS

Specifications

Made from carburized alloy steel, work surface hardness to HRC58~62.

DIN DRILL CHUCK ARBORS

Features:


1.Made from carburized alloy steel, work surface hardness to HRC58~62.


2.Taper accurary≤ AT3, ensure well contact with spindle cone for high speed

   running to protect the spindle.



3.Concentrictity and runout ≤0.005mm in high rpm.





DIN DRILL CHUCK ARBORS

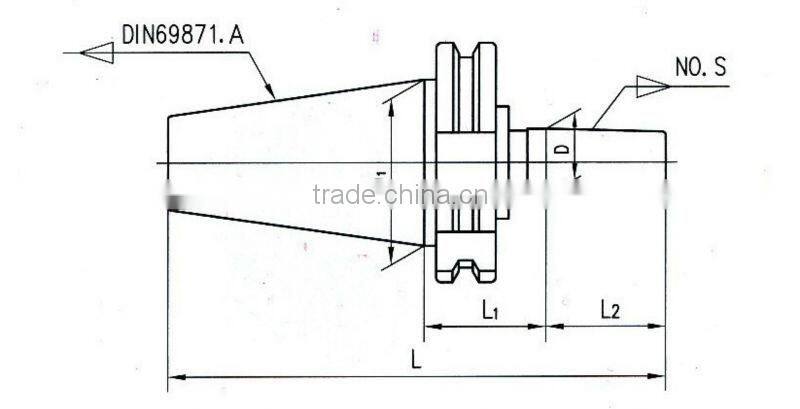

Item NO. DIN69871.A--NO.S-L1 L2 L D D1 Drawbar thread
56190401 DIN69871.A40-J0-32 11.112 111.5 6.35 44.45 M16
56190402 DIN69871.A40-J1-32 16.669 117 9.754 44.45 M16
56190403 DIN69871.A40-J2-32 22.225 122.6 14.199 44.45 M16
56190404 DIN69871.A40-J2S-32 19.05 119.5 13.94 44.45 M16
56190405 DIN69871.A40-J3-32 30.956 131.4 20.599 44.45 M16
56190406 DIN69871.A40-J4-32 42.069 142.5 28.55 44.45 M16
56190407 DIN69871.A40-J5-32 47.625 148 35.89 44.45 M16
56190408 DIN69871.A40-J6-32 25.4 125.8 17.17 44.45 M16
56190409 DIN69871.A40-J33-32 25.4 125.8 15.85 44.45 M16
56190410 DIN69871.A40-B6-32 10 110.4 6.35 44.45 M16
56190411 DIN69871.A40-B10-32 14.5 114.9 10.094 44.45 M16
56190412 DIN69871.A40-B10-45 14.5 127.9 10.094 44.45 M16
56190413 DIN69871.A40-B12-32 18.5 118.9 12.065 44.45 M16
56190414 DIN69871.A40-B16-32 24 124.4 15.733 44.45 M16
56190415 DIN69871.A40-B16-45 24 137.4 15.733 44.45 M16
56190416 DIN69871.A40-B18-32 32 132.4 17.78 44.45 M16
56190417 DIN69871.A40-B18-45 32 145.4 17.78 44.45 M16
56190418 DIN69871.A40-B22-32 40.5 140.9 21.793 44.45 M16
56190419 DIN69871.A40-B24-32 50.5 150.9 23.825 44.45 M16
56190420 DIN69871.A50-B16-45 24 170.75 15.733 69.85 M24
56190421 DIN69871.A50-J3-45 30.965 177.7 20.599 69.85 M24
56190422 DIN69871.A50-J6-45 25.4 172.1 17.17 69.85 M24
56190423 DIN69871.A50-J33-45 25.4 172.1 15.85 69.85 M24
56190424 DIN69871.A50-B16-45 24 170.8 15.733 69.85 M24
56190425 DIN69871.A50-B18-45 32 178.8 17.78 69.85 M24
56190426 DIN69871.A50-B22-60 40.5 202.3 21.793 69.85 M24
56190427 DIN69871.A50-B24-60 50.5 212.3 23.825 69.85 M24





According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm
