End Mill Adapter Best Adapter for Sale

End Mill Adapter Best Adapter for Sale thumbnail-1
End Mill Adapter Best Adapter for Sale photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Eagle
Model Number:
END MILL ADAPTERS
Contact Supplier Request Quote Chat Now
Eagle Industries, Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Eagle
Model Number END MILL ADAPTERS

Specifications

End Mill Adapter
1.Material:Made from carburized alloy steel,
2. Work surface hardness to HRC58~62.

END MILL ADAPTERS

Features:


1.Made from carburized alloy steel, work surface hardness to HRC58~62.


2.Taper accurary≤ AT3, ensure well contact with spindle cone for high speed

   running to protect the spindle.



3.Concentrictity and runout ≤0.005mm in high rpm.

end mill adapter best adapter for sale

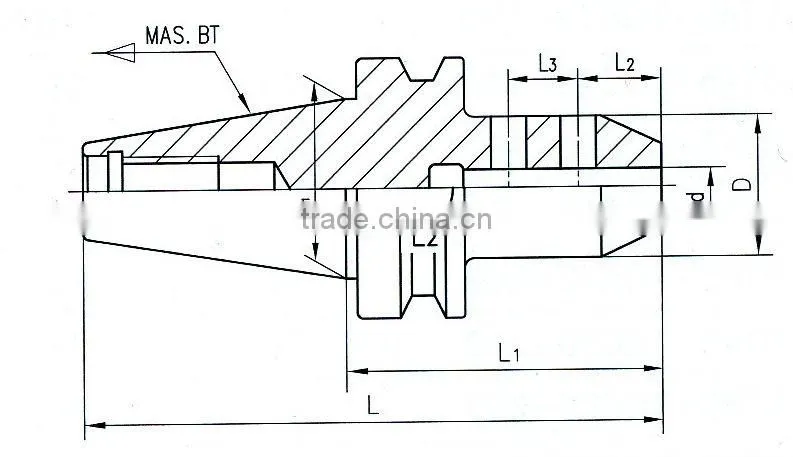

Item NO. BT×d-L1 L D D1 L2 L3 Wt(kg)
56190501 BT30×6-50 98.4 25 31.75 18

 0.66
56190502 BT30×6-60 108.4 25 31.75 18 0.72
56190503 BT30×8-60 108.4 28 31.75 18 0.80
56190504 BT30×10-60 108.4 35 31.75 20 0.83
56190505 BT30×10-80 128.4 35 31.75 20 0.83
56190506 BT30×12-60 108.4 42 31.75 22.5 0.88
56190507 BT30×14-60 108.4 44 31.75 22.5 1.02
56190508 BT30×16-75 123.4 48 31.75 24 1.04
56190509 BT30×18-75 123.4 50 31.75 24 1.26
56190510 BT30×20-75 123.4 52 31.75 25 1.36
56190511 BT30×25-90 138.4 65 31.75 24 25 1.50
56190512 BT40×6-50 115.4 25 44.45 18

 0.96
56190513 BT40×6-60 125.4 25 44.45 18 0.98
56190514 BT40×8-50 115.4 28 44.45 18 1.00
56190515 BT40×10-63 128.4 35 44.45 20 1.08
56190516 BT40×12-63 128.4 42 44.45 22.5 1.20
56190517 BT40×14-63 128.4 44 44.45 22.5 1.22
56190518 BT40×16-63 128.4 48 44.45 24 1.24
56190519 BT40×16-70 135.4 48 44.45 24 1.30
56190520 BT40×18-63 128.4 50 44.45 24 1.36
56190521 BT40×20-63 128.4 52 44.45 25 1.36
56190522 BT40×20-70 135.4 52 44.45 25 2.10
56190523 BT40×25-90 155.4 65 44.45 24 25 2.07
56190524 BT40×25-100 165.4 65 44.45 24 25 2.08
56190525 BT40×32-100 165.4 72 44.45 24 28 2.25
56190526 BT40×32-110 175.4 72 44.45 24 28 2.30
56190527 BT40×40-120 185.4 90 44.45 30 32 2.50
56190528 BT40×40-140 205.4 90 44.45 30 32 2.80
56190529 BT50×6-63 164.8 25 69.85 18

 3.20
56190530 BT50×8-63 164.8 28 69.85 18 3.23
56190531 BT50×10-63 164.8 35 69.85 20 3.24
56190532 BT50×12-80 181.8 42 69.85 22.5 3.36
56190533 BT50×16-80 181.8 48 69.85 24 3.48
56190534 BT50×20-80 181.8 52 69.85 25 3.52
56190535 BT50×25-100 201.8 65 69.85 24 25 4.28
56190536 BT50×25-105 206.8 65 69.85 24 25 4.30
56190537 BT50×25-150 251.8 65 69.85 24 25 4.35
56190538 BT50×25-200 301.8 65 69.85 24 25 4.40
56190539 BT50×32-100 201.8 72 69.85 24 28 4.44
56190540 BT50×32-105 206.8 72 69.85 24 28 4.56
56190541 BT50×40-115 216.8 90 69.85 30 32 4.58
56190542 BT50×40-120 221.8 90 69.85 30 32 4.58
56190543 BT50×50-150 251.8 100 69.85 35 35 4.90









 1.When order please indicate the hilt the concrete form. If needs in the center cold and the flange water leakage hilt , please mark AD/B



2. According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm
