Engine Lathe
- QINGDAO
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Place of Origin | Shandong, China | |
| Brand Name | Eagle | Model Number | LE5841/5846 | |
| Certification | CE |
Product Description

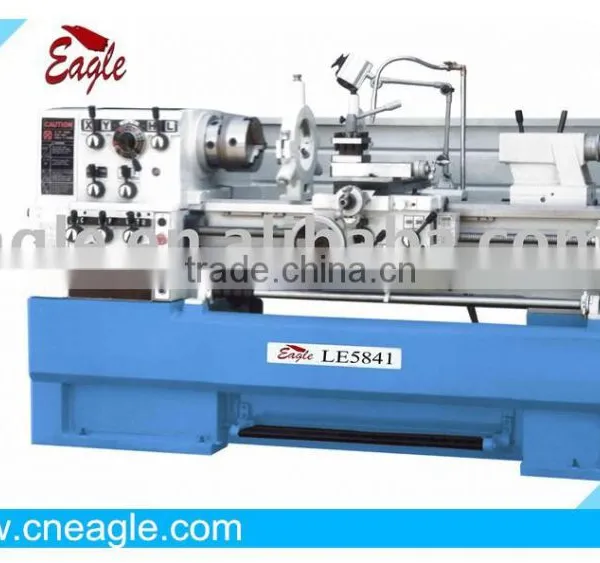

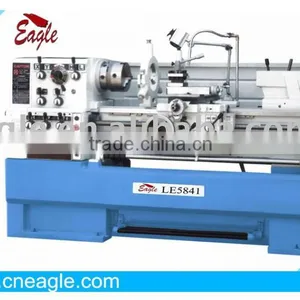

Bench lathe:LE5841/5846
Feature:
1,Precision ground and supersonic frequency hardened bed way is designed in double wall structure, giving superb rigidity.
2,The spindle system is high in rigidity and accuracy.
3,The design of the main drive is optimized and the gears in the headstock are precision ground.
4,The noise of the machine is low.
5,There is no need for change gears.
6,The machine can turn about 200 kinds of metric, whit worth, module and D.P. threads.
7,An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and eliable.
8,Apedal braking device providing quick and effective stop while operating.
| Model | Unit | LE5841×1000 | LE5841×1500 | LE5846×1000 | LE5846×1500 |
| Max. swing over bed | mm | 410 | 460 | ||
| Max. swing over cross slide | mm | 224 | 274 | ||
| Max. swing over gap | mm | 640 | 690 | ||
| Length of gap | mm | 155 | 155 | ||
| Distance between centers | mm | 1000 | 1500 | 1000 | 1500 |
| Spindle nose | D1-6 | D1-6 | |||
| Spindle bore | mm | 58 | 58 | ||
| Taper of spindle bore | MT6 | MT6 | |||
| Number of spindle speed | 12 | 12 | |||
| Range of spindle speed | r/min | 25~2000 | 25~2000 | ||
| Range of longitudinal feeds | mm/rev | 0.031~1.7 | 0.031~1.7 | ||
| Range of cross feeds | mm/rev | 0.014~0.784 | 0.014~0.784 | ||
| Range of metric threads | mm | 0.1~14 | 0.1~14 | ||
| Range of inch threads | tpi | 2~112 | 2~112 | ||
| Taper of tailstock bore | MT4 | MT4 | |||
| Power of motor | kw | 4(optional 5.5) | 4(optional 5.5) | ||
| N.W/G.W | kg | 1670/1980 | 1970/2320 | 1720/2045 | 2020/2385 |
| Overall dimensions (L×W×H) | mm | 2250×1120×1700 | 2800×1120×1700 | 2250×1120×1700 | 2800×1120×1700 |
| Item NO. | 114045 | 114046 | 114050 | 114051 | |
| Standard accessories | Optional accessories | ||
| 3-Jaw chuck(160mm) | Brake system | Taper turning attachment | Quick change tool post |
| Change gears set | 4 jaw chuck | Live center | Chuck guard |
| Chasing dial indicator | Face plate | Work light | Digital readout(2Axis) |
| Reduction sleeve | Steady plates | Leadscrew guard | Drill chuck with arbor |
| Dead centers | Follow rest | Digital readout | |
| Splash guard | Tool box with tools | ||
| Coolant system | |||
