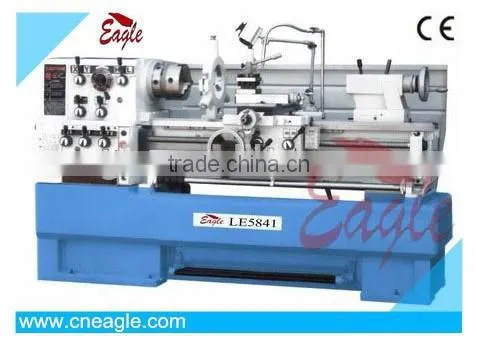

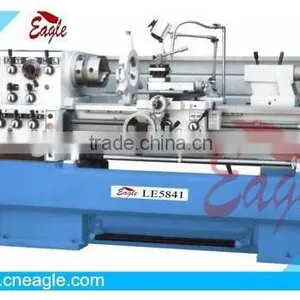

LE5841 BENCH LATHE
Negotiable
/ Set
1 Set(Min.Order)
- 300 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Place of Origin | Shandong, China | |
| Brand Name | Eagle | Model Number | LE5841 | |
| Certification | CE | |||
| Dimension(L*W*H) | 2250*1120*1700mm | Power(W) | 4/5.5kw |
Product Description
LE5841 BENCH LATHE
Feature:
- Precision ground and supersonic frequency hardened bed way is designed in double wall structure, giving superb rigidity.
- The spindle system is high in rigidity and accuracy.
- The design of the main drive is optimized and the gears in the headstock are precision ground.
- he noise of the machine is low.
- There is no need for change gears.
- The machine can turn about 200 kinds of metric, whit worth, module and D.P. threads.
- An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe.
- A pedal braking device providing quick and effective stop while operating.
specifications:
| Model | Unit | LE5841×1000 | LE5841×1500 | LE5846×1000 | LE5846×1500 |
| Max. swing over bed | mm | 410 | 460 | ||
| Max. swing over cross silde | mm | 224 | 274 | ||
| Max. swing over gap | mm | 640 | 690 | ||
| Length of gap | mm | 155 | 155 | ||
| Distance between centers | mm | 1000 | 1500 | 1000 | 1500 |
| Spindle nose | D1-6 | D1-6 | |||
| Spindle bore | mm | 58 | 58 | ||
| Taper of spindle bore | MT6 | MT6 | |||
| Number of spindle speed | 12 | 12 | |||
| Range of spindle speed | r/min | 25~2000 | 25~2000 | ||
| Range of longitudinal feeds | mm/rev | 0.031~1.7 | 0.031~1.7 | ||
| Range of cross feeds | mm/rev | 0.014~0.784 | 0.014~0.784 | ||
| Range of metric threads | mm | 0.1~14 | 0.1~14 | ||
| Range of inch threads | TPI | 2~112 | 2~112 | ||
| Taper of tailstock bore | MT4 | MT4 | |||
| Power of motor | kw | 4(optional 5.5) | 4(optional 5.5) | ||
| N.W/G.W | kg | 1670/1980 | 1970/2320 | 1720/2045 | 2020/2385 |
| Overall dimensions (L×W×H) | mm | 2250×1120×1700 | 2800×1120×1700 | 2250×1120×1700 | 2800×1120×1700 |
| Item NO. | 114045 | 114046 | 114050 | 114051 | |
| Standard accessories | Optional accessories | ||||
| 3-Jaw chuck(160mm) | Splash guard | Face plate | Taper turning attachment | Digital readout | |
| Change gears set | Coolant system | Steady plates | Quick change tool post | Chuck guard | |
| Chasing dial indicator | Brake system | Follow rest | Digital readout(2Axis) | Live center | |
| Reduction sleeve | 4 jaw chuck | Dead centers | Drill chuck with arbor | Work light | |
| Tool box with tools | Leadscrew guard | ||||
