Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Place of Origin: | Shandong, China | Brand Name: | Eagle | Model Number: | G1324 |
Certification: | CE |
Product Description

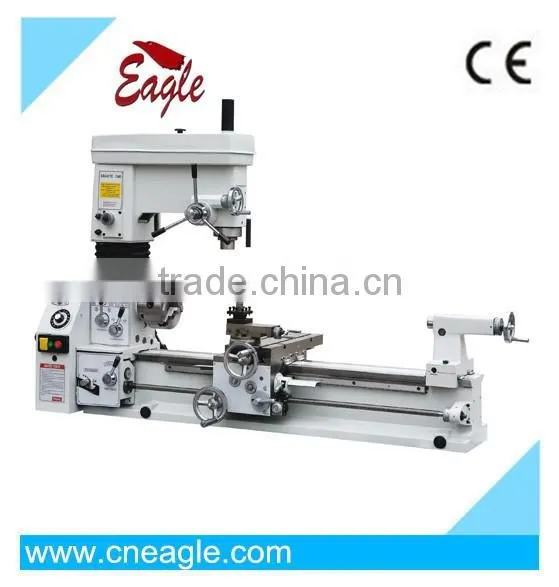

G1324 MULTI-PURPOSE MACHINE
Feature:
INTRODUCTION:
This machine can carry out turning, drilling ,milling, boring and thread-cutting.It is widely used for single or mass production of small and medium-sized parts.
MAIN FEATURES:
Infinitely variable speed /Wide range and high spindle speed
/Wide range of metric and inch thread-cutting /
Power-driven in longitudinal and cross directions,
thread-cutting, safe interlock /lengthened table
/power-driven-table for milling /a overload safety device
/quick change between turning and drilling-milling/motor quickly adjusted /cam-locking chuck
STANDARD ACCESSORY
/drilling chuck /drill taper stock/milling shank/drawing bar /center /exchange gear/tools
OPTIONAL ACCESSORY
/stand /milling chuck /milling cutter/steady rest/follow rest /live center
SPECIFICATIONS | G1324 | G1340 | ||
Swing diameter over bed | 330mm | 13" | 330mm | 13" |
Swing diameter over table | 190mm | 7.5" | 190mm | 7.5" |
Distance between centers | 610mm | 24" | 990mm | 39" |
Spindle bore | 28mm | 1.1" | 28mm | 1.1" |
Spindle speed | 50~3000r/min | 50~3000r/min | ||
Longitudinal stroke | 510mm | 20" | 890mm | 35" |
Cross stroke | 185mm | 7.3" | 185mm | 7.3" |
Small toolpost stroke | 70mm | 2.75" | 70mm | 2.75" |
Metric pitch/grade | 0.35~6.5MM/24 | 0.35~6.5MM/24 | ||
Inch pitch/grade | 7~52T.P.I/21 | 7~52T.P.I/21 | ||
Longitudinal feed/grade | 0.067~0.5MM/R/21 | 0.067~0.5MM/R/21 | ||
Cross feed/grade | 0.021~0.157MM/R/21 | 0.021~0.157MM/R/21 | ||
Milling-drilling spindle taper | MT3 | R8 | MT3 | R8 |
Milling-drilling spindle stroke | 127mm | 5" | 127mm | 5" |
Milling-drilling box stroke | 110mm | 4.33" | 110mm | 4.33" |
Area of table | 450×150mm | 17.7"×5.9" | 450×150mm | 17.7"×5.9" |
Drilling diameter | 24mm | 0.95" | 24mm | 0.95" |
Power of motor | 1.5HP(1.1KW) | 1.5HP(1.1KW) | ||
N.W./G.W. of machine | 300/350kg | 330/390kg | ||
Overall dimensions of machine | 1325×585×1030mm | 1705×585×1030mm | ||
Case dimensions of machine | 1260×470×1100mm | 1640×470×1100mm | ||
Case dimensions of stand | Left:760×450×410mm | Right:760×450×350mm | ||
Item No. | 113035 | 113040 |
