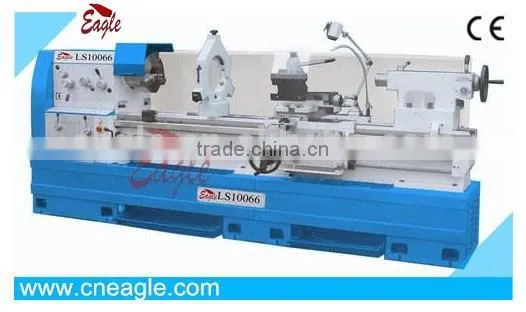

Big Bore horizonta Lathe

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Bench lathe:LS10060

Feature:

1,Precision ground.

2,Clutched head stock.

3,CE-conformity.

4,Safety torque limiting device for lead screw.

5,Safety overload clutch for feedrod.

6,Rapid traverse (optional).

7,Main spindle supported at 2 points with precision taper roller bearings.

8,2500~3000mm Lathe with follow chip cuard.

Model	Unit	LS10060×1000	LS10060×1500	LS10060×2000	LS10060×3000
Max. swing over bed	mm	600
Max. swing over cross slide	mm	375
Max. swing over gap	mm	800
Valid length of gap	mm	280
Distance between centers	mm	1000	1500	2000	3000
Spindle bore	mm	103
Spindle nose		ISO-C11 or ISO-D11
Number of spindle speed		CCW18 CW6
Range of spindle speed	r/min	9~1275 16~816
Range of longitudinal feeds	mm/rev	0.073~4.066
Range of cross feeds	mm/rev	0.036~2.033
Range of metric threads	mm	0.5~112
Range of inch threads	inch	56~1/4
Module threads range		0.5~7
Dia. of tailstock sleeve	D.P	56~4
Diameter of tailstock sleeve	mm	90
Taper of tailstock bore		Morse NO.6
Travel of tailstock sleeve	mm	150
Cross adjustment range	mm	10
Power of motor	kw	7.5 or 11
Power of quick-travel motor	w	250
Power of coolant pump	w	125
N.W/G.W	kg	2900/3500	3150/3750	3400/4050	3800/4450
Overall dimensions (L×W×H)	mm	2820×1300×2100	3320×1300×2100	3820×1300×2100	4820×1300×2100
Item NO.		115064	115065	115066	115067

Standard accessories	Optional accessories
3-Jaw chuck(160mm)	4-jaw chuck(200mm)
Change gears set	Face plate
Tool box with tools	Thread dial
Oil gun	Longitudinal automatic trip
Driving plate	Live center
Center center sleeve	Steady plates
	Follow rest
	Quick change toolpost
	Taper copy ruler
	4-position longitudinal automatic trip
