Help CenterLB3833 Light Lathe Machinery
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Horizontal
CNC or Not
Normal
Max. Swing Diameter
330mm
Place of Origin
Shandong, China
Brand Name
EAGLE
Model Number
LB3833 Light Lathe machinery
Power(W)
1.1/1.5kw
Dimension(L*W*H)
1680*750*1396mm
Weight
net/gross weight: 574/671kg
Certification
CE
After-sales Service Provided
No overseas service provided
Specifications
LB3833 Light Lathe machinery1).Pass CE Gost
2).Max. swing over bed 330mm
3).Distance between centers 1080mm

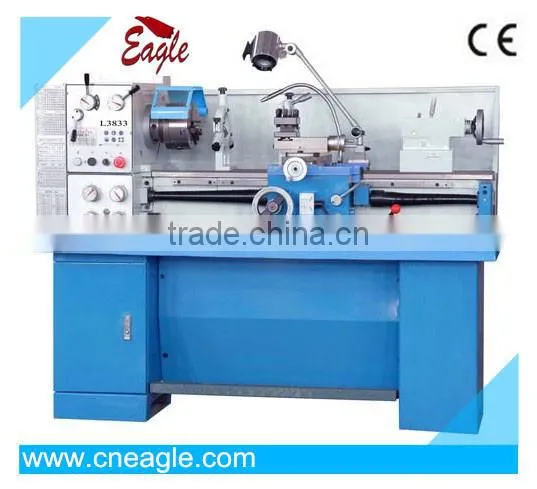

LB3833 Light Lathe machinery
Feature:
-Precision ground and supersonic frequency hardened bed ways.
-The spindle is supported with precision roller bearing.
-Headstock gears are made of high quality steel, ground and hardened.
-Removable gap is provided for larger diameter work.
-Easy operating gear box has various feeds and thread cutting funct
specifications:
| Model | Unit | LB3833 | Standard accessories | Optional accessories | |
| Max. swing over bed | mm | 330 | 3-Jaw chuck(160mm) | Drill chuck with arbor | |
| Max. swing over cross slide | mm | 180 | Change gears set | Work light | |
| Max. swing over gap | mm | 470 | MT3 dead centers | Foot brake system | |
| Distance between centers | mm | 1080 | Tool box with tools | Coolant system | |
| Spindle bore | mm | 38 | Oil gun | Leadscrew guard | |
| Taper of spindle bore | MT5 | MT5/3 sleeve | 4-jaw chuck(200mm) | ||
| Range of spindle speed | r/min | 65~1810 | Foot stands | Face plate | |
| Range of longitudinal feeds | mm/rev | 0.0527~1.29 | Splash guard | Steady plates | |
| Range of cross feeds | mm/rev | 0.011~0.276 | Oil tray | Follow rest | |
| Range of metric threads | mm | 0.4~7 | MT3 live center | ||
| Range of inch threads | TPI | 4~60 | Localizer | ||
| Max. size of tool shank | mm | 14×14 | Clutch for fees rod | ||
| Taper of tailstock bore | MT3 | Quick change tool post | |||
| Power of motor | kw | 1.1/1.5 | Chuck guard | ||
| N.W/G.W | kg | 574/671 | Digital readout(2Axis) | ||
| Overall dimensions (L×W×H) | mm | 1680×750×1396 | |||
| Item NO. | 111060 |
