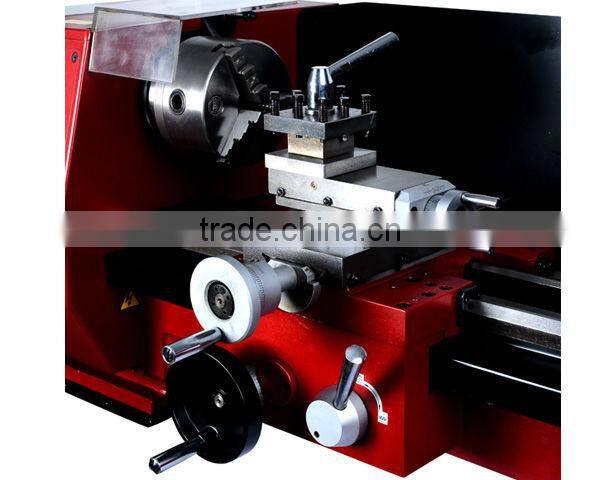

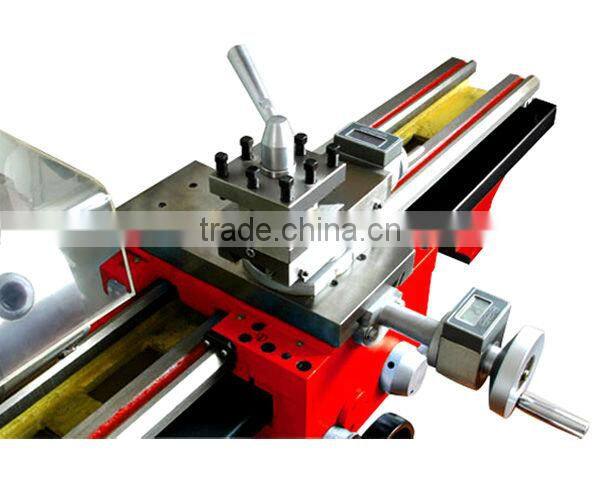

China Lathe Machines Bench Lathe
Negotiable
/ Set
10 Sets(Min.Order)
- 200 Set / Sets per Month
- Qingdao
- T/T
You May Like
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Automatic | Max. Swing Diameter: | 250mm | Place of Origin: | Shandong, China |
Brand Name: | Eagle | Model Number: | BL250 | Voltage: | 220V |
Power(W): | 550W | Dimension(L*W*H): | 1170*640*580mm | Weight: | 145/180kg |
After-sales Service Provided: | No overseas service provided |
Product Description
Specifications
Near silent runningIntegral splash guard
Metric and Imperial thread cutting
Bench Lathe
Specifications
Swing over bed | 250mm | |
Distance between centers | Model 400 | 400mm |
Model 550 | 550mm | |
Hole through spindle | 20mm | |
Spindle taper | MT3 | |
Tailstock taper | MT2 | |
Cross slide travel | 110mm | |
Compound travel | 75mm | |
Range of thread | Metric version | 0.4-3.0mm(12 threads pitches) |
Imperial version | 10-44TPI(8 threads pitches | |
Motor output power | 800W | |
Spindle speed(Variable speed) | 0-2000 ±10% rpm | |
Overall dimension(L×W×H) | Model 400 | 1040×600×450mm |
Model 550 | 1140×600×450mm | |
Packing size(L×W×H) | Model 400 | 1070×640×580mm |
Model 550 | 1170×640×580mm | |
Weight (Net/Gross) | Model 400 | 125/160kg |
Model 550 | 145/180kg | |
Model | Model 400 | BL250B-400 |
Model 550 | BL250B-550 | |
Item Number | Model 400 | 100119 |
Model 550 | 100120 |
Standard attachment |
125mm 3-jaw chuck |
MT2 center |
Change gear set |
Wrench set |
Oil can |
Key Feature
- • Near silent running
- • Integral splash guard
- • Metric and Imperial thread cutting
- • Full range of accessories available
- • Converts to a multi-purpose machine with the milling attachme
- • Medium capacity, high quality lathe suitable for workshop or school use
Optional Accessories
Serial No. | Item Description |
S/N:10017 | Stand for Model 400 |
S/N:10018 | Stand for Model 550 |
Overall demension: 1060*440*850mm | |
S/N:10019 | Steady rest |
S/N:10020 | Follow rest |
S/N:10022 | Cutter 11 pieces set |
DIN 4971R Straight cutter | |
DIN 4972R Angle cutter | |
DIN 4973R Bore cutter | |
DIN 4974R Bore cutter | |
DIN 4975 Tip cutter | |
DIN 4976 Wide edge cutter | |
DIN 4977R Right external turning cutter | |
DIN 4978R External turning cutter | |
DIN 4980L Left angle cutter | |
DIN 4980R Right angle cutter | |
DIN 4981R Cutter | |
S/N:10023 | Face plate 220mm |
S/N:10023A | Clamping kit for face plate |
S/N:10024 | Rolling center MT#2 |
S/N:10025 | 4-jaw chuck 125mm |
S/N:10025A | 4-jaw chuck 125mm with flange |
S/N:10026 | Quick change cutter rest |
S/N:10027 | Tailstock chuck |
Dia.13mm+MT#2 | |
S/N:10060 | Vertical slider |
Slot size 50mm | |
S/N:10063 | Wood toolrest with center |
S/N:10131B | Grinding attachment |
Spindle speed 0-6000±10%rpm | |
Wheel size 80*20*10mm | |
Motor output power 250W | |
Net/Gross weight 4/5kg | |
S/N:10131-1 | Wheel replacement |
S/N:10149 | Mill chuck set(metric) |
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm | |
S/N:10149A | Mill chuck set(Imperial) |
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm | |
S/N:10151 | DRCD kit |
S/N:10198 | Lux cutter set with box 10x10 mm |
DIN 4971R Straight cutter | |
DIN 4972R Angle cutter | |
DIN 4973R Bore cutter | |
DIN 4974R Bore cutter | |
DIN 4975 Tip cutter | |
DIN 4976 Wide edge cutter | |
DIN 4977R Right external turning cutter | |
DIN 4978R External turning cutter | |
DIN 4980L Left angle cutter | |
DIN 4980R Right angle cutter | |
DIN 4981R Cutter | |
S/N:10201 | Cutting set 10mm(Tin Coated) |
DIN 4977R Right external turning cutter | |
DIN 4980L left cutter | |
DIN 4980R Right cutter | |
DIN 4975R Thread cutter | |
DIN 4981R Cutter | |
S/N:10201-1 | Tip replacement |
