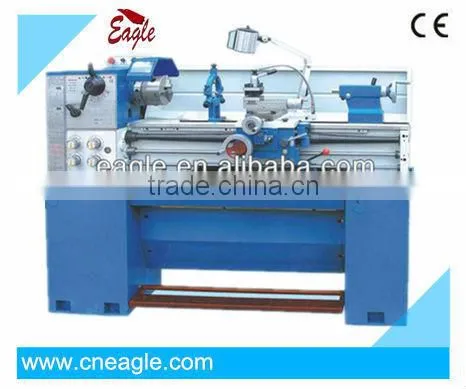

China Lathe Machine Lathe

Name: China Lathe Machine Lathe
Brand: Eagle
SKU: 140923942
Availability: InStock

Eagle Industries, Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Automatic

Max. Swing Diameter 360mm

Place of Origin Shandong, China

Brand Name Eagle

Model Number LB6232

Voltage 380V

Power(W) 1.5 kw

Dimension(L*W*H) 195*75*151cm

Weight 740kg

Certification CE

After-sales Service Provided No overseas service provided

Specifications

Precision ground and supersonic frequency hardened bed ways.
CE Standard

Lathe

Model	LB6232×750 / LB6232×1000	LB6236×750 / LB6236×1000
Item Number	111029 / 111028	111022 / 111017
Max.swing over bed	330mm(13")	360mm(14")
Max.swing over cross slide	198mm(7-25/32“)	212mm(8-1/6")
Max.swing over gap	476mm(18-3/4")	491mm(9-1/3")
Admits between centers	750mm(30") 1000mm(40”)	750mm(30") 1000mm(40")
Spindle bore	38mm(1-1/2“)	38mm(1-1/2”)
Taper of spindle bore	NO:5 morse	NO:5 morse
Range of spindle speed	70-2000r.p.m (2speed motor)
Range of horizontal feeds	20 Nos.0.052-1.392mm/r 16 Nos.0.078-1.044mm/r
Range of cross feeds	20 Nos.01014-0.38mm/r 15 Nos.0.018-0.238mm/r
Range of metric threads	26 Nos.0.4-7mm 32 Nos.0.45-10mm
Range of inch threads	34 Nos.56-4 T/inch 20 Nos.40-2.5 T /inch
Max.Travle of tail stock quill	100mm(4")	100mm(4")
Taper of tail stock quill	NO:3 morse	NO:3 morse
Power of motor	1.5 KW	1.5 KW
Packing Size	1740/19507501510mm
Net Weight	570/640KG	620/690KG
Gross Weight	620/690KG	670/740KG
