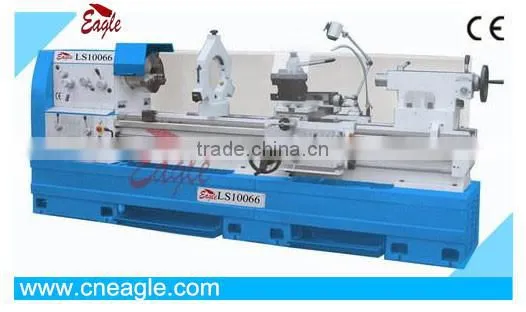

LS10066*1000 BENCH LATHE

Name: LS10066*1000 BENCH LATHE
Brand: EAGLE
SKU: 140923934
Availability: InStock

Eagle Industries, Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Max. Swing Diameter 435mm

Place of Origin Shandong, China

Brand Name EAGLE

Model Number LS10066*1000 BENCH LATHE

Certification CE

After-sales Service Provided No overseas service provided

Specifications

LS10066*1000 BENCH LATHE
1,CE standard
2,Max. swing dia. over bed 600mm
3,2500~3000mm Lathe with follow chip cuard.

LS10066*1000 BENCH LATHE

Feature:

specifications:

Model	Unit	LS10066×1000
Max. swing over bed	mm	660
Max. swing over cross slide	mm	435
Max. swing over gap	mm	860
Valid length of gap	mm	280
Distance between centers	mm	1000
Spindle bore	mm	103
Spindle nose		ISO-C11 or ISO-D11
Number of spindle speed		CCW18 CW6
Range of spindle speed	r/min	9~1275 16~816
Range of longitudinal feeds	mm/rev	0.073~4.066
Range of cross feeds	mm/rev	0.036~2.033
Range of metric threads	mm	0.5~112
Range of inch threads	inch	56~1/4
Module threads range		0.5~7
Dia. of tailstock sleeve	D.P	56~4
Diameter of tailstock sleeve	mm	90
Taper of tailstock bore		Morse NO.6
Travel of tailstock sleeve	mm	150
Cross adjustment range	mm	10
Power of motor	kw	7.5 or 11
Power of quick-travel motor	w	250
Power of coolant pump	w	125
N.W/G.W	kg	3000/3600
Overall dimensions (L×W×H)	mm	2820×1300×2100
Item NO.		115068

Standard accessories	Optional accessories
3-Jaw chuck(160mm)	Steady plates	4-jaw chuck(200mm)
Change gears set	Follow rest	Taper copy ruler
Tool box with tools	Thread dial	Quick change toolpost
Oil gun	Live center	Longitudinal automatic trip
Driving plate		4-position longitudinal
Center center sleeve	Face plate	automatic trip
