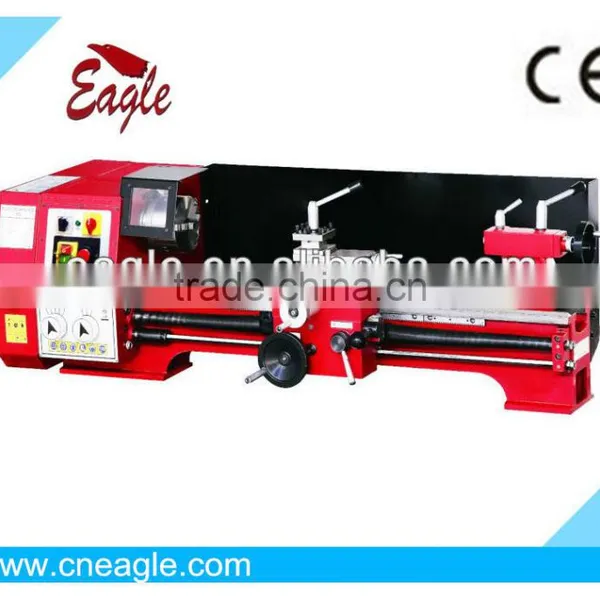

Bench Lathe

Eagle Industries, Ltd.
Bench Lathe thumbnail-1
Bench Lathe photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Automatic
Max. Swing Diameter 280mm
Place of Origin Shandong, China
Brand Name Eagle
Model Number BL280
Voltage 220V
Power(W) 735W
Dimension(L*W*H) 1500*750*630mm
Weight 145/180kg
After-sales Service Provided No overseas service provided

Specifications

Overrunning clutch

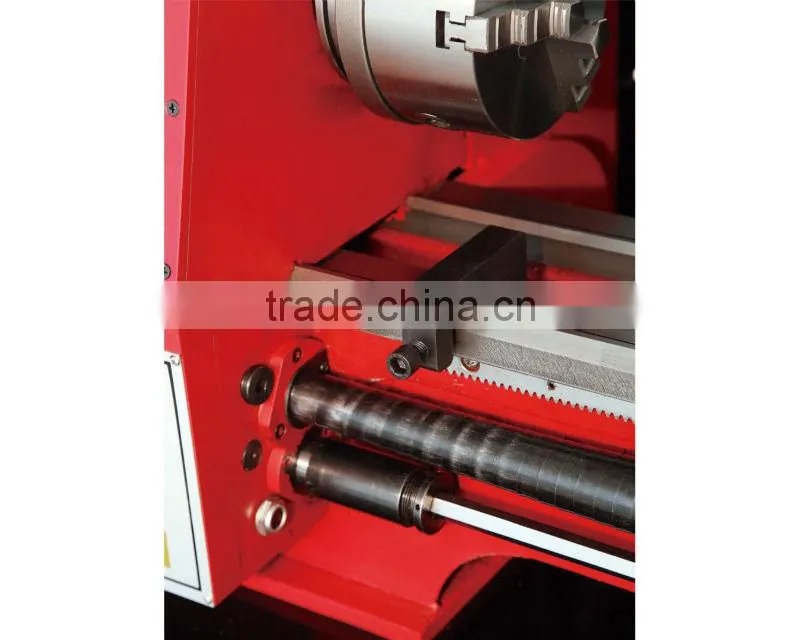

Hardened bed way
High power with large cutting capacity

Bench Lathe





Key Feature



  • • Overrunning clutch
  • • Hardened bed way
  • • High power with large cutting capacity
  • • Auto feeding on both X, Y axis
  • • Cutting all thread pitchs only adjust the gear box handles, no more need changing gears



Specifications





Swing over bed   280 mm
Distance between centers600/750 mm
Hole through spindle25 mm
Spindle taperMT4
Tailstock taperMT2
Spindle speed (6 steps)125—2000 rpm
Compound travel80 mm
Cross slide travel155 mm
Range of thread  Metric version0.25 - 2 .5 mm (14 threadspitches)
Imperial version12 - 96 TPI (9 threads pitches)
Motor output power735 W
Overall dimension (LxWxH) Model 6001350x750x630 mm
Model 7501500x750x630 mm
 Packing size  (LxWxH)     Model 6001400x890x670 mm
   Model 7501550x890x670 mm
Weight  (Net/Gross)        Model 600190/230 kg
       Model 750200/240 kg
Model                                   Model 600BL280-600
                                           Model 750BL280-750
Model                                   Model 600100122
                                           Model 750100123





Standard attachment

130mm 3-jaw chuck

Wrtnch set

MT2 cener

Oil can



OPTIONAL ACCESSOTIES



S/N:10205Steady rest
S/N:10206Follow rest
S/N:10209Stand
Overall dimension 1490*600*720mm
S/N:10207Face plate 250mm
S/N:10023AClamping kit for face plate
Bolt size 12mm
S/N:10211Mill chuck set
Chuck dia.4, 6, 8, 10, 12, 14, 16mm
S/N:10212Quick change cutter rest
S/N:10212-1Tool post
S/N:10212-2Cutter holder
S/N:1021312*12mm Cutting set(11 pcs)
DIN 4971R Straight cutter
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4975 Tip cutter
DIN 4976 Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter
DIN 4980L Left angle cutter
DIN 4980R Right angle cutter
DIN 4981R Cutter
S/N:10208Vertical slider
Bolt size 50mm
S/N:10024Rolling center MT#2
S/N:10027Tailstock chuck
Dia.13mm+MT#2
S/N:10210130mm 4-jaw chuck
S/N:10210AChuck with flange



Bench LatheBench Lathe
