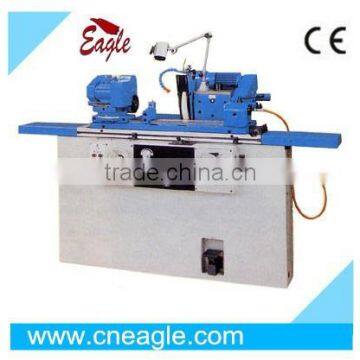

Universal Cylindrical Grinder M1412
- 100 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A
Product Details
Condition: | New | CNC or Not: | Normal | Place of Origin: | Shandong, China |
Brand Name: | Eagle | Model Number: | M1412 | Certification: | CE |
Type: | Other, Surface Grinding Machine |
Product Description

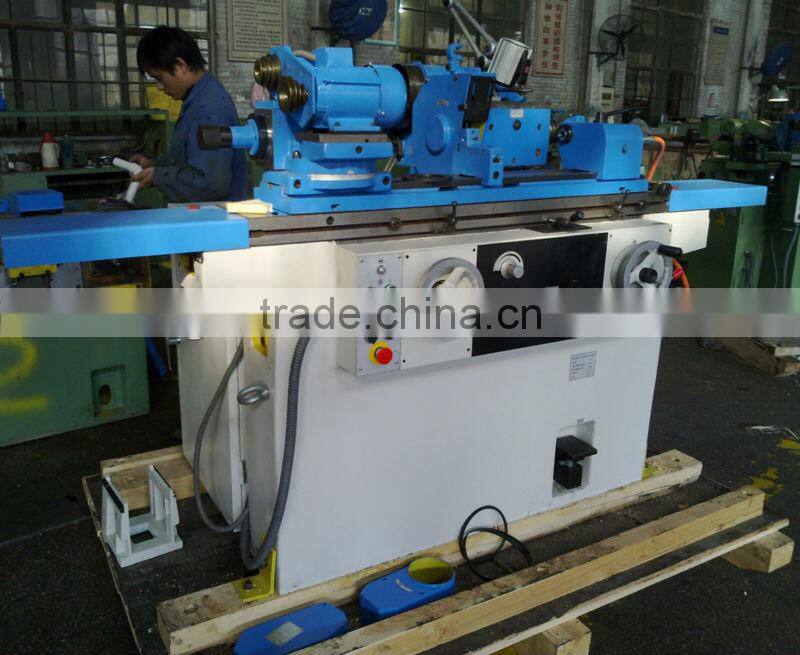

Universal Cylindrical Grinder
Features
The grinder is designed for grinding the external diameter,external conical face,internal bores,internal conical face andshoulder of medium-small sized shaft,sleeve,flange and etc.
The worktable ,workhead and wheelhead are able to be swive led for adequate angle,worktable and wheelhead can be operated hydraulically or manually,in order ro meet the needs of manufacture workshop,maintenance workshop or tool workshop.
The grinder can use center,chuck or spring collet to fix workpiece.
Specification
Model | M1412x350 | M1412x500 | |
Maximum diameter to be ground x length | mm | 125*350 | 125*500 |
minimum diameter to be ground | mm | 4 | 4 |
grinding hore range | mm | 10~40 | 10~40 |
maximun depth of hore | mm | 50 | 50 |
center height x Distance between centers | mm | 100*370 | 100*520 |
max.weight of the workpiece to be ground | kgs | 10kgs | 10kgs |
rotary degree | worktable | ±9° | ±7° |
workhead | ±45° | ±45° | |
wheelhead | ±180° | ±180° | |
maximum diameter of wheel x thickness | mm | 300x40 | 300x40 |
working accuracy | Circularity mm | 0.0015 | 0.0015 |
Cylindricity mm | 0.003 | 0.005 | |
Surface ruoghness Ra | 0.32 μ m | 0.32μ m | |
Total power of the motors | kw | 3.245 | 3.245 |
Main motor | kw | 2.2 | 2.2 |
Net weigt | kgs | 1800 | 2100 |
Gross Weight | kgs | 2000 | 2300 |
Overall dimension of the machine | LxWxH mm | 1770x1160x1300 | 2240x1160x1300 |
package dimension | LxWxH mm | 2000x1376x1830 | 2000x1376x1830 |
Item No. | 122010 | 122011 |
Standard accessories
CENTER(MORSE NO.2,NO.4) | 2pcs |
GRINDING WHEEL DRESSER | 1set |
STANDARD GRINDINGWHEEL | 2pcs |
FORK SHIFT SPANNER | 1pc |
GEINDING WHEEL FIXER FLANGE | 2sets |
GRINDING WHEEL BALANCING MANDREL | 1pc |
EXTENSION SHAFT OF INTERNAL GRINDING APPARATUS | 3pcs |
WHEEL BALANCING FRAME | 1set |
TREE-JAW CHUCK | 1set |
Product and package
