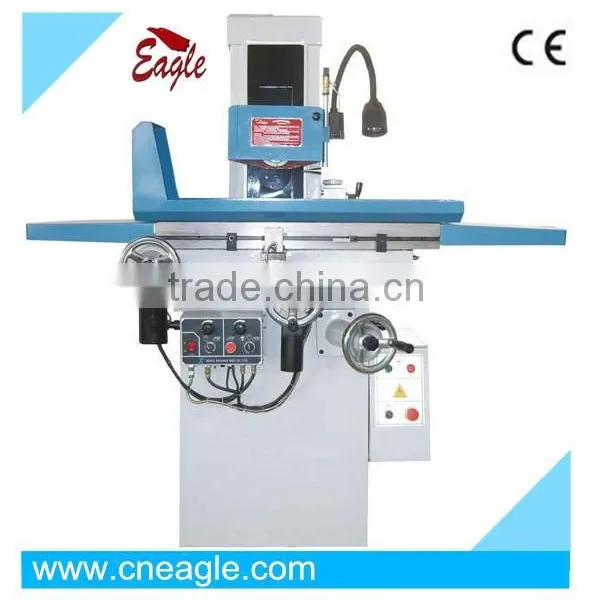

Manual Surface Grinder

Name: Manual Surface Grinder
Brand: Eagle
SKU: 140923830
Availability: InStock

Eagle Industries, Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Place of Origin:

Shandong, China

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Place of Origin Shandong, China

Brand Name Eagle

Model Number GMD 180/180A

Certification CE

Type Other, Surface Grinding Machine

Manual Surface Grinder

GMD:Manual transmissions on X,Y,Z axes
GMD A:Electric transmissions on X,Y axes; manual transmission on Z axis
GMD B:Hydraulic transmission on X axis, electric transmissions on Y axis, manual transmission on Z axis
GMD C:Hydraulic transmission on X axis,electric transmissions on Y,Z axes

Model		Units	GMD 180	GMD 180A
Table Size (L×W)		mm	460×180
Max. size to be Ground ( L×W)		mm	500×190
Number of T -Slot		mm	1×14
Distance From Table Surface To Spindle Center		mm	335
Wheel Size (dia.×width×bore )		mm	180×13×31.75
Spindle Speeds		r/min	2850
Cross Feed on Table	Auto feed	mm/min	---------
	Rapid speed	mm/min	---------	50~500
	Feed of handwheel	mm	0.02/div 2.5/rev
Vertical Feed On Handwheel		mm	0.01/div 1.25/rev
Longitudinal Speed of Table		m/min	------
Spindle Motor		kw	1.1
Cooling Motor		w	40
Hydraulic Motor		kw	------
Working Pressure		Mpa	------
Gross/Net weight		kg	750/650
Machine Size (L×W×H)		mm	1550×1150×1590
Packing Size (L×W×H)		mm	1020×1150×1760
Item NO.			121202	121204

Standard accessories
Tool box
Balance stand and balance bar
flange wrench
screw drive
Balance screw
open-end wrench
hexagonsocket wrench
wheel dresser
diamond
Mechine cushions
wheel balancing device
chuck
