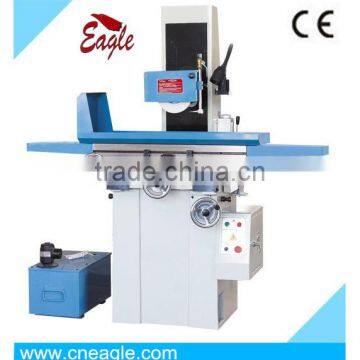

Manual Surface Grinder
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Cylindrical Grinder M1412NegotiableMOQ: 1 Set -
Universal Cylindrical Grinder UCG50150/50200/50300NegotiableMOQ: 1 Set
-
Specific Program-controlled Column Moving Surface GrinderNegotiableMOQ: 1 Set
-
Series PLC NC Column Moving Surface GrinderNegotiableMOQ: 1 Set
-
Series Column Moving Surface GrinderNegotiableMOQ: 1 Set
Condition
New
Type
Surface Grinding Machine
CNC or Not
Normal
Place of Origin
Shandong, China
Brand Name
EAGLE
Model Number
GMD 200/200B
Specifications
Manual Surface Grinder| Manual Surface Grinder | ||||
| GMD:Manual transmissions on X,Y,Z axes | ||||
| GMD A:Electric transmissions on X,Y axes; manual transmission on Z axis | ||||
| GMD B:Hydraulic transmission on X axis, electric transmissions on Y axis, manual transmission on Z axis | ||||
| GMD C:Hydraulic transmission on X axis,electric transmissions on Y,Z axes | ||||
| Model | Units | GMD 200 | GMD 200B | |
| Table Size (L×W) | mm | 480×200 | ||
| Max. size to be Ground ( L×W) |
mm | 520×220 | ||
| Number of T -Slot | mm | 1×14 | ||
| Distance From Table Surface To Spindle Center | mm | 450 | ||
| Wheel Size (dia.×width×bore ) | mm | 200×20×31.75 | ||
| Spindle Speeds | r/min | 2850 | ||
| Cross Feed on Table | Auto feed | mm/min | --------- | 0.1~7.5 |
| Rapid speed | mm/min | --------- | ||
| Feed of handwheel | mm | 0.02/div 2.5/rev |
||
| Vertical Feed On Handwheel | mm | 0.01/div 1.25/rev |
||
| Longitudinal Speed of Table | m/min | --------- | 3-20 | |
| Spindle Motor | kw | 1.1 | ||
| Cooling Motor | w | 40 | ||
| Hydraulic Motor | kw | --------- | 1.5 | |
| Working Pressure | Mpa | --------- | 3 | |
| Gross/Net weight | kg | 800/700 | 850/750 | |
| Machine Size (L×W×H) | mm | 1680×1140×1800 | ||
| Packing Size (L×W×H) | mm | 1140×1240×1940 | 1630×1140×1940 | |
| Item NO. | 121206 | 121208 | ||
| Standard accessories | ||||
| Tool box | ||||
| Balance stand and balance bar | ||||
| flange wrench | ||||
| screw drive | ||||
| Balance screw | ||||
| open-end wrench | ||||
| hexagonsocket wrench | ||||
| wheel dresser | ||||
| diamond | ||||
| Mechine cushions | ||||
| wheel balancing device | ||||
| chuck | ||||
