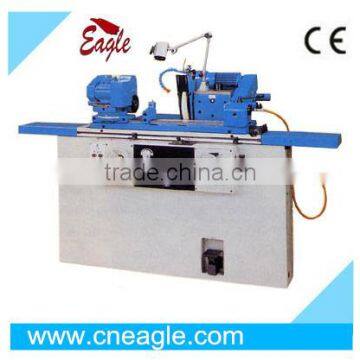

Universal Cylindrical Grinder M1412

Eagle Industries, Ltd.
Universal Cylindrical Grinder M1412 thumbnail-1
Universal Cylindrical Grinder M1412 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Universal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Universal
CNC or Not Normal
Place of Origin Shandong, China
Brand Name eagle
Model Number M1412

Specifications

Universal Cylindrical Grinder

Universal Cylindrical Grinder



Features

The grinder is designed for grinding the external diameter,external conical face,internal bores,internal conical face andshoulder of medium-small sized shaft,sleeve,flange and etc.
The worktable ,workhead and wheelhead are able to be swive led for adequate angle,worktable and wheelhead can be operated hydraulically or manually,in order ro meet the needs of manufacture workshop,maintenance workshop or tool workshop.
The grinder can use center,chuck or spring collet to fix workpiece.



Specification

Model M1412x350M1412x500
Maximum diameter to be ground x lengthmm125*350125*500
minimum diameter to be ground mm44
grinding hore rangemm10~4010~40
maximun depth of horemm5050
center height x  Distance between centersmm100*370100*520
max.weight of the workpiece to be groundkgs10kgs10kgs
rotary degreeworktable±9°±7°
workhead±45°±45°
wheelhead±180°±180°
maximum diameter of wheel x thicknessmm300x40300x40
working accuracyCircularity mm0.00150.0015
Cylindricity mm0.0030.005
Surface ruoghness Ra0.32 μ m0.32μ m
Total power of the motorskw3.2453.245
Main motorkw2.22.2
Net weigtkgs18002100
Gross Weightkgs20002300
Overall dimension of the machineLxWxH mm1770x1160x13002240x1160x1300
package dimensionLxWxH mm2000x1376x18302000x1376x1830
 Item No.122010122011



Standard accessories



CENTER(MORSE NO.2,NO.4)2pcs
GRINDING  WHEEL  DRESSER1set
STANDARD GRINDINGWHEEL2pcs
FORK SHIFT SPANNER 1pc
GEINDING WHEEL FIXER FLANGE2sets
GRINDING WHEEL BALANCING MANDREL 1pc
EXTENSION SHAFT OF INTERNAL GRINDING APPARATUS3pcs
WHEEL  BALANCING  FRAME   1set
TREE-JAW CHUCK  1set





Product and package

Universal Cylindrical Grinder M1412

Universal Cylindrical Grinder M1412
