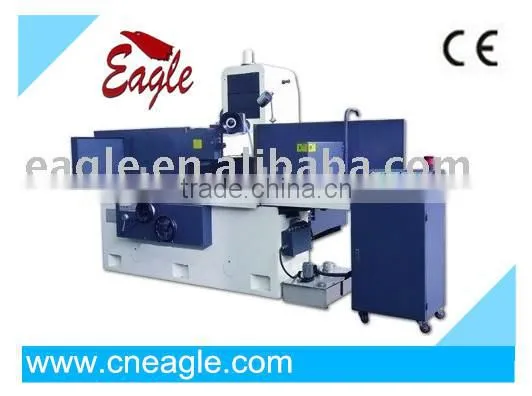

Series Column Moving Surface Grinder

Name: Series Column Moving Surface Grinder
Brand: EAGLE
SKU: 140923744
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

Normal

Eagle Industries, Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

CNC or Not Normal

Place of Origin Shandong, China

Brand Name EAGLE

Model Number GC 5010A~GC 6022B

Specifications

Series column moving surface grinder
GC A /B mean:auto feed on transverse,hydrawlic transmisson on longitudinal,rapid movement

Series column moving surface grinder
Model		Unit	GC 5010A GC 5010B	GC 5016A GC 5016B	GC 6012A GC 6012B	GC 6016A GC 6016B	GC 6022A GC 6022B
Table size		mm	500×1000	500×1600	610×1260	610×1600	610×2200
Magnetic chuck size		mm	500×1000×1	500×800×2	600×1000×1	600×800×2	600×1000×2
Max.distance from spindle center to table surface		mm	600	600	600	600	600
Longitudinal moving speed of worktable		m/min	5~25	5~25	5~25	5~25	5~25
Wheel head cross moving	Auto feed	mm/t	0.5~20	0.5~20	0.5~20	0.5~20	0.5~20
	Rapid speed	m/min	1.25	1.25	1.25	1.25	1.25
	Feed of handwheel	mm/div	0.02	0.02	0.02	0.02	0.02
Wheelhead vertica movement	Auto feed	mm/t	(A)-- (B)0.0050.010.0150.020.030.04
	Rapid speed	m/min	230	230	230	230	230
	Feed of handwheel	mm/div	0.002	0.002	0.002	0.002	0.002
Gringding wheel	speed	rpm	1450(50HZ) 1740(60HZ)
Gringding wheel	size (OD×W×ID)	mm	355×(20~50)×127
Spindle Motor		kw	7.5	7.5	7.5	7.5	7.5
Max.loading capacity of worktable(with chuck)		kg	700	880	970	1230	1690
Total power		kw	12	12	14	14	14
Height of machine (include the packing base)		mm	2390	2390	2390	2390	2390
Floor space (L×W)		mm	4700×2200	7120×2200	4000×2400	4700×2400	6000×2400
Weight		kg	5500	6000	6500	7000	8000
Item NO.			121301 121302	121311 121312	121321 121322	121331 121332	121341 121342

Explain

GC A mean:auto feed on transverse,hydrawlic transmisson on longitudinal,rapid movement on vertical.

GC B mean:auto feed on transverse,hydrawlic transmisson on longitudinal,auto feed on vertical.

Standard equipment	Optional equipment
Coolant tank	Electro magnetic chuck
Wheel dresser base	Manual parallel wheel dresser
Flange and wheel extractor	Coolant tank with magnetic separator
Srandard wheel	Coolant tank with paper filter
Balane arbor	Coolant tank with paper filter and magnetic separator
Balane stand
Working lamp
Leveling wedge and foundation bolt
Demagnetization unit
PLC auto grinding controller (only for B)
