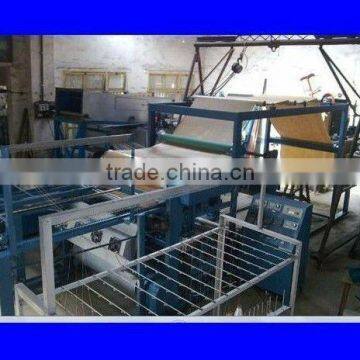

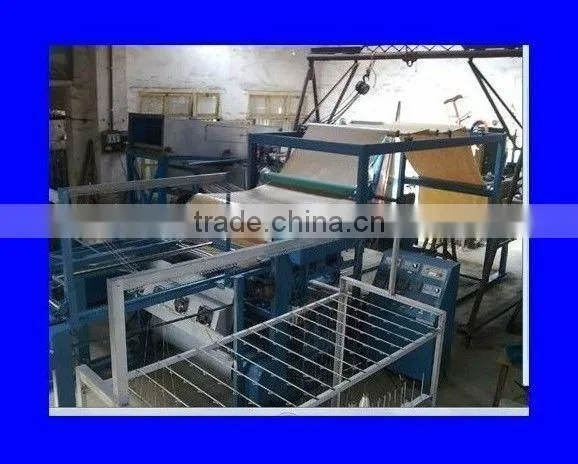

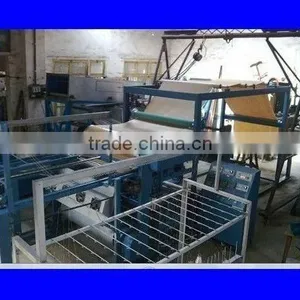

china 1250mm FSK laminating line
- 100 Set / Sets per Month
- Shanghai port
- T/T D/P D/A Credit Card
- Semi Automatic Packing Line , Toilet Roll Packaging Machine Price
- Semi Automatic Packing Line , Toilet Roll Tissue Packaging Machine
- Semi Automatic Tissue Paper Packing Machine , Tissue Rolls Packing Machine
- Tissue Rolls Packing Machine , Automatic Packing Machine
- Tissue Roll Packing Machine , Semi Automatic Toilet Roll Packing Machine
- Manual Cutter for Cutting Paper , Paper Cutting Machine Small Size
Product Details
Product Type: | Other, fsk tape | Processing Type: | Laminating Machine | Place of Origin: | Jiangsu, China |
Brand Name: | DUNCHENG | Model Number: | DH |
Product Description
Specifications
FSK laminating line1.1250mm,diamond type
2. laminating once time
3.foil ,scrim and coated kraft
FSK laminating line
1.1250mm,diamond type
2. laminating once time
3.foil ,scrim and coated kraft
FSK laminating line
1.PRODUCTION FROM THIS MACHINE
1.FSK (16mm, flat prismatic type);
2.aluminum foil with coated PE paper(max 200 gsm) ;
3.Finally production size:1250mm;
4.machine speed :10m/min;
5.machine weight:4200kgs;
6.machine size:8800x4000x2100mm.
2.DETAIL INFORMATION
1 .Unwind diameter:1000mm
2. Rewind diameter with steel wall:800mm
3. Al foil diameter:500mm
4. Paper unwind controlled by magnetic powder controller:20kg
5. Al foil unwind controlled by magnetic powder controller:10kg
6. Take up unit motor:5.5kw
7. Rewind torque motor:100N
8. Paper unwind air shaft:3”
9. Al foil unwind air shaft:3”
10. Rewind air shaft:3”
11. Take up heater roller:320x1350
12. Take up pressure rubber roller:240x1350
13. Cooling roller:240x1350
14. Round knife:105/75
15. Waster slitting blower:3kw
16. Silicon al metal Guider roller:80x1350
17. Air cylinder:120x100
18. Tool:1 set
19. Fiber knife(with nip):2 sets
20. Heater pipe:10pcs
3.Spare part:
1. Heater:15pcs
2. silicon roller:1pc
3. chain linked board for netting:100 pcs
4. needle for machine run:100 pcs
