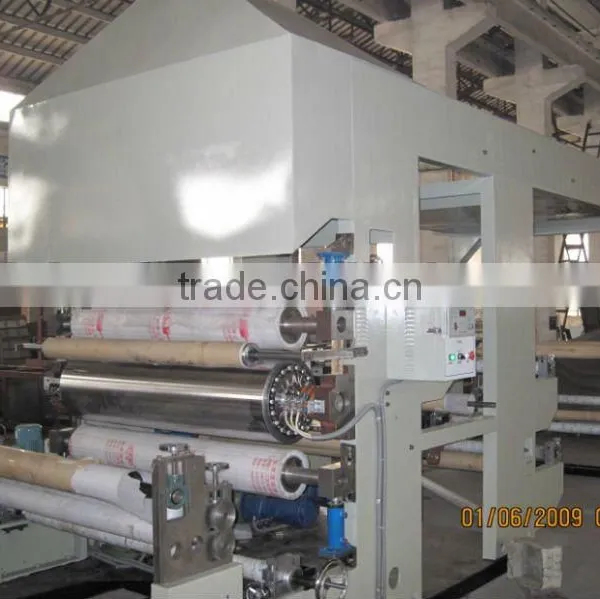

china 100mm to 2000mm dry laminating machine

Specifications

Laminating machine
1.air shaft unwind and rewind
2.BOPP,fabric ,paper and so on
3.glue water
4.laminating machine

A.machine technique parameter

1.Web for laminating:BOPP,PET,NYLON,CPP,CPE,AL,PAPER AND SO ON

2 Glue water:water-solubility  glue water

3. Web layer:2 lays

4. Width for web:600-1200mm,Roller width:1280mm

5. Rewind diameter:600mm

6. Unwind diameter:600mm

7. Oven temp:50°C-100°C(Auto- control)

8. Laminating temp:30°C-100°C(Auto- control)

9. Total power:85kw

10. Dimension:8500×1700×2500mm

11. Total weigh:6500kg

B.machine structure

 Unwind system

1. No.1Unwind frame: singlehanded, Photo electricity EPC, Rectify range ±50mm,precision: ±0.5mm

2. No.2Unwind frame: singlehanded, EPC by manual

3. Tension: Magnetic powder, Auto control ,range 0-200N/M

4. Pneumatic roller: 3”, Unwind

Glue water coating system

1. Anilox roller length: 1300mm,165mm

2. Press roll: φ120mm nitride butadiene rubber, hard 70-75 degree;

3. Glue water Pan: Stainless steel Adjustable by handle

4. Blade: Three position control Remove type ,move range ±10mm

5. Press roll: Move by air cylinder Air pressure adjustable

6. Drive motor: Inverter control

7. Guide roller: Hard metal 1080mm, 100mm

Oven system

1. Oven length: 8500mm Three temp zone

2. Oven temp: 0-100°CDigital type

3. Infrared heating: Stainless steel heating Reflect by stainless steel board 60kw

4. Blower power: 1.5kw 3pcs

5. Guide roller motor: 1.5kw

6. windy system: Recycle

7. Oven structure: Keep temp

8. Guide roll move: Step belt or chain

laminating system

1. Laminating roll: 1280mm,320mm Surface hardening and tempering, plating gard chrome

2. Laminating roll: 1280mm,220mm Silicon rubber ,hard :80 degree

3. Roll heating: Electric 8kw ,digital control

4. Remove motor: 5.5kw Inverter control

5. Rolls move: Air cylinder

Rewind system

1.Rewind diameter: 600mm

2.Pneumatic roll: 76mm

3.Tension control: Torque motor

4.EPC: By manual
