Specifications
SYXD-MZT Multi-Zonesheating Tube stove1.Inside Chamber Size:dia60x300mm( dia2.5" * 12")
2.Temperature:1500.C

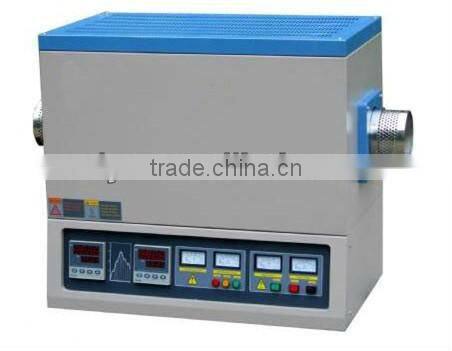

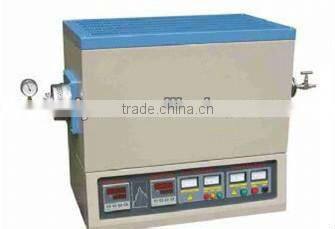

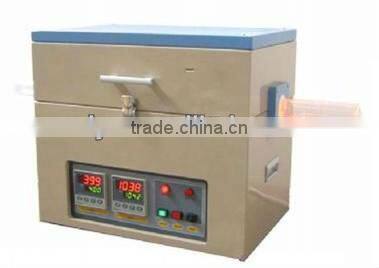

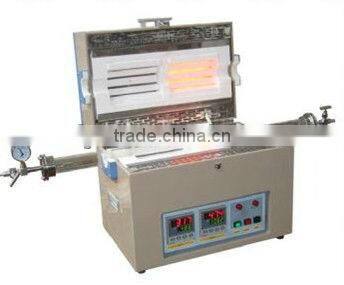

SYXD-MZT Multi-Zones heating Tube stove
SYXDMZT tube furnace is controlled by two precision 30 segments digital temperature controllers independently. .
One zone is heated by MoSi2 elements up to 1600.C , and another zone is heated by SiC element up to 1300.C , So
the tube furnace can create various thermal gradient by adjust two zone temperature. It is excellent furnace to
prepare functional materials under thermal gradient, and also can be used for epitaxial film growth by CVD or PVD
with a vacuum system.
Technical parameter:
Inside Chamber Size | dia60x300mm( dia2.5" x 12") |
Standard Working Temperature | 1500.C ( continuous ) |
Maximum Working Temperature | 1600.C ( < 3 hrs) |
Temperature Control | 30 steps programmable and PID automatic control |
Heating Rate | 0~10.C / min (suggestion: =< 10.C) |
Temperature Accuracy | + 1.C |
Heating Element | MoSi2 heating elements |
Vacuum Level | 0.1 Torr |
Working Voltage | AC 220V Single Phase 60/50 Hz (or according to your requirement) |
Max. Power | 8 KW |
Net Weight | 230 Kg |
Note: The furnace tube is High purity Al2O3 ceramic
Dia60mm means outer diameter, inner diameter is about 52mm
300mm means the length of hot zone
Total length is 1000mm
One zone reach 1600.C, and another reach 1300.C.
Standard Sizes:
Model | Chamber size | Temperature Range |
XD-MZT | Dia40x300mm (1.5"x12") | 1000-1600.C |
XD-MZT | Dia40x450mm (1.5"x18") | 1000-1600.C |
XD-MZT | Dia60x300mm (2.5"x12") | 1000-1600.C |
XD-MZT | Dia60x450mm (2.5"x18") | 1000-1600.C |
XD-MZT | Dia80x300mm (3.0"x12") | 1000-1600.C |
XD-MZT | Dia80x450mm (3.0"x18") | 1000-1600.C |
XD-MZT | Dia100x450mm (4.0"x18") | 1000-1600.C |
