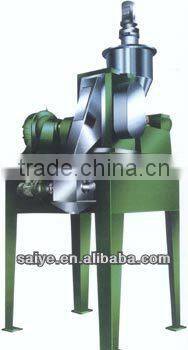

SYZL series dry type granulating machine
The characteristics:
Dry granulating directly, without any binder.
The strength of the particles can be adjusted.By adjusting the pressure control of roll the strength of the particles.
Products for sand irregular granular particles.
Continuous production, large production capacity, high degree of automation, suitable for industrial production.
Granulation of low cost.
Range of application
Except extrusion friction can cause explosion of dangerous goods, the unit for most of the dry powder material can be directly granulating.Through rotary joints to water roll, the unit can also be for granulating heat-sensitive materials.
Technical parameters:
Model |
SYZL240-100 |
SYZL280-120 |
SYZL360-160 |
SYZL450-200 |
SYZL640-260 |
Roller diameter(mm) |
φ240 |
φ280 |
φ360 |
φ450 |
φ640 |
Roller width(mm) |
100 |
120 |
160 |
200 |
260 |
Maximum forming pressure(t) |
50 |
60 |
80 |
100 |
130 |
Roller speed(rpm) |
16-30 |
16-30 |
16-30 |
16-24 |
16-24 |
Flaking thickness(mm) |
250-500 |
500-900 |
700-2000 |
1000-4000 |
2000-7400 |
Flaking production(kg/h) |
4 |
5 |
6 |
8 |
8 |
Product output(mm) |
125-250 |
250-450 |
350-1000 |
500-2000 |
100-3700 |
Product particle size (mm) |
0.2-5 |
0.2-5 |
0.2-8 |
0.2-8 |
0.2-8 |
Main motor power(kw) |
7.5 |
15 |
30 |
45 |
75 |
Total power(kw) |
15 |
22 |
40 |
55 |
90 |
|
Dimension (mm) (length×width×height) |
1500*1500*2500 |
1800*1600*3000 |
2000*2000*4000 |
2400*2400*5200 |
2800*2600*6000 |
Total weight (t) |
7 |
8 |
10 |
14 |
20 |
