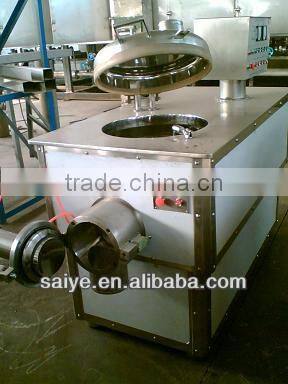

SYL high speed mixing granulator
Working principle:
At the bottom of the powder material and adhesive in a cylindrical container by mixing oar mix into wet soft wood, and then by the side of wet crushing blade cut into uniform particles.
Features:
The machine adopts horizontal cylinder structure, the structure is reasonable.
Weather the drive shaft sealing and can switch to water during cleaning.
Approximate spherical fluidized granulation, granulating, liquidity is good.
Compared with traditional process, 25% of adhesive can be reduced, the drying time shortened.
Two minutes of each batch dry mixing, granulation, 1-4 minutes, 4, 5 times higher than that of traditional process efficiency.
In the same sealed container, dry mixing, wet mixing granulating process, conform to the requirements of GMP.
Technical parameters:
Name |
Model | |||||||
SYL10 | SYL50 | SYL150 | SYL200 | SYL250 | SYL300 | SYL400 | SYL600 | |
Volume (L) | 10 | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
Capacity (kg/batch) | 3 | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
Mix speed (r.p.m) | 300/600 | 200/400 | 180/270/ | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
Mix power (kw) | 1.5/2.2 | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
Cutting speed(r.p.m) | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
Cutting power(kw) | 0.85/1.1 | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
Compressed air consumption(m3/min) | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
