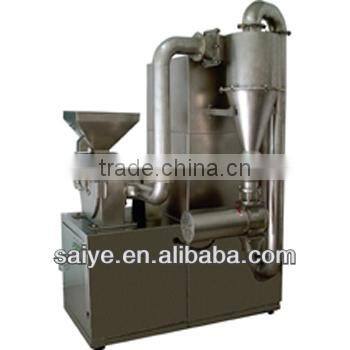

Chinese herbal medicine high effective crushing machine
Product introduction:
The unit is suitable for pharmaceutical, foodstuff and chemical industry, etc.With air cooled, no screen and so on a variety of properties, it is not affected by material viscosity, hardness, and fiber limit, can have better crushing effect for any material.Especially suitable for crushing with fiber of Chinese herbal medicine, with some oily materials.
The principle:
This machine consists of feed hopper, hierarchical wheel, grinding blades, gear ring, crushing machine, discharging mouth, the wind leaf, aggregate box, dust collector and other parts, material is fed into the crushing chamber, crushed by high speed rotating blade, adjust the grading wheel and the rating plate distance to achieve the required material fineness, high-speed rotating blades to meet the requirements of the material from the crushing chamber to set container bag, no continue to meet the requirements of material crushed in the crushing chamber, the set of container bag dust collected by dust collector, the unit in accordance with the "GMP" standard design.
Technical parameters:
Specifications |
200 |
300 |
400 |
Capacity (kg/h) |
10-150 |
20-300 |
50-500 |
Feedstock particle size(mm) |
≤5 |
≤12 |
≤15 |
Crushing fineness (mm) |
20-250 |
||
Crushing power(kw) |
5.5 |
7.5 |
11 |
Duster power(kw) |
1.5 |
2.2 |
3 |
Dimension(mm) |
1000*800*1600 |
1200*850*1780 |
1500*900*1950 |
Weight(kg) |
320 |
550 |
680 |
