SYSJ series coarse crusher
USES:
This machine is suitable for pharmaceutical, chemical, metallurgy, food, construction and other industries.The hard grinding material processing, including plastic, copper pieces, Chinese herbal medicine, rubber, etc, can also serve as micro pulverizer, superfine mill as supporting equipment before processing.
Features:
The machine is to use vertical crushing mechanism, without being limited by the material viscosity, hardness, softness and so on, can have better crushing effect for any material.

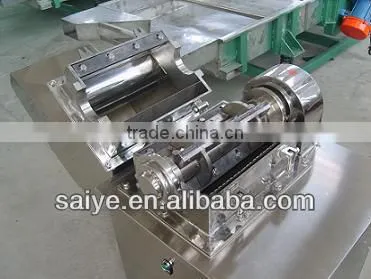

Material is feed into the crushing chamber, by the impact of the blade and sword, rotating and stationary knife cut pieces at the same time, due to the effect of rotating centrifugal force, automatic material flowing from the exit.
Technical parameters:
Model |
SYSJ-250 |
SYSJ-500 |
Feed particle size(mm) |
≤100 |
≤100 |
Discharging particles(mm) |
0.5-20 |
0.5-20 |
Mainshaft speed(r.p.m) |
940 |
1000 |
Power(Kw) |
4 |
11 |
Capacity(Kg/h) |
50-300 |
80-800 |
Dimension(mm) |
860*650*1020 |
1120*1060*1050 |
Note: due to the differences and required raw materials, production in the table are for reference only. | ||
