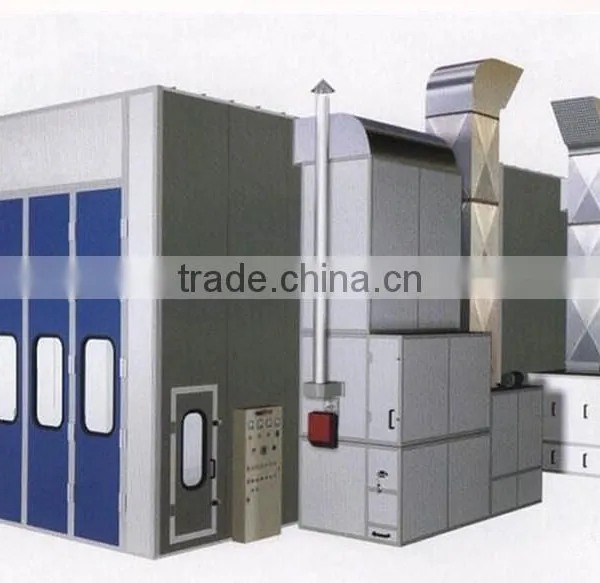

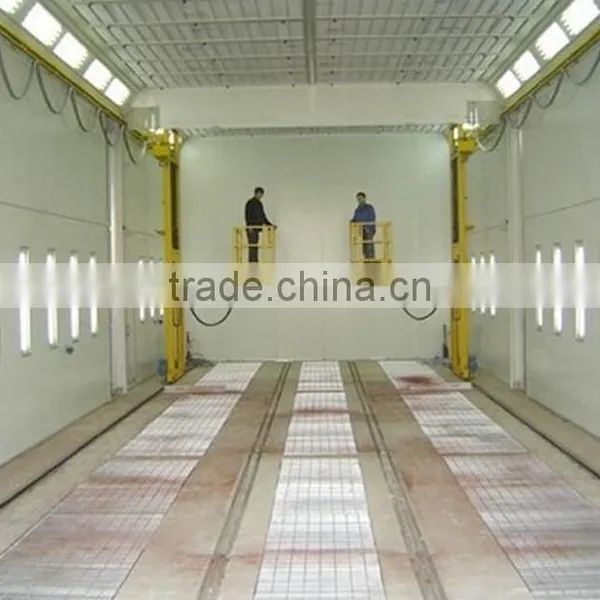

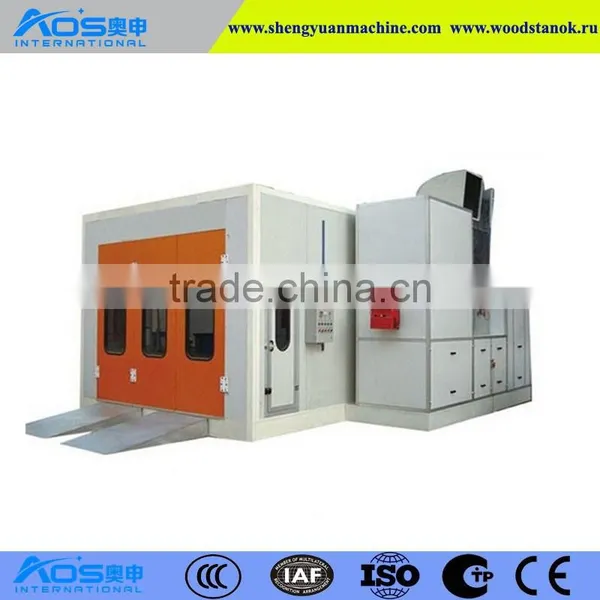

Infrared Bus Painting Room Large-scale Electrical Spray Booth For Sale 14m Length
Large-scale Electrical Spray Booth
We can design and produce kinds of spray boothes which mainly according to client requiremnts, so please tell me your requirements if you have different need.
Dimension:
Inside 14000×6000×5000(mm) L×W×H ; Outside 14150×7450×5600(mm) L×W×H
Pit:

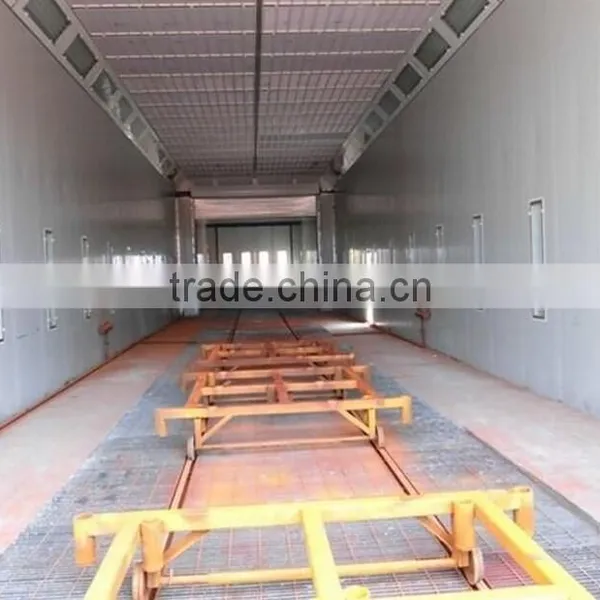

Without basement ,exhaust air from pit in the ground ,2 rows of pits in the ground for exhaust air,dimension of each pit is 13000*750mm (L×W)
Door:
Main Door :4-folds, 4000×4500(mm) W×H ; Personal Door:2 units, 600×2000(mm) W×H,insulation is polystyrene.
Room body:
3 units supporting steel in the wall and 3 units profiled bar beams in the roof to strengthen the room body ;
wall panel thickness : 75mm , tongue and groove structure , made by 0.476mm color steel with polystyrene inside.

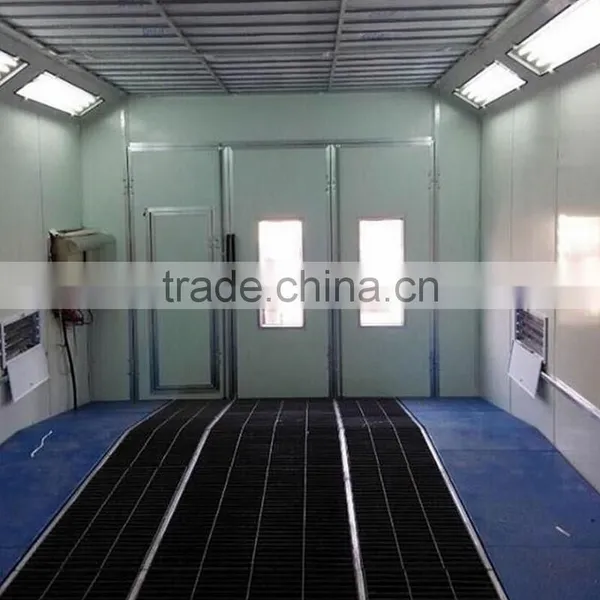

Lighting:
Ceiling lights : 16 units×4pcs×16W ; Side lights : 12 units×4pcs×16W , vertical (left side 6 units , right side 6 units ,rear side 2 units).
Generator Setting type:
Intake air from side upper direction,exhaust air from back upper direction, quadrate steel frame, outside is white coated steel,
inside is galvanized steel.
Intake air fan:
In total 2*11KW turbo fans for intake air, air capacity:33000m³/h for each fan.
Exhaust air fan:
In total 2*11KW turbo fans for exhaust air, air capacity:33000m³/h for each fan.
Heating system:
24units infrared ray lamps, 36*3kw.
Filter system:
Pre-filter, high efficiency filter(Ceiling filter), fiberglass filter, M-shape activated carbon filter, extract fiberglass filter replaced by level side.
Control System:
Spraying, time setting, emergency stop,power supply switch, lighting switch, ,failure indicator,time accumulator.
Power supply : 380V/3Ph/50HZ ; Free air speed:≥0.25m/s; Illuminance:≥800 LUX ; Total Power:155 kw.
