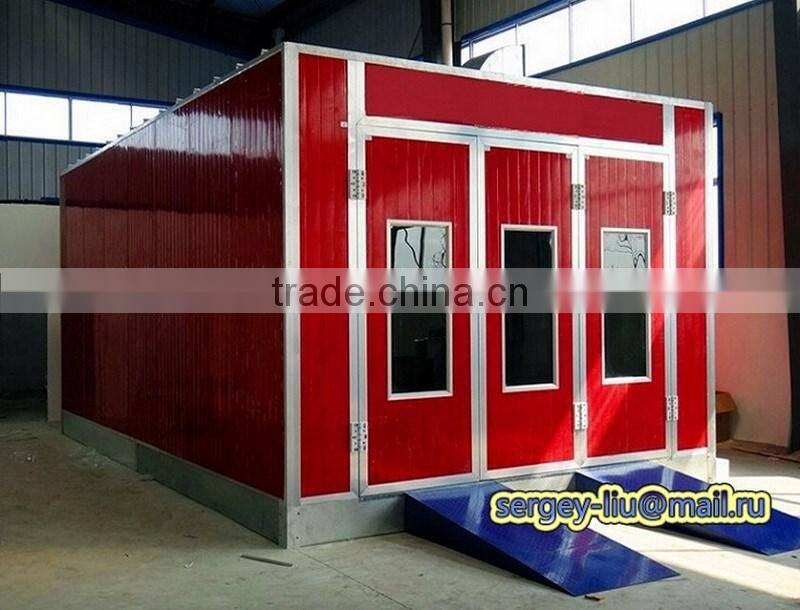

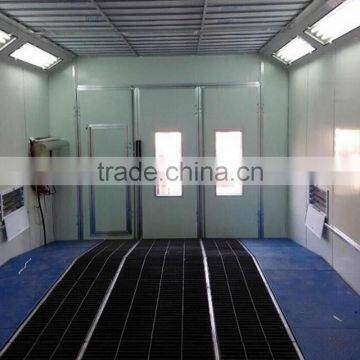

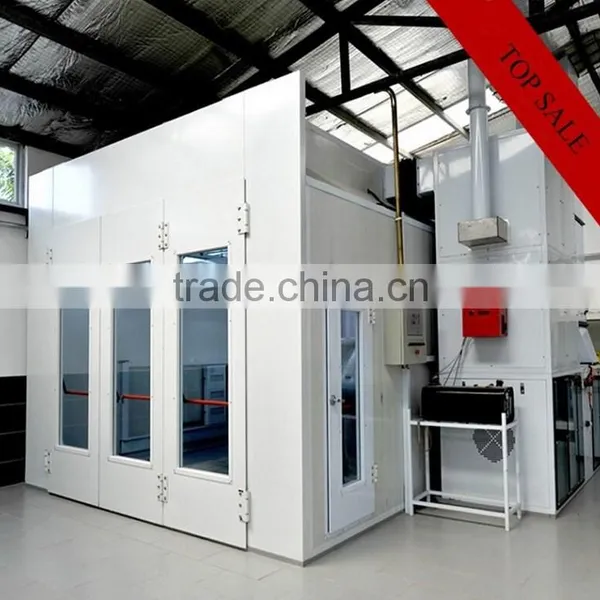

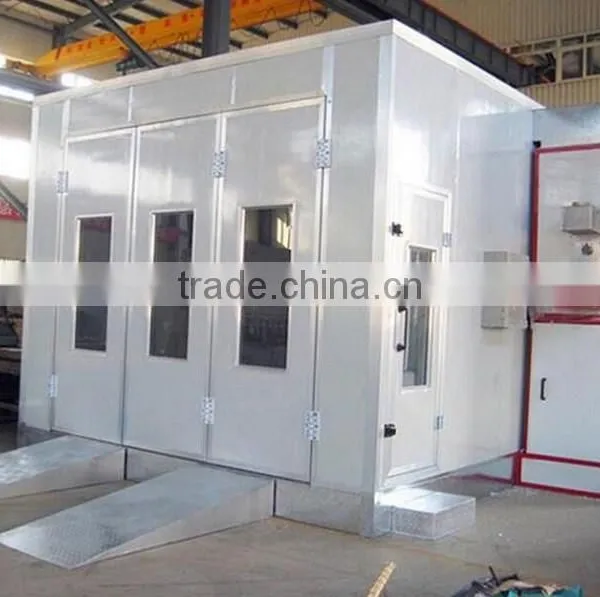

Car Paint Baking Finishing House Painting Room

Specification of Spray booth:

Inside dimension

7200*3900*2700mm

Outside dimension

7350*5350*3470mm

Main door

3-folds,2800×2500mm

Personal door

1 fold, 600×2000mm

Wall panels

EPS double-ply plate, tongue and groove construction thickness: 75mm

Basement and floor

Galvanized steel assemble, height is 300mm,full grill floor,

3 pcs ramps,900×2000mm(W×L)

Lighting

Ceiling lights:8 units×3pcs=24pcs×36W;side lights: 10 units×2pcs=20pcs×36W

Generator setting type

Back upper intake air,  powder quadrate steel frame, coated steel

Intake air fan

2*4KW double-intake centrifugal fans, air capacity:24000m³/h

Exhaust air fan

1*7.5KW double-intake centrifugal fan, air capacity:18000m³/h

Heating system

1 set:RIELLO G20 oil burner, heating productivity:200000Kcal/h,

stainless steel heat ex-changer, with anti-explosion hole for protection, working temperature:80℃,

electric damper from spraying to baking cycle

Filter system

Intake air:pre-filter, high efficient filter(ceiling filter), Exhaust air:fiber glass filter,

 exhaust activated carbon filter

Control system

Lighting switch,spraying,risen-temperature spraying,  baking temperature controller, time setting,emergency stop,

 temperature limit controller,time accumulator

Total power

15KW
