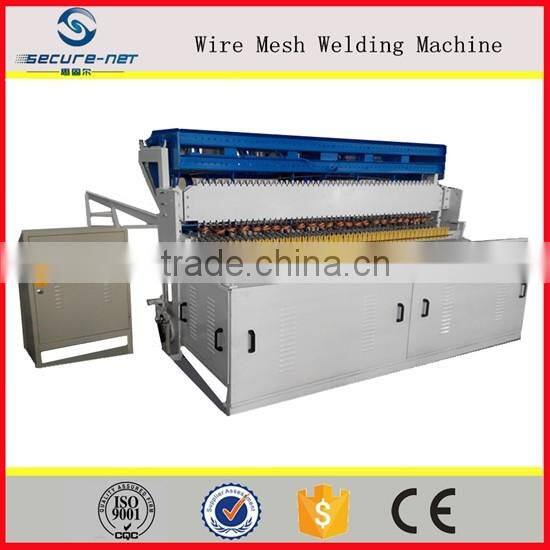

China Supplier 2.5-5mm CNC Automatic Fence Mesh Used Welded Wire Mesh Machine and Equipment(ISO)

China supplier 2.5-5mm CNC automatic fence mesh used welded wire mesh machine and equipment(ISO)

 China supplier CNC used welded wire mesh machine

Main parameter:

Wire diameter:2.5-5mm

Welding aperture:50*50-300*300mm

Welding width:2500(mm)

Number of electrodes:48

Welding speed :45times/min

Rated voltage:AC380V 50Hz

Rated power:800KVA

Machine weight:3.5T

Overall dimension:9*3.2*1.7(m)

China supplier CNC  used welded wire mesh machine

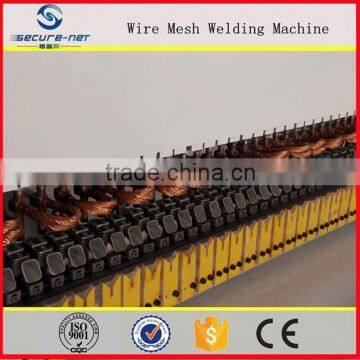

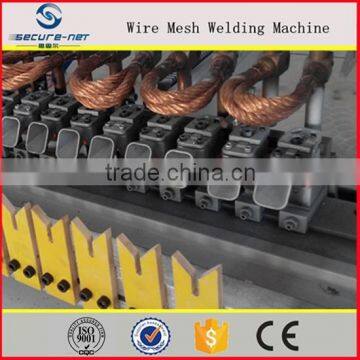

Welding power

The welding power comes from the spring. It is easily to control the welding pressure, more over ten times than the traditional hopper.

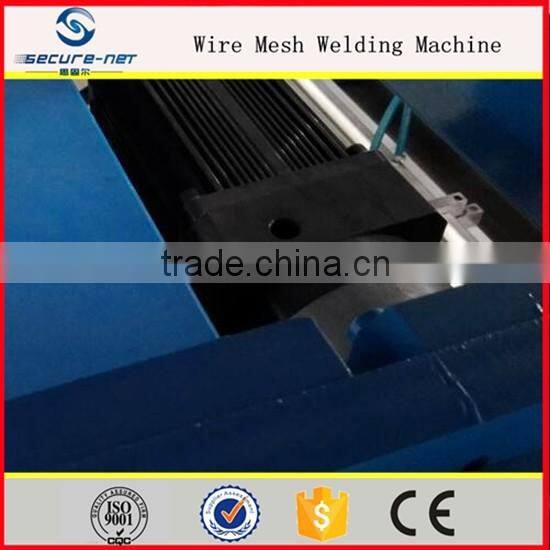

Feeding system

The cross wire feeding is automatic and driven by step motor, which makes the cross wire falling and mesh aperture size more accurate.

Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by automatic straightening and cutting machine, which become cross wire. Then worker put the cross wires into wire hopper. Wire hopper under the control of air pump, air pressure control cross wire automatic falling one by one.

Line wire feeding: line wires are the same to cross wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then workers let the warp wires through the hole, the welding begin.

Controlling system

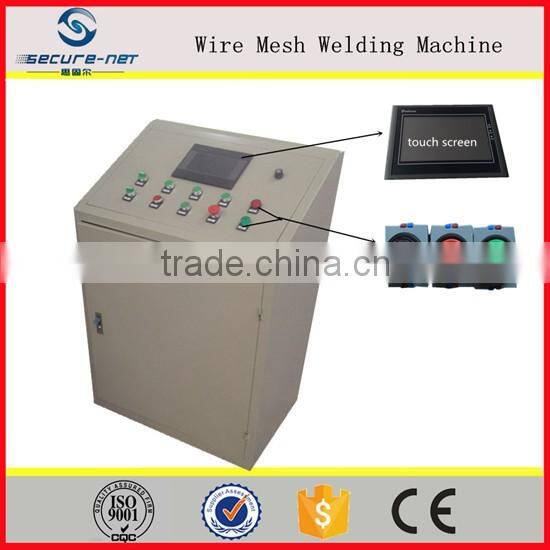

The China supplier used welded wire mesh machine  uses synchronous control technique, welding time and separate welding adopt Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, and it can weld different size mesh on the same wire mesh panel.

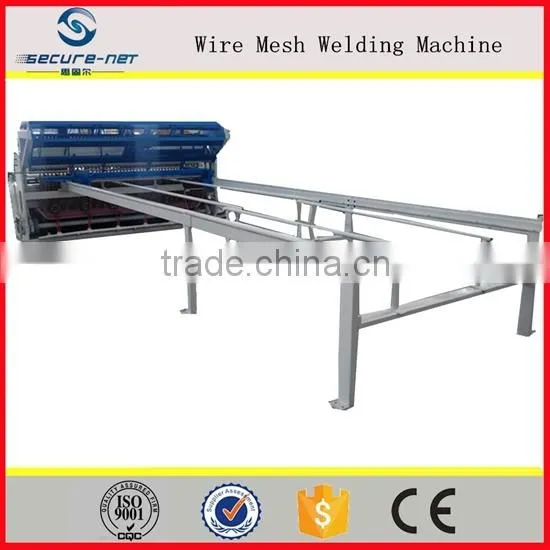

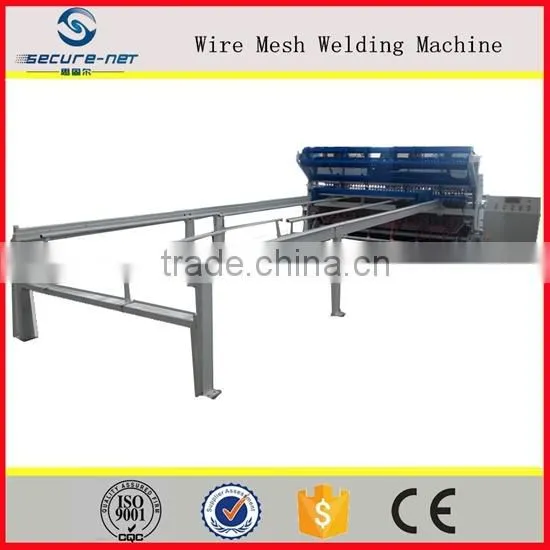

Mesh pulling system

The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.

 China supplier CNC  used welded wire mesh machine

Standard accessory

(1)    Automatic Straightening and Cutting Machine : two sets

(2)    Wire Tray :two pieces

 China supplier CNC used welded wire mesh machine

Application

Fencing mesh(highway,railway),construction mesh and etc.

China supplier CNC used welded wire mesh machine

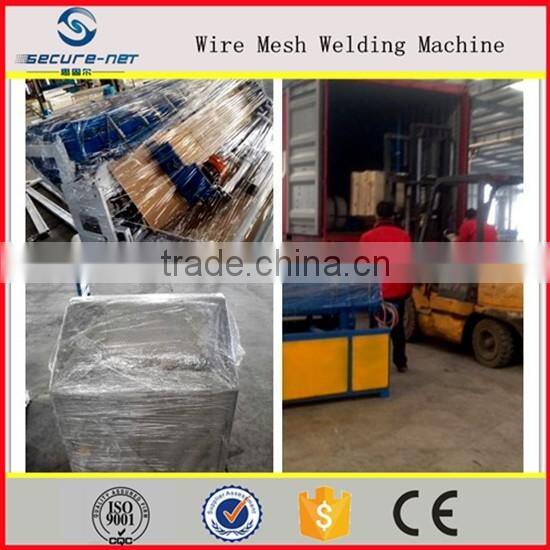

Packing and shipping

1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is nude packing or plastic packing.

China supplier CNC used welded wire mesh machine

Our service

1.If the buyers need, we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination port
2.Maintenance period :one year for whole machine except vulnerable parts
3.The numbers of technical persons: one technical per machine
4.The fees: the buyer have to pay the technical salary 100 USD per day, and the round-trip ticket, accommodation and other related fees.

During the maintenance period , if the parts are broken caused by the product problem, seller will offer the parts for free, if you need we assign the technicians to your factory, then you will pay some related fees.
