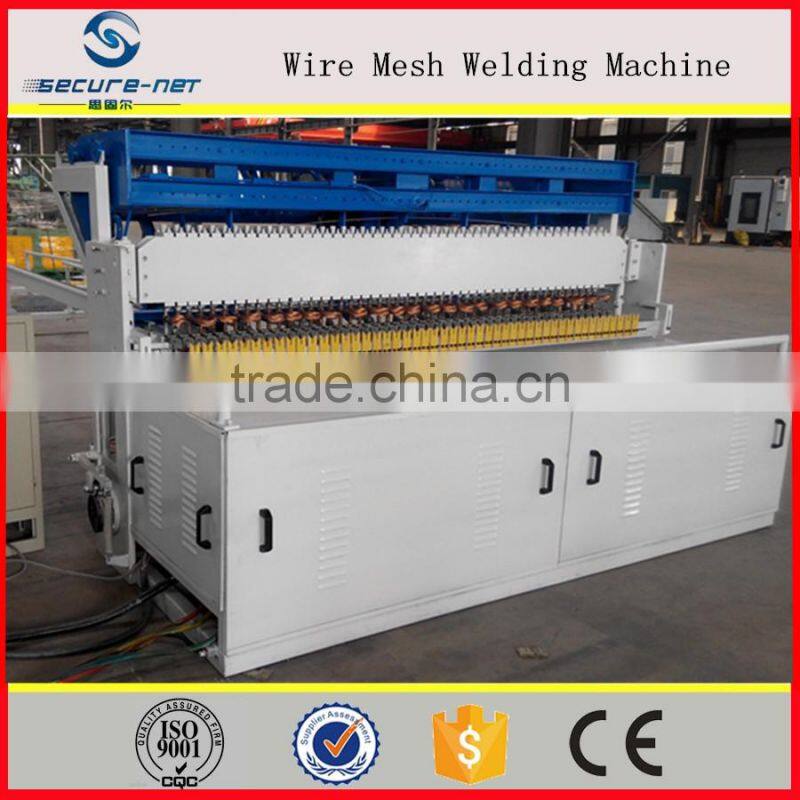

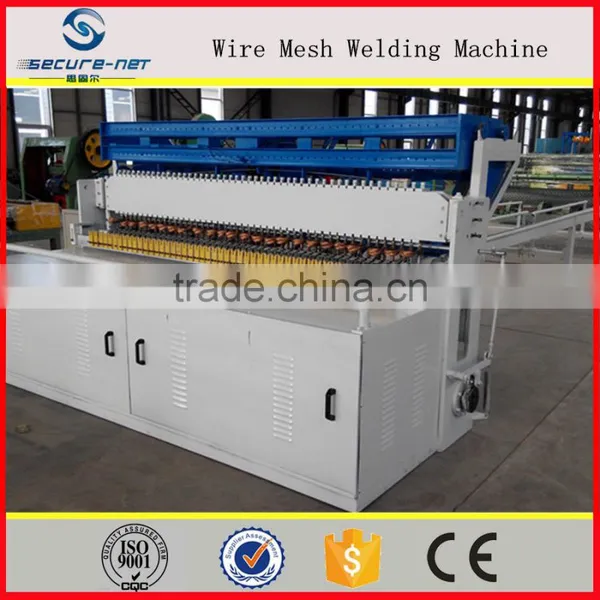

2016 Hot sale automatic welding wire mesh machine
The main parameter
| Wire diameter | 2.5-5mm |
| Welding aperture | 50*50-300*300mm |
| Width of mesh | 1000-3000mm(Customized) |
| Number of electrodes | 48(adjustable) |
| Welding speed | 45times/min(adjustable) |
| Machine weight | 3.5T |
| Rated power | 800KVA |
| Rated voltage | 380V(Customized) |
| Overall dimension | 9*3.2*1.7m(Customized) |
Product description
1.This equipment adopts synchronous control technology,separate-phase welding and welding time is composed of digital programming of PLC system .There are two kinds of tablet PC input panel,One kind is touch panel ,another is Keyboard .The operation is more intelligent and rationalization.
2.The machine can press the panel tightly once , and weld by several times .On the same panel,this machine can weld 30 kinds of different size of meshs between weft and weft.That is the biggest advantages of this machine.
3.The machine adopts new type of high efficient welding transformer ,greatly expand the scope of welding diameters.(This wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).

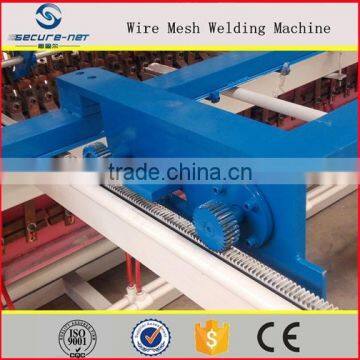

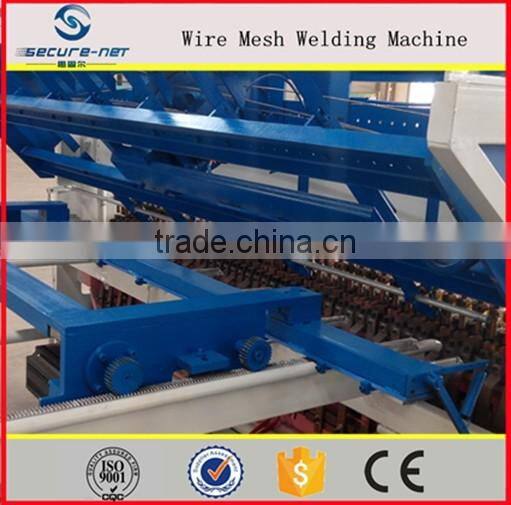

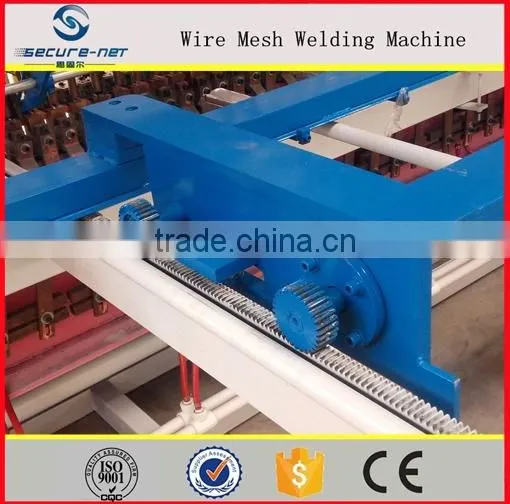

4.The mesh panel pulling part and the hopper is controled by the 16N stepper motor,and the steeper is working through the stepper motor drives.

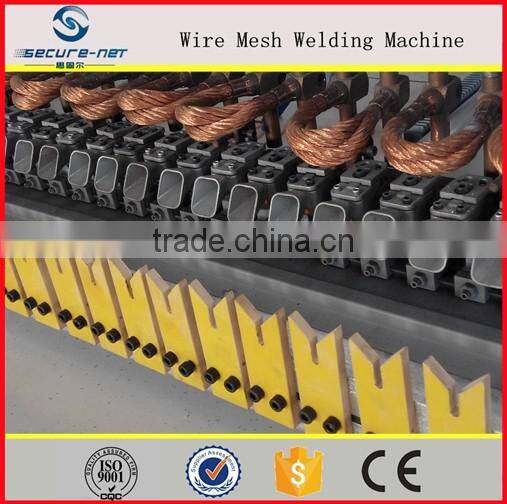

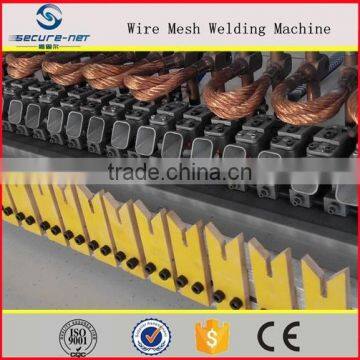

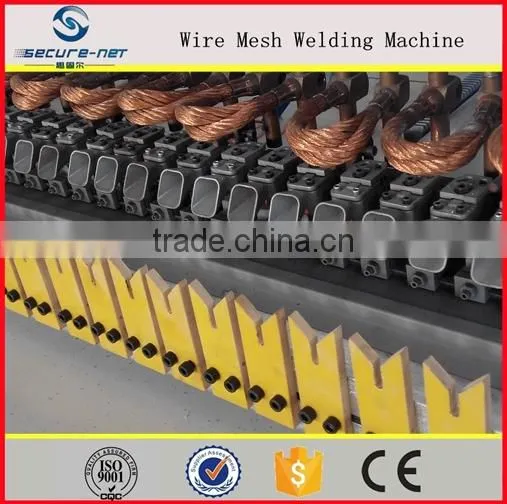

5.Electrodes, the lower seat and copper platoon is copper material,and the electrode block is chromium zirconium copper material.
6.Wear silk part wear silk by bell mouth, make artificial device more simple, convenient, equipped with dovetail positioning device, effectively reduces the error of the diagonal mesh.
Auxiliary equipment
Straightening cutting machine

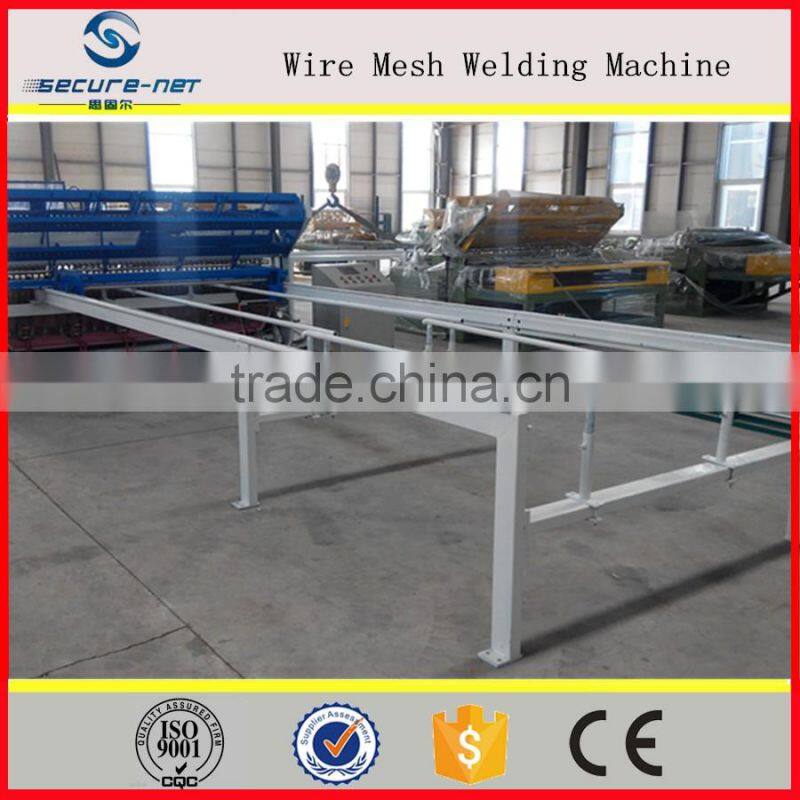

Wire feeding plate
Application:

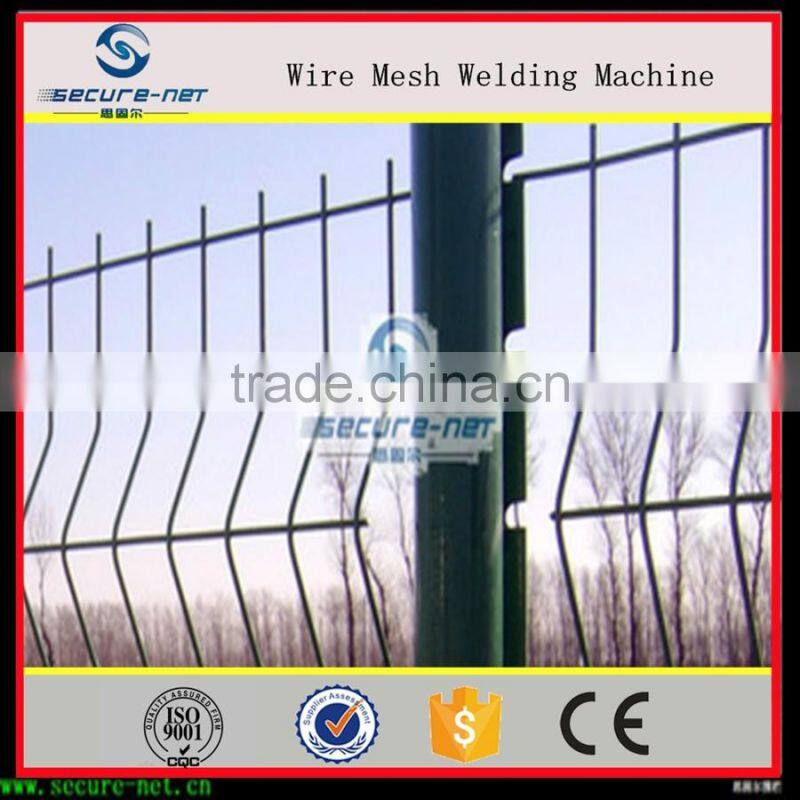

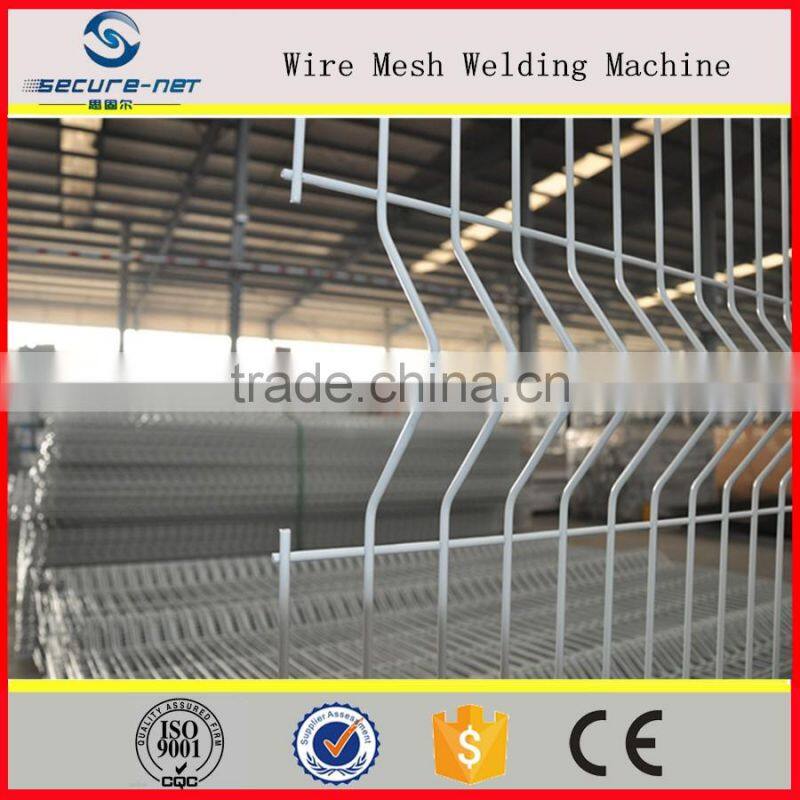

Wire mesh panel for fence and casing buling roof .
Host with plastic film packaging, numerical control cabinet packed in wooden cases.
Our Services
1 .Maintenance period:one year
2.If the buyers need, we can send our technical staff to the buyers’ place to
debug the machine and providing the training in 30 days after the machines
arrive at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will
assign the expertised staff to your company. And the fees,such as round-trip
tickets, accomodation etc, are all in your account.
